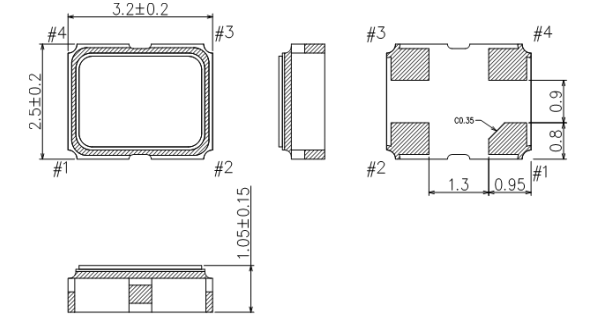

外部尺寸： 2.5× 2.0 mm（SG-8018CG）; 3.2× 2.5 mm（SG-8018CE）
5.0× 3.2 mm（SG-8018CB）; 7.0× 5.0 mm（SG-8018CA）
输出频率：0.67 MHz to 170 MHz (1 × 10-6 Step)
电压：1.6V to 3.63V，输出：CMOS，工作温度：-40°C to +105 °C；功能： Output enable (OE) or Standby (/ST)
利用PLL技术，写入频点参数，快速交货

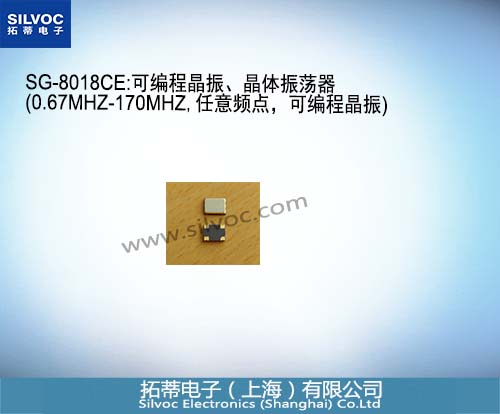

SG-8018CE (0.67-170MHZ)：爱普生可编程晶振
规格型号 | 产品编码 | MOQ (PCS) |
SG-8018CE MP Blank | X1G005591000200 | 2000 |
爱普生(EPSON)可编程晶振：SG-8018CG、SG-8018CE、SG-8018CB、SG-8018CA
可编程晶振: SG-8018CG、SG-8018CE、SG-8018CB、SG-8018CA，CMOS输出，供电电压是1.62V ~ 3.63V，工作温度可以达到-40℃至+105℃，符合工业级温度要求。
l 外部尺寸： 2.5× 2.0 mm（SG-8018CG）、
3.2× 2.5 mm（SG-8018CE）、
5.0× 3.2 mm（SG-8018CB）、
7.0× 5.0 mm（SG-8018CA）
l 输出频率：0.67 MHz to 170 MHz (1 × 10-6 Step)
l 电压：1.6V to 3.63V
l 功能：Output enable (OE) or Standby (/ST)
l 输出：CMOS
l 工作温度：-40 °C to +105 °C
l 利用PLL技术，写入频点参数，快速交货
l 物联网
l 仪器仪表
l 医疗、工业自动化等
l IoT
l Medical, Industrial automation
爱普生的SG-8018CG、SG-8013CE、SG-80118CB、SG-80018CA系列是具有CMOS输出的可编程晶体振荡器系列。虽然该系列与早期的SG-8002/SG-8003系列具有相同的频率和其他参数的易编程性，但它们的工作温度范围更广，最高极限为105°C。除了2.5×2.0 mm的封装可以使电子制造商节省电路板空间外，振荡器还可以采用以下流行的封装尺寸：3.2×2.5 mm、5.0×3.2 mm和7.0×5.0 mm。与同类产品相比，SG-8018系列振荡器的频率容差约为66%，电流消耗约为50%，可在多种环境条件下使用。这也将大大有助于提高性能、降低功率需求、加快开发周期和小批量生产。
规格 (特征)
项目 | 符号 | 规格说明 | 条件 | ||||||||||
电源电压 | VCC | 1.80 V Typ. | 2.50V Typ. | 3.30V Typ. | |||||||||
1.62 to 1.98V | 1.98 to 2.20V | 2.20 to 2.80V | 2.70 to 3.63 V | ||||||||||
输出频率范围 | f0 | 0.67 MHz to 170 MHz | |||||||||||
储存温度 | T_stg | -40°C to +125°C | Storage as single product. | ||||||||||
工作温度 | T_use | H: -40°C to +105°C | |||||||||||
频率稳定度 *1 | f_tol | J: ±50 × 10-6 | T_use= -40°C to +105°C | ||||||||||
功耗 | ICC | 3.2mA Max. | 3.3mA Max. | 3.4mA Max. | 3.5mA Max. | T_use=+105°C | No load | ||||||
2.7mA Typ. | 2.9mA Typ. | 3.0mA Typ. | T_use=+25°C | ||||||||||
5.5mA Max. | 5.8mA Max. | 6.7mA Max. | 8.1mA Max. | T_use=+105°C | No load | ||||||||
4.7mA Typ. | 5.7mA Typ. | 6.8mA Typ. | T_use=+25°C | ||||||||||
输出禁用电流 | I_dis | 3.2mA Max. | 3.2mA Max. | 3.3mA Max. | 3.5mA Max. | OE=GND , f0 = 170 MHz | |||||||
待机电流 | I_std | 0.9μA Max. | 1.0μA Max. | 1.5μA Max. | 2.5μA Max. | T_use=+105°C | ST = GND | ||||||
0.3μA Typ. | 0.4μA Typ. | 0.5μA Typ. | 1.1μA Typ. | T_use= +25°C | |||||||||
占空比 | SYM | 45% to 55% | 50% VCC Level | ||||||||||
输出电压 | VOH | 90% VCC Min. | [mA] | ||||||||||
tr / tf | VCC | A | B | C | D | ||||||||
Default | IOH | -2.5 | -3.5 | -4.0 | -5.0 | ||||||||
IOL | 2.5 | 3.5 | 4.0 | 5.0 | |||||||||
Default | IOH | -1.5 | -2.0 | -2.5 | -3.0 | ||||||||
VOL | 10% VCC Max. | IOL | 1.5 | 2.0 | 2.5 | 3.0 | |||||||
Slow | IOH | -1.0 | -1.5 | -2.0 | -2.5 | ||||||||
IOL | 1.0 | 1.5 | 2.0 | 2.5 | |||||||||
A: 1.62 to 1.98 V , B: 1.98 to 2.20 V | |||||||||||||
输出负载条件 | L_CMOS | 15pF Max. | |||||||||||
输入电压 | VIH | 70% VCC Min. | OE or ST | ||||||||||
VIL | 30% VCC Max. | ||||||||||||
上升/下降时间 | 默认 | tr / tf | 3.0 ns Max. | f0 > 40MHz | 20% VCC to 80% VCC | ||||||||
6.0 ns Max. | f0 ≦ 40MHz | ||||||||||||
快速 | 3.0 ns Max. | f0=0.67to170MHz | |||||||||||
缓慢 | 10.0 ns Max. | f0=0.67to20MHz | |||||||||||
禁用时间 | t_stp | 1 μs Max. | Measured from the time OE or ST pin crosses 30 % VCC | ||||||||||
启用时间 | t_sta | 1 μs Max. | Measured from the time OE pin crosses 70 % VCC | ||||||||||
恢复时间 | t_res | 3 ms Max. | Measured from the time ST pin crosses 70 % VCC | ||||||||||
振荡器启动时间 | t_str | 3 ms Max. | Measured from the time VCC reaches its rated minimum value, 1.62 V | ||||||||||
频率老化 | f_aging | This is included in frequency tolerance specification | +25°C, 10 years | ||||||||||
*1频率容差包括初始频率容差、温度变化、电源电压变化、回流漂移、负载漂移和老化（+25°C，10年）。
Pin | Name | I/O type | Function | |
1 | OE | Input | Output enable | 高：OUT引脚的指定频率输出 低：输出引脚低（弱下拉），只有输出驱动器被禁用。 |
ST | Input | Standby | 高：OUT引脚的指定频率输出 低：输出引脚低（弱下拉） 设备进入待机模式。电源电流降低至the least值I_std。 | |
2 | GND | Power | Ground | |
3 | OUT | Output | Clock output | |
4 | VCC | Power | Power supply | |
*2请不要在打开状态下使用OE/S̅T̅终端。
SG-8018系列晶振产品名称参数：
(1) Product Name (Standard Form)
SG-8018CE 25.000000MHZ T JH P A
① ② ③ ④ ⑤⑥⑦⑧
①Model ②Size ③Frequency ④Supply voltage (T: 1.8 V to 3.3 V Typ.)
⑤Frequency tolerance
⑥Operating temperature (JH: ±50 × 10-6 / -40 °C to +105 °C)
⑦Function ⑧Rise time / Fall time
②Size | |
CG | 2.5 mm × 2.0 mm |
CE | 3.2 mm × 2.5 mm |
CB | 5.0 mm × 3.2 mm |
CA | 7.0 mm × 5.0 mm |
⑦Function | |
P | Output enable (#1pin = OE) |
S | Standby (#1pin = S̅T̅) |
⑧Rise time / Fall time | |
A | Default |
B | Fast |
C | Slow |
（2）产品料号：
Product Number (Blank section is decided by each detail specifications.)
SG-8018CG X1G005601xxxx00
SG-8018CE X1G005591xxxx00
SG-8018CB X1G005581xxxx00
SG-8018CA X1G005571xxxx00
① ② ③ ④⑤
① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）
④ Detail specifications ⑤ Packing（00：Recommended packing 1K pcs/Reel）
（3） 空白片料号
SG-8018CG MP Blank: X1G005601000200
SG-8018CE MP Blank: X1G005591000200
SG-8018CB MP Blank: X1G005581000200
SG-8018CA MP Blank: X1G005571000200
① ② ③ ④ ⑤
① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）
④ Detail specifications
⑤ Packing（00：Recommended packing CA / CB:1K pcs/Reel, CE:1K pcs/Reel, CG:3K pcs/Reel）
为了保持稳定运行，在尽可能靠近晶体产品电源端子的位置（VCC-GND之间）提供0.1µF旁路电容器。
SG-8018CE常用频点列表如下：
规格型号 | 产品编码 | MOQ (PCS) |
SG-8018CE MP Blank | X1G005591000200 | 2000 |
SG-8018CE 25.000000MHz TJHPA | X1G005591001100 | 2000 |
SG-8018CE 25.000000MHz TJHSA | X1G005591001200 | 2000 |
SG-8018CE 20.000000MHz TJHPA | X1G005591001300 | 2000 |
SG-8018CE 20.000000MHz TJHSPA | X1G005591001400 | 2000 |
SG-8018CE 50.000000MHZ TJHPA | X1G005591001500 | 2000 |
SG-8018CE 50.000000MHZ TJHSA | X1G005591001600 | 2000 |
SG-8018CE 48.000000MHz TJHPA | X1G005591001700 | 2000 |
SG-8018CE 48.000000MHz TJHSA | X1G005591001800 | 2000 |
SG-8018CE 24.000000MHz TJHPA | X1G005591001900 | 2000 |
SG-8018CE 24.000000MHz TJHSA | X1G005591002000 | 2000 |
SG-8018CE 40.000000MHz TJHSA | X1G005591002100 | 2000 |
SG-8018CE 40.000000MHz TJHPA | X1G005591002200 | 2000 |
SG-8018CE 16.000000MHz TJHPA | X1G005591002300 | 2000 |
SG-8018CE 16.000000MHz TJHSA | X1G005591002400 | 2000 |
SG-8018CE 12.000000MHz TJHPA | X1G005591002500 | 2000 |
SG-8018CE 12.000000MHz TJHSA | X1G005591002600 | 2000 |
SG-8018CE 10.000000MHz TJHPA | X1G005591002700 | 2000 |
SG-8018CE 10.000000MHz TJHSA | X1G005591002800 | 2000 |
SG-8018CE 27.000000MHz TJHPA | X1G005591002900 | 2000 |
SG-8018CE 27.000000MHz TJHSA | X1G005591003000 | 2000 |
SG-8018CE 32.000000MHz TJHPA | X1G005591003100 | 2000 |
SG-8018CE 32.000000MHz TJHSA | X1G005591003200 | 2000 |
SG-8018CE 8.000000MHz TJHPA | X1G005591003300 | 2000 |
SG-8018CE 8.000000MHz TJHSA | X1G005591003400 | 2000 |
SG-8018CE 14.745600MHz TJHPA | X1G005591003500 | 2000 |
SG-8018CE 14.745600MHz TJHSA | X1G005591003600 | 2000 |
SG-8018CE 12.288000MHz TJHPA | X1G005591003700 | 2000 |
SG-8018CE 12.288000MHz TJHSA | X1G005591003800 | 2000 |
SG-8018CE 33.000000MHz TJHPA | X1G005591003900 | 2000 |
SG-8018CE 33.000000MHz TJHSA | X1G005591004000 | 2000 |
SG-8018CE 30.000000MHz TJHPA | X1G005591004100 | 2000 |
SG-8018CE 30.000000MHz TJHSA | X1G005591004200 | 2000 |
SG-8018CE 26.000000MHz TJHPA | X1G005591004300 | 2000 |
SG-8018CE 26.000000MHz TJHSA | X1G005591004400 | 2000 |
SG-8018CE 24.576000MHz TJHPA | X1G005591004500 | 2000 |
SG-8018CE 24.576000MHz TJHSA | X1G005591004600 | 2000 |
SG-8018CE 100.000000MHz TJHPA | X1G005591004700 | 2000 |
SG-8018CE 100.000000MHz TJHSA | X1G005591004800 | 2000 |
SG-8018CE 4.000000MHz TJHPA | X1G005591004900 | 2000 |
SG-8018CE 4.000000MHz TJHSA | X1G005591005000 | 2000 |
SG-8018CE 66.000000MHz TJHSA | X1G005591005100 | 2000 |
SG-8018CE 66.000000MHz TJHPA | X1G005591005200 | 2000 |
SG-8018CE 19.660800MHz TJHPA | X1G005591005300 | 2000 |
SG-8018CE 19.660800MHz TJHSA | X1G005591005400 | 2000 |
SG-8018CE 125.000000MHz TJHPA | X1G005591005500 | 2000 |
SG-8018CE 125.000000MHz TJHSA | X1G005591005600 | 2000 |
SG-8018CE 33.333300MHz TJHPA | X1G005591005700 | 2000 |
SG-8018CE 33.333300MHz TJHSA | X1G005591005800 | 2000 |
SG-8018CE 11.289600MHz TJHSA | X1G005591005900 | 2000 |
SG-8018CE 23.040000MHz TJHPA | X1G005591006000 | 2000 |
SG-8018CE 28.636360MHz TJHSA | X1G005591006100 | 2000 |
SG-8018CE 14.430000MHz TJHPA | X1G005591006200 | 2000 |
SG-8018CE 8.439025MHz TJHPA | X1G005591006300 | 2000 |
SG-8018CE 29.491200MHz TJHPA | X1G005591006400 | 2000 |
SG-8018CE 29.491200MHz TJHPA | X1G005591006500 | 2000 |
SG-8018CE 19.660800MHz TJHPA | X1G005591006600 | 2000 |
SG-8018CE 6.000000MHz TJHSA | X1G005591006700 | 2000 |
SG-8018CE 7.680000MHz TJHPA | X1G005591006800 | 2000 |
SG-8018CE 74.250000MHz TJHSA | X1G005591006900 | 2000 |
SG-8018CE 88.888000MHz TJHPA | X1G005591007000 | 2000 |
SG-8018CE 88.888000MHz TJHSA | X1G005591007100 | 2000 |
SG-8018CE 12.500000MHz TJHSA | X1G005591007200 | 2000 |
SG-8018CE 148.500000MHz TJHSA | X1G005591007300 | 2000 |
SG-8018CE 74.250000MHz TJHSA | X1G005591007400 | 2000 |
SG-8018CE 57.272720MHz TJHSA | X1G005591007500 | 2000 |
SG-8018CE 37.125000MHz TJHSA | X1G005591007600 | 2000 |
SG-8018CE 19.200000MHz TJHPA | X1G005591007700 | 2000 |
SG-8018CE 6.005284MHz TJHPA | X1G005591007800 | 2000 |
SG-8018CE 57.209760MHz TJHPA | X1G005591007900 | 2000 |
SG-8018CE 10.000000MHz TJHPA | X1G005591008000 | 2000 |
SG-8018CE 133.000000MHz TJHPA | X1G005591008100 | 2000 |
SG-8018CE 32.400000MHz TJHPA | X1G005591008200 | 2000 |
SG-8018CE 22.579200MHz TJHPA | X1G005591008300 | 2000 |
SG-8018CE 44.236800MHz TJHPA | X1G005591008400 | 2000 |
SG-8018CE 1.000000MHz TJHPA | X1G005591008500 | 2000 |
SG-8018CE 4.915200MHz TJHPA | X1G005591008600 | 2000 |
SG-8018CE 1.843200MHz TJHPA | X1G005591008700 | 2000 |
SG-8018CE 33.333000MHz TJHPA | X1G005591008800 | 2000 |
SG-8018CE 56.602205MHz TJHPA | X1G005591008900 | 2000 |
SG-8018CE 36.810000MHz TJHPA | X1G005591009000 | 2000 |
SG-8018CE 16.384000MHz TJHPA | X1G005591009200 | 2000 |
SG-8018CE 19.922944MHz TJHPA | X1G005591009300 | 2000 |
SG-8018CE 1.200000MHz TJHPA | X1G005591009400 | 2000 |
SG-8018CE 15.000000MHz TJHPA | X1G005591009500 | 2000 |
SG-8018CE 15.000000MHz TJHPA | X1G005591009600 | 2000 |
SG-8018CE 66.666600MHz TJHPA | X1G005591009700 | 2000 |
SG-8018CE 11.059200MHz TJHPA | X1G005591009800 | 2000 |
SG-8018CE 13.000000MHz TJHPA | X1G005591009900 | 2000 |
SG-8018CE 13.560000MHz TJHPA | X1G005591010000 | 2000 |
SG-8018CE 14.318180MHz TJHPA | X1G005591010100 | 2000 |
SG-8018CE 18.432000MHz TJHSA | X1G005591010200 | 2000 |
SG-8018CE 19.200000MHz TJHSA | X1G005591010300 | 2000 |
SG-8018CE 2.048000MHz TJHPA | X1G005591010400 | 2000 |
SG-8018CE 3.686400MHz TJHPA | X1G005591010500 | 2000 |
SG-8018CE 60.000000MHz TJHPA | X1G005591010600 | 2000 |
SG-8018CE 7.372800MHz TJHSA | X1G005591010700 | 2000 |
SG-8018CE 80.000000MHz TJHSA | X1G005591010800 | 2000 |
SG-8018CE 16.666667MHz TJHPA | X1G005591010900 | 2000 |
SG-8018CE 3.580000MHz TJHPA | X1G005591011000 | 2000 |
SG-8018CE 68.146000MHz TJHPA | X1G0055910111000 | 2000 |
SG-8018CE 97.174000MHz TJHPA | X1G005591011200 | 2000 |
SG-8018CE 15.625000MHz TJHPA | X1G0055910113000 | 2000 |
SG-8018CE 1.228800MHz TJHPA | X1G005591011400 | 2000 |
SG-8018CE 45.000000MHz TJHPA | X1G005591011500 | 2000 |
SG-8018CE 28.636360MHz TJHSA | X1G005591011600 | 2000 |
SG-8018CE 28.636360MHz TJHSA | X1G005591011700 | 2000 |
SG-8018CE 81.000000MHz TJHPA | X1G005591011800 | 2000 |
SG-8018CE 31.359600MHz TJHSA | X1G005591011900 | 2000 |
SG-8018CE 9.830400MHz TJHPA | X1G005591012000 | 2000 |
SG-8018CE 9.000000MHz TJHPA | X1G005591012100 | 2000 |
SG-8018CE 2.097000MHz TJHSA | X1G005591012200 | 2000 |
SG-8018CE 6.000000MHz TJHPA | X1G005591012300 | 2000 |
SG-8018CE 11.059200MHz TJHPA | X1G005591012400 | 2000 |
SG-8018CE 15.000000MHz TJHSA | X1G005591012500 | 2000 |
SG-8018CE 148.351500MHz TJHPA | X1G005591012600 | 2000 |
SG-8018CE 2.000000MHz TJHPA | X1G005591013000 | 2000 |
SG-8018CE 33.330000MHz TJHPA | X1G005591013100 | 2000 |
SG-8018CE 3.428000MHz TJHPA | X1G005591013200 | 2000 |
SG-8018CE 18.400000MHz TJHPA | X1G005591013300 | 2000 |
SG-8018CE 19.968000MHz TJHPA | X1G005591013800 | 2000 |
SG-8018CE 4.096000MHz TJHPA | X1G005591014000 | 2000 |
SG-8018CE 66.666700MHz TJHPA | X1G005591014100 | 2000 |
SG-8018CE 66.666700MHz TJHPA | X1G005591014200 | 2000 |
SG-8018CE 9.216000MHz TJHPA | X1G005591014300 | 2000 |
SG-8018CE 6.144000MHz TJHPA | X1G005591014400 | 2000 |
SG-8018CE 7.987500MHz TJHPA | X1G005591014500 | 2000 |
SG-8018CE 25.000000MHz TJHPA | X1G005591014600 | 2000 |
SG-8018CE 9.984000MHz TJHSA | X1G005591014700 | 2000 |
SG-8018CE 7.987500MHz TJHPA | X1G005591014800 | 2000 |
SG-8018CE 16.000000MHz TJHSA | X1G005591014900 | 2000 |
SG-8018CE 66.000000MHz TJHPA | X1G005591015000 | 2000 |
SG-8018CE 11.289600MHz TJHPA | X1G0055910151000 | 2000 |
SG-8018CE 16.666670MHz TJHPA | X1G005591015200 | 2000 |
SG-8018CE 33.554400MHz TJHSA | X1G005591015300 | 2000 |
SG-8018CE 124.200000MHz TJHPA | X1G005591015400 | 2000 |
SG-8018CE 123.220000MHz TJHPA | X1G0055910155000 | 2000 |
SG-8018CE 32.674000MHz TJHSA | X1G005591015600 | 2000 |
SG-8018CE 30.810000MHz TJHSA | X1G005591015700 | 2000 |
SG-8018CE 9.600000MHz TJHSA | X1G005591015800 | 2000 |
SG-8018CE 2.000000MHz TJHSA | X1G005591015900 | 2000 |
SG-8018CE 2.457600MHz TJHPA | X1G005591016000 | 2000 |
SG-8018CE 12.000000MHz TJHPA | X1G005591016100 | 2000 |
SG-8018CE 16.666000MHz TJHPA | X1G005591016200 | 2000 |
SG-8018CE 12.000000MHz TJHPA | X1G005591016300 | 2000 |
SG-8018CE 6.750000MHz TJHPA | X1G005591016400 | 2000 |
SG-8018CE 6.750000MHz TJHPA | X1G005591016500 | 2000 |
SG-8018CE 48.000000MHz TJHPA | X1G005591016600 | 2000 |
SG-8018CE 40.000000MHz TJHSA | X1G005591016700 | 2000 |
SG-8018CE 4.000000MHz TJHSA | X1G005591016800 | 2000 |
SG-8018CE 82.110000MHz TJHSA | X1G005591016900 | 2000 |
SG-8018CE 138.566929MHz TJHPA | X1G005591017000 | 2000 |
SG-8018CE 5.000000MHz TJHSA | X1G0055910171000 | 2000 |
SG-8018CE 33.333333MHz TJHPA | X1G005591017200 | 2000 |
SG-8018CE 68.000000MHz TJHPA | X1G005591017300 | 2000 |
SG-8018CE 80.000000MHz TJHSA | X1G005591017400 | 2000 |
SG-8018CE 5.000000MHz TJHPA | X1G005591017500 | 2000 |
SG-8018CE 66.666667MHz TJHSA | X1G005591017600 | 2000 |
SG-8018CE 14.318000MHz TJHPA | X1G005591017700 | 2000 |
SG-8018CE 7.500000MHz TJHSA | X1G005591018000 | 2000 |
SG-8018CE 66.870000MHz TJHPA | X1G005591018100 | 2000 |
SG-8018CE 42.949700MHz TJHSA | X1G005591018200 | 2000 |
SG-8018CE 54.000000MHz TJHPA | X1G005591018300 | 2000 |
SG-8018CE 32.768000MHz TJHSA | X1G005591018400 | 2000 |
SG-8018CE 18.063360MHz TJHPA | X1G005591018500 | 2000 |
SG-8018CE 8.000000MHz TJHSA | X1G005591018600 | 2000 |
SG-8018CE 15.000000MHz TJHPA | X1G005591018900 | 2000 |
SG-8018CE 51.200000MHz TJHSA | X1G005591019000 | 2000 |
SG-8018CE 16.666600MHz TJHPA | X1G005591019100 | 2000 |
SG-8018CE 49.090900MHz TJHSA | X1G005591019600 | 2000 |
SG-8018CE 65.536000MHz TJHPA | X1G005591019700 | 2000 |
SG-8018CE 26.660000MHz TJHSA | X1G005591019800 | 2000 |
SG-8018CE 42.000000MHz TJHPA | X1G005591019900 | 2000 |
SG-8018CE 20.833000MHz TJHSA | X1G005591020000 | 2000 |
SG-8018CE 49.152000MHz TJHPA | X1G00559102100 | 2000 |
SG-8018CE 13.333000MHz TJHSA | X1G005591020200 | 2000 |
SG-8018CE 3.579545MHz TJHPA | X1G005591020300 | 2000 |
SG-8018CE 16.666667MHz TJHSA | X1G005591020400 | 2000 |
SG-8018CE 33.330000MHz TJHPA | X1G005591020500 | 2000 |
SG-8018CE 12.800000MHz TJHSA | X1G005591020600 | 2000 |
SG-8018CE 26.600000MHz TJHPA | X1G005591020700 | 2000 |
SG-8018CE 110.592000MHz TJHSA | X1G005591020800 | 2000 |
SG-8018CE 36.864000MHz TJHPA | X1G005591020900 | 2000 |
SG-8018CE 15.728640MHz TJHSA | X1G005591021000 | 2000 |
SG-8018CE 12.096000MHz TJHPA | X1G005591021100 | 2000 |
SG-8018CE 14.000000MHz TJHSA | X1G005591021200 | 2000 |
SG-8018CE 12.800000MHz TJHPA | X1G005591021300 | 2000 |
SG-8018CE 24.000000MHz TJHSA | X1G005591021400 | 2000 |
SG-8018CE 4.915200MHz TJHPA | X1G005591021500 | 2000 |
SG-8018CE 20.833000MHz TJHSA | X1G005591021600 | 2000 |
SG-8018CE 96.000000MHz TJHPA | X1G005591021700 | 2000 |
SG-8018CE 1.500000MHz TJHSA | X1G005591021800 | 2000 |
SG-8018CE 1.500000MHz TJHPA | X1G005591021900 | 2000 |
SG-8018CE 12.902400MHz TJHSA | X1G005591022000 | 2000 |
SG-8018CE 24.545400MHz TJHPA | X1G005591022100 | 2000 |
SG-8018CE 15.360000MHz TJHSA | X1G005591022200 | 2000 |
SG-8018CE 1.843200MHz TJHPA | X1G005591022300 | 2000 |
SG-8018CE 25.175000MHz TJHSA | X1G005591022400 | 2000 |
SG-8018CE 12.352000MHz TJHPA | X1G005591022500 | 2000 |
SG-8018CE 20.480000MHz TJHSA | X1G005591022600 | 2000 |
SG-8018CE 21.333000MHz TJHPA | X1G005591022700 | 2000 |
SG-8018CE 44.236000MHz TJHSA | X1G005591022800 | 2000 |
在线咨询
微信服务
