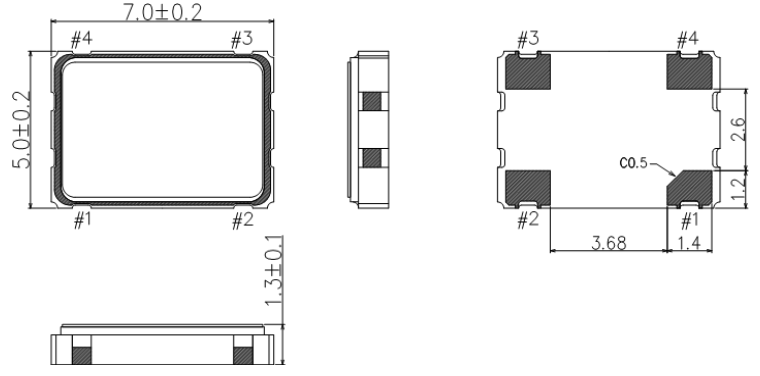

外部尺寸： 2.5× 2.0 mm（SG-8018CG）；3.2× 2.5 mm（SG-8018CE）；
5.0× 3.2 mm（SG-8018CB）；7.0× 5.0 mm（SG-8018CA）
输出频率：0.67 MHz to 170 MHz (1 × 10-6 Step)
电压：1.6V to 3.63V，输出：CMOS，工作温度：-40°C to +105 °C；功能： Output enable (OE) or Standby (/ST)
利用PLL技术，写入频点参数，快速交货

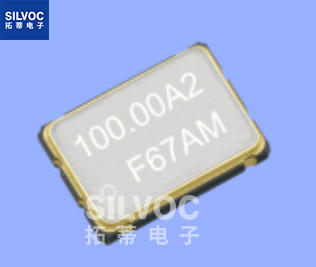

SG-8018CA (0.67-170MHZ)：EPSON(爱普生)可编程晶振、晶体振荡器
规格型号 | 产品编码 | MOQ (PCS) |
SG-8018CA MP Blank | X1G005571000200 | 1000 |
爱普生(EPSON)可编程晶振：SG-8018CG、SG-8018CE、SG-8018CB、SG-8018CA
可编程晶振: SG-8018CG、SG-8018CE、SG-8018CB、SG-8018CA，CMOS输出，供电电压是1.62V ~ 3.63V，工作温度可以达到-40℃至+105℃，符合工业级温度要求。
l 外部尺寸：2.5× 2.0 mm（SG-8018CG）、
3.2× 2.5 mm（SG-8018CE）、
5.0× 3.2 mm（SG-8018CB）、
7.0× 5.0 mm（SG-8018CA）
l 输出频率：0.67 MHz to 170 MHz (1 × 10-6 Step)
l 电压：1.6V to 3.63V
l 功能：Output enable (OE) or Standby (/ST)
l 输出：CMOS
l 工作温度：-40 °C to +105 °C
l 利用PLL技术，写入频点参数，快速交货
l 物联网
l 仪器仪表
l 医疗、工业自动化等
l IoT
l Medical, Industrial automation
爱普生的SG-8018CG、SG-8018CE、SG-8018CB、SG-8018CA系列是具有CMOS输出的可编程晶体振荡器系列。虽然该系列与早期的SG-8002/SG-8003系列具有相同的频率和其他参数的易编程性，但它们的工作温度范围更广，最高极限为105°C。除了2.5×2.0 mm的封装可以使电子制造商节省电路板空间外，振荡器还可以采用以下流行的封装尺寸：3.2×2.5 mm、5.0×3.2 mm和7.0×5.0 mm。与同类产品相比，SG-8018系列振荡器的频率容差约为66%，电流消耗约为50%，可在多种环境条件下使用。这也将大大有助于提高性能、降低功率需求、加快开发周期和小批量生产。
规格 (特征)
项目 | 符号 | 规格说明 | 条件 | ||||||||||
电源电压 | VCC | 1.80 V Typ. | 2.50V Typ. | 3.30V Typ. | |||||||||
1.62 to 1.98V | 1.98 to 2.20V | 2.20 to 2.80V | 2.70 to 3.63 V | ||||||||||
输出频率范围 | f0 | 0.67 MHz to 170 MHz | |||||||||||
储存温度 | T_stg | -40°C to +125°C | Storage as single product. | ||||||||||
工作温度 | T_use | H: -40°C to +105°C | |||||||||||
频率稳定度 *1 | f_tol | J: ±50 × 10-6 | T_use= -40°C to +105°C | ||||||||||
功耗 | ICC | 3.2mA Max. | 3.3mA Max. | 3.4mA Max. | 3.5mA Max. | T_use=+105°C | No load | ||||||
2.7mA Typ. | 2.9mA Typ. | 3.0mA Typ. | T_use=+25°C | ||||||||||
5.5mA Max. | 5.8mA Max. | 6.7mA Max. | 8.1mA Max. | T_use=+105°C | No load | ||||||||
4.7mA Typ. | 5.7mA Typ. | 6.8mA Typ. | T_use=+25°C | ||||||||||
输出禁用电流 | I_dis | 3.2mA Max. | 3.2mA Max. | 3.3mA Max. | 3.5mA Max. | OE=GND , f0 = 170 MHz | |||||||
待机电流 | I_std | 0.9μA Max. | 1.0μA Max. | 1.5μA Max. | 2.5μA Max. | T_use=+105°C | ST = GND | ||||||
0.3μA Typ. | 0.4μA Typ. | 0.5μA Typ. | 1.1μA Typ. | T_use= +25°C | |||||||||
占空比 | SYM | 45% to 55% | 50% VCC Level | ||||||||||
输出电压 | VOH | 90% VCC Min. | [mA] | ||||||||||
tr / tf | VCC | A | B | C | D | ||||||||
Default | IOH | -2.5 | -3.5 | -4.0 | -5.0 | ||||||||
IOL | 2.5 | 3.5 | 4.0 | 5.0 | |||||||||
Default | IOH | -1.5 | -2.0 | -2.5 | -3.0 | ||||||||
VOL | 10% VCC Max. | IOL | 1.5 | 2.0 | 2.5 | 3.0 | |||||||
Slow | IOH | -1.0 | -1.5 | -2.0 | -2.5 | ||||||||
IOL | 1.0 | 1.5 | 2.0 | 2.5 | |||||||||
A: 1.62 to 1.98 V , B: 1.98 to 2.20 V | |||||||||||||
输出负载条件 | L_CMOS | 15pF Max. | |||||||||||
输入电压 | VIH | 70% VCC Min. | OE or ST | ||||||||||
VIL | 30% VCC Max. | ||||||||||||
上升/下降时间 | 默认 | tr / tf | 3.0 ns Max. | f0 > 40MHz | 20% VCC to 80% VCC | ||||||||
6.0 ns Max. | f0 ≦ 40MHz | ||||||||||||
快速 | 3.0 ns Max. | f0=0.67to170MHz | |||||||||||
缓慢 | 10.0 ns Max. | f0=0.67to20MHz | |||||||||||
禁用时间 | t_stp | 1 μs Max. | Measured from the time OE or ST pin crosses 30 % VCC | ||||||||||
启用时间 | t_sta | 1 μs Max. | Measured from the time OE pin crosses 70 % VCC | ||||||||||
恢复时间 | t_res | 3 ms Max. | Measured from the time ST pin crosses 70 % VCC | ||||||||||
振荡器启动时间 | t_str | 3 ms Max. | Measured from the time VCC reaches its rated minimum value, 1.62 V | ||||||||||
频率老化 | f_aging | This is included in frequency tolerance specification | +25°C, 10 years | ||||||||||
*1频率容差包括初始频率容差、温度变化、电源电压变化、回流漂移、负载漂移和老化（+25°C，10年）。
Pin | Name | I/O type | Function | |
1 | OE | Input | Output enable | 高：OUT引脚的指定频率输出 低：输出引脚低（弱下拉），只有输出驱动器被禁用。 |
ST | Input | Standby | 高：OUT引脚的指定频率输出 低：输出引脚低（弱下拉） 设备进入待机模式。电源电流降低至the least值I_std。 | |
2 | GND | Power | Ground | |
3 | OUT | Output | Clock output | |
4 | VCC | Power | Power supply | |
*2请不要在打开状态下使用OE/S̅T̅终端。
SG-8018系列晶振产品名称参数：
(1) Product Name (Standard Form)
SG-8018CA 25.000000MHZ T JH P A
① ② ③ ④ ⑤⑥⑦⑧
①Model ②Size ③Frequency ④Supply voltage (T: 1.8 V to 3.3 V Typ.)
⑤Frequency tolerance
⑥Operating temperature (JH: ±50 × 10-6 / -40 °C to +105 °C)
⑦Function ⑧Rise time / Fall time
②Size | |
CG | 2.5 mm × 2.0 mm |
CE | 3.2 mm × 2.5 mm |
CB | 5.0 mm × 3.2 mm |
CA | 7.0 mm × 5.0 mm |
⑦Function | |
P | Output enable (#1pin = OE) |
S | Standby (#1pin = S̅T̅) |
⑧Rise time / Fall time | |
A | Default |
B | Fast |
C | Slow |
（2）产品料号：
Product Number (Blank section is decided by each detail specifications.)
SG-8018CG X1G005601xxxx00
SG-8018CE X1G005591xxxx00
SG-8018CB X1G005581xxxx00
SG-8018CA X1G005571xxxx00
① ② ③ ④⑤
① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）

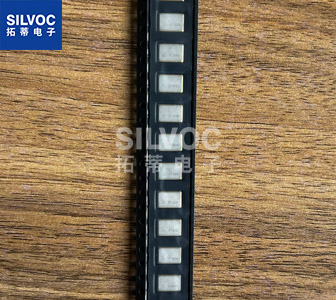

④ Detail specifications ⑤ Packing（00：Recommended packing 1K pcs/Reel）
（3） 空白片料号
SG-8018CG MP Blank: X1G005601000200
SG-8018CE MP Blank: X1G005591000200
SG-8018CB MP Blank: X1G005581000200
SG-8018CA MP Blank: X1G005571000200
① ② ③ ④ ⑤
① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）
④ Detail specifications
⑤ Packing（00：Recommended packing CA / CB:1K pcs/Reel, CE:1K pcs/Reel, CG:3K pcs/Reel）
为了保持稳定运行，在尽可能靠近晶体产品电源端子的位置（VCC-GND之间）提供0.1µF旁路电容器。
SG-8018CA常用频率列表如下：
规格型号 | 产品编码 | MOQ (PCS) |
SG-8018CA MP Blank | X1G005571000200 | 1000 |
SG-8018CA 8.000000MHz TJHPA | X1G005571003300 | 1000 |
SG-8018CA 12.288000MHz TJHPA | X1G005571003700 | 1000 |
SG-8018CA 10.000000MHz TJHSA | X1G005571002800 | 1000 |
SG-8018CA 20.000000MHz TJHPB | X1G005571008400 | 1000 |
SG-8018CA 20.000000MHz TJHPA | X1G005571001300 | 1000 |
SG-8018CA 25.000000MHz TJHPB | X1G005571011600 | 1000 |
SG-8018CA 8.000000MHz TJHPA | X1G005571003300 | 1000 |
SG-8018CA 66.000000MHz TJHSA | X1G005571005200 | 1000 |
SG-8018CA14.745600MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 16.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 20.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 24.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 24.576000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 25.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 26.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 27.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 32.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 33.330000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 33.333300MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 40.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 48.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 50.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 72.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 100.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 120.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 125.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 135.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 150.000000MHZ TJHPA | X1G005571xxxx00 | 1000 |
SG-8018CA 25.000000MHz TJHPA | X1G005571001100 | 1000 |
SG-8018CA 25.000000MHz TJHSA | X1G005571001200 | 1000 |
SG-8018CA 20.000000MHz TJHPA | X1G005571001300 | 1000 |
SG-8018CA 20.000000MHz TJHSA | X1G005571001400 | 1000 |
SG-8018CA 50.000000MHz TJHSA | X1G005571001500 | 1000 |
SG-8018CA 50.000000MHz TJHPA | X1G005571001600 | 1000 |
SG-8018CA 48.000000MHz TJHPA | X1G005571001700 | 1000 |
SG-8018CA 48.000000MHz TJHPA | X1G005571001800 | 1000 |
SG-8018CA 24.000000MHz TJHPA | X1G005571001900 | 1000 |
SG-8018CA 24.000000MHz TJHPA | X1G005571002000 | 1000 |
SG-8018CA 40.000000MHz TJHPA | X1G005571002100 | 1000 |
SG-8018CA 40.000000MHz TJHPA | X1G005571002200 | 1000 |
SG-8018CA 16.000000MHz TJHPA | X1G005571002300 | 1000 |
SG-8018CA 16.000000MHz TJHPA | X1G005571002400 | 1000 |
SG-8018CA 12.000000MHz TJHPA | X1G005571002500 | 1000 |
SG-8018CA 12.000000MHz TJHPA | X1G005571002600 | 1000 |
SG-8018CA 10.000000MHz TJHSA | X1G005571002700 | 1000 |
SG-8018CA 10.000000MHz TJHPA | X1G005571002800 | 1000 |
SG-8018CA 27.000000MHz TJHPA | X1G005571002900 | 1000 |
SG-8018CA 27.000000MHz TJHPA | X1G005571003000 | 1000 |
SG-8018CA 32.000000MHz TJHSA | X1G005571003100 | 1000 |
SG-8018CA 32.000000MHz TJHPA | X1G005571003200 | 1000 |
SG-8018CA 8.000000MHz TJHPA | X1G005571003300 | 1000 |
SG-8018CA 8.000000MHz TJHPA | X1G005571003400 | 1000 |
SG-8018CA 14.745600MHz TJHSA | X1G005571003500 | 1000 |
SG-8018CA 14.745600MHz TJHPA | X1G005571003600 | 1000 |
SG-8018CA 12.288000MHz TJHPA | X1G005571003700 | 1000 |
SG-8018CA 12.288000MHz TJHSA | X1G005571003800 | 1000 |
SG-8018CA 33.000000MHz TJHPA | X1G005571003900 | 1000 |
SG-8018CA 33.000000MHz TJHPA | X1G005571004000 | 1000 |
SG-8018CA 30.000000MHz TJHPA | X1G005571004100 | 1000 |
SG-8018CA 30.000000MHz TJHSA | X1G005571004200 | 1000 |
SG-8018CA 26.000000MHz TJHPA | X1G005571004300 | 1000 |
SG-8018CA 26.000000MHz TJHPA | X1G005571004400 | 1000 |
SG-8018CA 24.576000MHz TJHPA | X1G005571004500 | 1000 |
SG-8018CA 24.576000MHz TJHPA | X1G005571004600 | 1000 |
SG-8018CA 100.000000MHz TJHPA | X1G005571004700 | 1000 |
SG-8018CA 100.000000MHz TJHPA | X1G005571004800 | 1000 |
SG-8018CA 4.000000MHz TJHSA | X1G005571004900 | 1000 |
SG-8018CA 4.000000MHz TJHPA | X1G005571005000 | 1000 |
SG-8018CA 66.000000MHz TJHPA | X1G005571005100 | 1000 |
SG-8018CA 66.000000MHz TJHPA | X1G005571005200 | 1000 |
SG-8018CA 19.660800MHz TJHPA | X1G005571005300 | 1000 |
SG-8018CA 19.660800MHz TJHPA | X1G005571005400 | 1000 |
SG-8018CA 125.000000MHz TJHPA | X1G005571005500 | 1000 |
SG-8018CA 125.000000MHz TJHPA | X1G005571005600 | 1000 |
SG-8018CA 33.333300MHz TJHSA | X1G005571005700 | 1000 |
SG-8018CA 33.333300MHz TJHPA | X1G005571005800 | 1000 |
SG-8018CA 70.000000MHz TJHPA | X1G005571005900 | 1000 |
SG-8018CA 2.000000MHz TJHPA | X1G005571006000 | 1000 |
SG-8018CA 32.768000MHz TJHPA | X1G005571006100 | 1000 |
SG-8018CA 41.439990MHz TJHPA | X1G005571006200 | 1000 |
SG-8018CA 47.185920MHz TJHPA | X1G005571006300 | 1000 |
SG-8018CA 66.666600MHz TJHPA | X1G005571006400 | 1000 |
SG-8018CA 133.000000MHz TJHPA | X1G005571006500 | 1000 |
SG-8018CA 33.177600MHz TJHSA | X1G005571006600 | 1000 |
SG-8018CA 32.768000MHz TJHPA | X1G005571006700 | 1000 |
SG-8018CA 2.457600MHz TJHPA | X1G005571006800 | 1000 |
SG-8018CA 1.843200MHz TJHPA | X1G005571006900 | 1000 |
SG-8018CA 3.686400MHz TJHPA | X1G005571007000 | 1000 |
SG-8018CA 78.643200MHz TJHPA | X1G005571007100 | 1000 |
SG-8018CA 22.222200MHz TJHPA | X1G005571007200 | 1000 |
SG-8018CA 57.143000MHz TJHPA | X1G005571007300 | 1000 |
SG-8018CA 12.272700MHz TJHPA | X1G005571007400 | 1000 |
SG-8018CA 27.833300MHz TJHSA | X1G005571007500 | 1000 |
SG-8018CA 6.000000MHz TJHSA | X1G005571007600 | 1000 |
SG-8018CA 25.000750MHz TJHSA | X1G005571007700 | 1000 |
SG-8018CA 16.500000MHz TJHSA | X1G005571007800 | 1000 |
SG-8018CA 80.000000MHz TJHPA | X1G005571007900 | 1000 |
SG-8018CA 16.128000MHz TJHPA | X1G005571008000 | 1000 |
SG-8018CA 58.982400MHz TJHPA | X1G005571008100 | 1000 |
SG-8018CA 58.982400MHz TJHPA | X1G005571008200 | 1000 |
SG-8018CA 29.491200MHz TJHPA | X1G005571008300 | 1000 |
SG-8018CA 20.000000MHz TJHPA | X1G005571008400 | 1000 |
SG-8018CA 10.000000MHz TJHPA | X1G005571008500 | 1000 |
SG-8018CA 15.200000MHz TJHPA | X1G005571008600 | 1000 |
SG-8018CA 16.384000MHz TJHSA | X1G005571008700 | 1000 |
SG-8018CA 61.440000MHz TJHPA | X1G005571008800 | 1000 |
SG-8018CA 4.915200MHz TJHPA | X1G005571008900 | 1000 |
SG-8018CA 19.660800MHz TJHPA | X1G005571009000 | 1000 |
SG-8018CA 3.000000MHz TJHSA | X1G005571009100 | 1000 |
SG-8018CA 80.000000MHz TJHSA | X1G005571009200 | 1000 |
SG-8018CA 156.250000MHz TJHPA | X1G005571009400 | 1000 |
SG-8018CA 18.432000MHz TJHPA | X1G005571009500 | 1000 |
SG-8018CA 2.048000MHz TJHPA | X1G005571009600 | 1000 |
SG-8018CA 3.579545MHz TJHPA | X1G005571009700 | 1000 |
SG-8018CA 33.333000MHz TJHPA | X1G005571009800 | 1000 |
SG-8018CA 49.152000MHz TJHPA | X1G005571009900 | 1000 |
SG-8018CA 49.152000MHz TJHSA | X1G005571010000 | 1000 |
SG-8018CA 66.666000MHz TJHPA | X1G005571010100 | 1000 |
SG-8018CA 7.372800MHz TJHSA | X1G005571010200 | 1000 |
SG-8018CA 87.250000MHz TJHPA | X1G005571010300 | 1000 |
SG-8018CA 33.330000MHz TJHPA | X1G005571010400 | 1000 |
SG-8018CA 64.000000MHz TJHPA | X1G005571010500 | 1000 |
SG-8018CA 14.400000MHz TJHSA | X1G005571010600 | 1000 |
SG-8018CA 7.159090MHz TJHSA | X1G005571010700 | 1000 |
SG-8018CA 12.000000MHz TJHPA | X1G005571010800 | 1000 |
SG-8018CA 50.000000MHz TJHPA | X1G005571010900 | 1000 |
SG-8018CA 1.000000MHz TJHPA | X1G005571011000 | 1000 |
SG-8018CA 13.107200MHz TJHPA | X1G005571011100 | 1000 |
SG-8018CA 12.500000MHz TJHPA | X1G005571011200 | 1000 |
SG-8018CA 6.250000MHz TJHPA | X1G005571011300 | 1000 |
SG-8018CA 66.666600MHz TJHPA | X1G005571011400 | 1000 |
SG-8018CA 9.830400MHz TJHPA | X1G005571011500 | 1000 |
SG-8018CA 25.000000MHz TJHPA | X1G005571011600 | 1000 |
SG-8018CA 30.720000MHz TJHSA | X1G005571011700 | 1000 |
SG-8018CA 16.777000MHz TJHPA | X1G005571011800 | 1000 |
SG-8018CA 93.830400MHz TJHPA | X1G005571011900 | 1000 |
SG-8018CA 108.000000MHz TJHPA | X1G005571012000 | 1000 |
SG-8018CA 28.000000MHz TJHPA | X1G005571012100 | 1000 |
SG-8018CA 33.333000MHz TJHPA | X1G005571012200 | 1000 |
SG-8018CA 24.545000MHz TJHPA | X1G005571012300 | 1000 |
SG-8018CA 16.670000MHz TJHSA | X1G005571012400 | 1000 |
SG-8018CA 16.666600MHz TJHPA | X1G005571012500 | 1000 |
SG-8018CA 16.000000MHz TJHPA | X1G005571012600 | 1000 |
SG-8018CA 18.432000MHz TJHPA | X1G005571012700 | 1000 |
SG-8018CA 8.000000MHz TJHPA | X1G005571012800 | 1000 |
SG-8018CA 1.045000MHz TJHPA | X1G005571012900 | 1000 |
SG-8018CA 6.144000MHz TJHPA | X1G005571013000 | 1000 |
SG-8018CA 24.000000MHz TJHSA | X1G005571013100 | 1000 |
SG-8018CA 51.799990MHz TJHPA | X1G005571013200 | 1000 |
SG-8018CA 24.847800MHz TJHPA | X1G005571013300 | 1000 |
SG-8018CA 40.000000MHz TJHPA | X1G005571013400 | 1000 |
SG-8018CA 80.000000MHz TJHPA | X1G005571013500 | 1000 |
SG-8018CA 11.059200MHz TJHSA | X1G005571013600 | 1000 |
SG-8018CA 12.000000MHz TJHPA | X1G005571013700 | 1000 |
SG-8018CA 14.745600MHz TJHSA | X1G005571013800 | 1000 |
SG-8018CA 18.450000MHz TJHPA | X1G005571013900 | 1000 |
SG-8018CA 13.000000MHz TJHSA | X1G005571014200 | 1000 |
SG-8018CA 11.289000MHz TJHSA | X1G005571014300 | 1000 |
SG-8018CA 9.830400MHz TJHPA | X1G005571014400 | 1000 |
SG-8018CA 44.000000MHz TJHSA | X1G005571014500 | 1000 |
SG-8018CA 60.000000MHz TJHPA | X1G005571014600 | 1000 |
SG-8018CA 120.000000MHz TJHPA | X1G005571014700 | 1000 |
SG-8018CA 4.096000MHz TJHPA | X1G005571014800 | 1000 |
SG-8018CA 22.118400MHz TJHPA | X1G005571014900 | 1000 |
SG-8018CA 22.579200MHz TJHPA | X1G005571015000 | 1000 |
SG-8018CA 11.289600MHz TJHSA | X1G005571015100 | 1000 |
SG-8018CA 25.000000MHz TJHPA | X1G005571015200 | 1000 |
SG-8018CA 66.666700MHz TJHPA | X1G005571015300 | 1000 |
SG-8018CA 75.000000MHz TJHPA | X1G005571015400 | 1000 |
SG-8018CA 15.974400MHz TJHPA | X1G005571015500 | 1000 |
SG-8018CA 16.667000MHz TJHSA | X1G005571015600 | 1000 |
SG-8018CA 28.560000MHz TJHPA | X1G005571015700 | 1000 |
SG-8018CA 78.000000MHz TJHSA | X1G005571015800 | 1000 |
SG-8018CA 41.666000MHz TJHPA | X1G005571015900 | 1000 |
SG-8018CA 50.360000MHz TJHSA | X1G005571016000 | 1000 |
SG-8018CA 20.480000MHz TJHPA | X1G005571016100 | 1000 |
SG-8018CA 33.300000MHz TJHSA | X1G005571016200 | 1000 |
SG-8018CA 74.250000MHz TJHPA | X1G005571016300 | 1000 |
SG-8018CA 74.175824MHz TJHSA | X1G005571016400 | 1000 |
SG-8018CA 55.600000MHz TJHPA | X1G005571016500 | 1000 |
SG-8018CA 22.500000MHz TJHSA | X1G005571016600 | 1000 |
SG-8018CA 38.400000MHz TJHPA | X1G005571016700 | 1000 |
SG-8018CA 90.000000MHz TJHSA | X1G005571016800 | 1000 |
SG-8018CA 4.000000MHz TJHPA | X1G005571016900 | 1000 |
SG-8018CA 8.000000MHz TJHSA | X1G005571017000 | 1000 |
SG-8018CA 26.600000MHz TJHPA | X1G005571017100 | 1000 |
SG-8018CA 9.730000MHz TJHSA | X1G005571017300 | 1000 |
SG-8018CA 75.180400MHz TJHPA | X1G005571017400 | 1000 |
SG-8018CA 96.000000MHz TJHSA | X1G005571017500 | 1000 |
SG-8018CA 11.059200MHz TJHPA | X1G005571017600 | 1000 |
SG-8018CA 4.096000MHz TJHSA | X1G005571017700 | 1000 |
SG-8018CA 16.666666MHz TJHPA | X1G005571017800 | 1000 |
SG-8018CA 28.000000MHz TJHSA | X1G005571017900 | 1000 |
SG-8018CA 15.000000MHz TJHPA | X1G005571018000 | 1000 |
SG-8018CA 28.800000MHz TJHSA | X1G005571018100 | 1000 |
SG-8018CA 14.745000MHz TJHPA | X1G005571018200 | 1000 |
SG-8018CA 170.000000MHz TJHSA | X1G005571018300 | 1000 |
SG-8018CA 33.000000MHz TJHPA | X1G005571018400 | 1000 |
SG-8018CA 48.000000MHz TJHSA | X1G005571018500 | 1000 |
SG-8018CA 33.000000MHz TJHPA | X1G005571018600 | 1000 |
SG-8018CA 3.600000MHz TJHSA | X1G005571018700 | 1000 |
SG-8018CA 14.318180MHz TJHPA | X1G005571018800 | 1000 |
SG-8018CA 29.491200MHz TJHSA | X1G005571018900 | 1000 |
SG-8018CA 19.200000MHz TJHPA | X1G005571019000 | 1000 |
SG-8018CA 7.000000MHz TJHSA | X1G005571019100 | 1000 |
SG-8018CA 4.194300MHz TJHPA | X1G005571019200 | 1000 |
SG-8018CA 20.000000MHz TJHSA | X1G005571019300 | 1000 |
SG-8018CA 45.000000MHz TJHPA | X1G005571019400 | 1000 |
SG-8018CA 5.000000MHz TJHSA | X1G005571019600 | 1000 |
SG-8018CA 5.000000MHz TJHPA | X1G005571019700 | 1000 |
SG-8018CA 36.126720MHz TJHSA | X1G005571019800 | 1000 |
SG-8018CA 9.031680MHz TJHPA | X1G005571019900 | 1000 |
SG-8018CA 36.126700MHz TJHSA | X1G005571020000 | 1000 |
SG-8018CA 26.214400MHz TJHPA | X1G005571020100 | 1000 |
SG-8018CA 75.000000MHz TJHSA | X1G005571020200 | 1000 |
SG-8018CA 62.500000MHz TJHPA | X1G005571020300 | 1000 |
SG-8018CA 62.500000MHz TJHSA | X1G005571020400 | 1000 |
在线咨询
微信服务
