输出频率: 1 MHz to 125 MHz
输出: CMOS
电压: 3.0 V / 3.3 V / 5.0V
功能: Output enable (OE) or Standby (/ST)
利用PLL技术,写入频率参数,快速交货
利用可编程工具 “SG-Writer II”写入频率参数

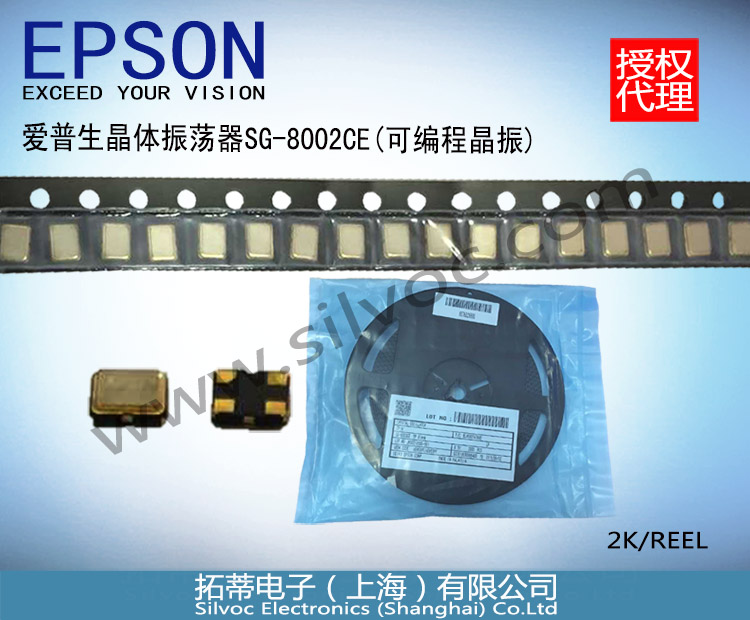

SG-8002CE (1-125MHZ):EPSON(爱普生)可编程晶振、晶体振荡器
规格型号 | 产品编码 | MOQ (PCS) |
SG-8002CE MP Blank | Q3321CE00000200 | 2000 |
爱普生(EPSON)可编程晶振:SG-8002CA、SG-8002CE、SG-8002LB、SG-8002JF、SG-8002JF、SG-8002JA、SG-8002JC、SG-8002DC、SG-8002DB.
l 晶体振荡器 (可编程)
l 输出频率: 1 MHz to 125 MHz
l 输出: CMOS
l 电压: 3.0 V / 3.3 V / 5.0V
l 功能: Output enable (OE) or Standby (/ST)
l 利用PLL技术,写入频率参数,快速交货
l 利用可编程工具 “SG-Writer II”写入频率参数

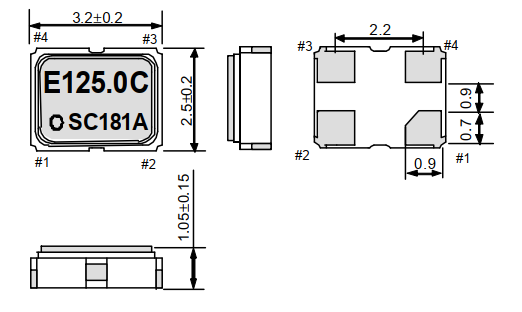

l 尺寸: 3.2× 2.5 ×1.2 mm(SG-8002CE)、
7.0× 5.0 ×1.5 mm(SG-8002CA)、
5.0× 3.2 ×1.2mm(SG-8002LB)、
7.1× 5.1 × 1.5mm(SG-8002JF)
10.5× 5.8 ×2.7 mm(SG-8002JC)
14.0× 9.8 ×4.7 mm(SG-8002JA)
13.7× 6.6 ×5.3 mm(SG-8002DC)
19.8× 7.6 ×5.3mm(SG-8002DB)
l 物联网
l 仪器仪表
l 医疗、工业自动化等
l IoT
l Medical, Industrial automation
爱普生的SG-8002CA、SG-8002CE、SG-8002LB、SG-8002JF、SG-8002JF、SG-8002JA、SG-8002JC、SG-8002DC、SG-8002DB系列是具有CMOS输出的可编程晶体振荡器系列。 振荡器还可以采用以下流行的封装尺寸:3.2×2.5 mm、5.0×3.2 mm和7.0×5.0 mm。与同类产品相比,SG-8002系列振荡器可在多种环境条件下使用。这也将大大有助于加快开发周期和小批量生产。
规格 (特征)
项目 | 符号 | 规格说明 | 条件 | ||
PT / ST | PH / SH | PC / SC | |||
输出频率范围 | f0 | 1 MHz to 125 MHz | — | VCC = 4.5 V to 5.5 V (except SG-8002LB) | |
— | 1 MHz to 80 MHz | — | VCC= 4.5 V to 5.5 V (SG-8002LB only) | ||
— | — | 1 MHz to 125 MHz | VCC= 3.0 V to 3.6 V | ||
— | — | 1 MHz to 66.7MHz | VCC= 2.7 V to 3.6 V | ||
电源电压 | VCC | 4.5 V to 5.5 V | 2.7 V to 3.6 V | ||
储存温度
| T_stg | -55°C to +125 °C (SG-8002CA / JF / JA / DC / DB) | Storage as single product. | ||
-55°C to +100 °C (SG-8002JC) | |||||
-40 °C to +125 °C (SG-8002CE / LB) | |||||
工作温度 | T_use | 20°C to +70 °C / -40 °C to +85 °C | |||
频率稳定度 *1 | f_tol | B: ±50 x 10-6, C: ±100 x 10-6 | -20 °C to +70 °C | ||
M: ±100 x 10-6 | M: ±100 x 10-6 | -40°C to +85 °C (except SG-8002JC) *3 | |||
— | L: ±50 x 10-6 | L: ±50 x 10-6 | -40°C to +85°C (SG-8002LB only) *3 | ||
功耗 | ICC | 40 mA Max. (SG-8002CE) | 28 mA Max. | No load condition, Max. frequency | |
— | 30 mA Max. (SG-8002LB) | ||||
45 mA Max. (SG-8002CA / JF /JC / JA / DC / DB) | |||||
输出禁用电流 | I_dis | 30 mA Max. | 16 mA Max. | OE=GND (PT.PH,PC) (except SG-8002LB) | |
— | 25 mA Max. | 16 mA Max. | OE=GND (PH,PC) (SG-8002LB only) | ||
待机电流 | I_std | 50 µA Max. | /ST =GND (ST,SH,SC) | ||
占空比 | SYM | 40% to 60% | — | TTL load: 1.4 V, Max. load condition (except SG-8002LB) | |
— | 40% to 60% | CMOS load:50 % VCClevel, Max. load condition (except SG-8002LB) | |||
— | 40% to 60% | — | 50 % VCC, L_CMOS=15 pF,£80 MHz (SG-8002LB) | ||
— | — | 40% to 60% | 50 % VCC, L_CMOS=15 pF, VCC=3.0 V to 3.6 V, ≤125 MHz (SG-8002LB) | ||
— | — | 40% to 60% | 50 % VCC, L_CMOS=15 pF, VCC=2.7 V to 3.6 V, ≤66.7 MHz (SG-8002LB) | ||
45% to 55% | *1 | ||||
输出电压 | VOH | VCC -0.4 V Min. | IOH=-16 mA (PT,ST,PH,SH ) , -8 mA (PC,SC) | ||
VOL | 0.4 V Max. | IOL=16 mA (PT,ST,PH,SH) , 8 mA (PC,SC) | |||
输出负载条件 (TTL)*1 | L_TTL | 5 TTL Max. | Max. frequency and Max. Supply voltage (SG-8002CE / CA / JA / DC / DB) | ||
5 TTL Max. | f0≤90 MHz and Max. Supply voltage (SG-8002JF / JC ) | ||||
输出负载条件(CMOS)*1 | L_CMOS | 15 pF Max. | Max. frequency and Max. Supply voltage (SG-8002CE / JF / JC) | ||
— | 15 pF Max. | Max. frequency and Max. Supply voltage (SG-8002LB) | |||
15 pF Max. | 25 pF Max. | 15 pF Max. | Max. frequency and Max. Supply voltage (SG-8002CA / JA / DC / DB) | ||
输入电压 | VIH | 2.0 V Min. | 70 % VCC Min. | OE terminal or ST terminal | |
VIL | 0.8 V Max. | 20 % VCC Max. | |||
上升/下降时间*1 | tr/ tf | 4ns Max. | — | TTL load: 0.4 V to 2.4 V level (except SG-8002LB) | |
— | 3ns Max. | CMOS load: 20 % VCCto 80 % VCClevel | |||
启用时间 | t_str | 10ms Max. | Time at minimum supply voltage to be 0s | ||
频率老化 | f_aging | ±5 × 10-6 / year Max. | +25°C, VCC=5.0 V/ 3.3 V (PC,SC) First year |
*1有关以下信息:工作温度、可用频率、占空比、输出负载条件和上升/下降时间,请参阅“规格书”。
*2有关PLL-PLL连接和抖动规格,请参阅“抖动规格和特性表”页面。
*3关于公差“M”和“L”的可用性,请参考“规格书”。精工爱普生网站上的“频率检查”程序也可用。
Pin | Name | I/O type | Function | |
1 | OE | Input | Output enable | 高:OUT引脚的指定频率输出 低:输出引脚低(弱下拉),只有输出驱动器被禁用。 |
ST | Input | Standby | 高:OUT引脚的指定频率输出 低:输出引脚低(弱下拉) 设备进入待机模式。电源电流降低至the least值I_std。 | |
2 | GND | Power | Ground | |
3 | OUT | Output | Clock output | |
4 | VCC | Power | Power supply |
*2请不要在打开状态下使用OE/S̅T̅终端。
SG-8002系列晶振产品名称参数:
(1) Product Name SG-8002CE 25.000000MHZ P C M
(Standard Form) ① ② ③ ④ ⑤⑥
① Model ② Size(CE:3.2*2.5) ③ Frequency ④ Function (P: Output enable, S:Standby)
⑤ Supply voltage ⑥Frequency tolerance / Operating temperature
② Size | |

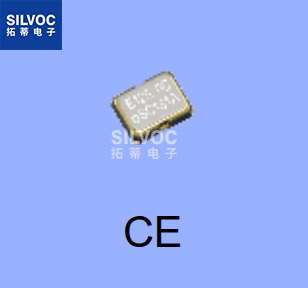

CE | 3.2 mm × 2.5 mm |
LB | 5.0 mm × 3.2 mm |
CA | 7.0 mm × 5.0 mm |
JF | 7.1 mm × 1.5 mm |
JC | 10.5 mm × 5.0 mm |
JA | 14.0 mm × 9.8 mm |
DC | 13.7 mm × 6.6 mm |
DB | 19.8 mm × 6.36 mm |
⑤ Supply voltage | |
T, H | 5.0V Type |
C | 3.0 / 3.3 V Typ. |
⑥ Frequency tolerance / Operating temperature | |
B | ±50 × 10-6 / -20 °C to +70 °C |
C | ±100 × 10-6 / -20 °C to +70 °C |
L | ±50 × 10-6 / -40 °C to +85 °C |
M | ±100 × 10-6 / -40 °C to +85 °C |
(2) Product Number (Blank section is decided by each detail specifications.)
SG-8002CE Q3321CExxxxxx00
SG-8002CA Q3309CAx0xxxx00
SG-8002LB Q3323LBxxxxxx00
SG-8002JF Q3308JFx2xxxx00
SG-8002JC Q3307JCx2xxxx00
SG-8002JA Q3306JAx2xxxx00
SG-8002DC Q3204DCx2xxxx00
SG-8002DB Q3203DBx2xxxx00
① ② ③ ④⑤
① Crystal devices ② Model ③ Pb free code(1:EU RoHS / 2: Pb free)
④ Detail specifications
⑤ Packing(00:Recommended packing,
CA / JF :1K pcs/Reel, CE / LB:2K pcs/Reel, DC:35 pcs/Tube, JA:40PCS/TUBE))

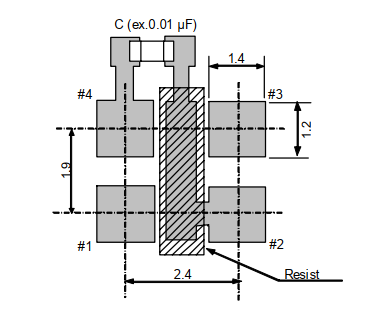

为了保持稳定运行,在尽可能靠近晶体产品电源端子的位置(VCC-GND之间)提供0.1µF旁路电容器。
规格型号 | 产品编码 | MOQ (PCS) |
SG-8002CE MP Blank | Q3321CE00000200 | 2000 |
SG-8002CE 24.000000MHz PHC | Q3321CE20000100 | 2000 |
SG-8002CE 6.000000MHz PHB | Q3321CE20000200 | 2000 |
SG-8002CE 32.000000MHz PHC | Q3321CE20000300 | 2000 |
SG-8002CE 13.560000MHz PHB | Q3321CE20000400 | 2000 |
SG-8002CE 1.843200MHz PHB | Q3321CE20000500 | 2000 |
SG-8002CE 11.520000MHz PHC | Q3321CE20000600 | 2000 |
SG-8002CE 24.576000MHz PHC | Q3321CE20000700 | 2000 |
SG-8002CE 12.288000MHz PHC | Q3321CE20000800 | 2000 |
SG-8002CE 9.492000MHz PHC | Q3321CE20000900 | 2000 |
SG-8002CE 20.000000MHz PHM | Q3321CE20001000 | 2000 |
SG-8002CE 10.300000MHz PHC | Q3321CE20001100 | 2000 |
SG-8002CE 10.000000MHz PHC | Q3321CE20001200 | 2000 |
SG-8002CE 9.700000MHz PHC | Q3321CE20001300 | 2000 |
SG-8002CE 2.000000MHz PHC | Q3321CE20001400 | 2000 |
SG-8002CE 4.027900MHz PHB | Q3321CE20001500 | 2000 |
SG-8002CE 3.270000MHz PHC | Q3321CE20001600 | 2000 |
SG-8002CE 8.000000MHz PHC | Q3321CE20001700 | 2000 |
SG-8002CE 16.000000MHz PHC | Q3321CE20001800 | 2000 |
SG-8002CE 4.915200MHz PHC | Q3321CE20001900 | 2000 |
SG-8002CE 2.500000MHz PHC | Q3321CE20002000 | 2000 |
SG-8002CE 1.000000MHz PHC | Q3321CE20002100 | 2000 |
SG-8002CE 3.686400MHz PHC | Q3321CE20002200 | 2000 |
SG-8002CE 11.059200MHz PHC | Q3321CE20002300 | 2000 |
SG-8002CE 4.915200MHz PHB | Q3321CE20002400 | 2000 |
SG-8002CE 2.000000MHz PHB | Q3321CE20002500 | 2000 |
SG-8002CE 7.372800MHz PHC | Q3321CE20002600 | 2000 |
SG-8002CE 7.000000MHz PHM | Q3321CE20002700 | 2000 |
SG-8002CE 14.745600MHz PHB | Q3321CE20002800 | 2000 |
SG-8002CE 14.318180MHz PHB | Q3321CE20002900 | 2000 |
SG-8002CE 1.200000MHz PHB | Q3321CE20003000 | 2000 |
SG-8002CE 20.000000MHz PHB | Q3321CE20003100 | 2000 |
SG-8002CE 25.000000MHz PHC | Q3321CE20003200 | 2000 |
SG-8002CE 7.372800MHz PHB | Q3321CE20003300 | 2000 |
SG-8002CE 40.000000MHz PHC | Q3321CE20003400 | 2000 |
SG-8002CE 64.000000MHz PHC | Q3321CE20003500 | 2000 |
SG-8002CE 12.500000MHz PHB | Q3321CE20003600 | 2000 |
SG-8002CE 24.000000MHz PHB | Q3321CE20003700 | 2000 |
SG-8002CE 3.686400MHz PHM | Q3321CE20003800 | 2000 |
SG-8002CE 6.400000MHz PHC | Q3321CE20003900 | 2000 |
SG-8002CE 8.000000MHz PHB | Q3321CE20004000 | 2000 |
SG-8002CE 19.200000MHz PHC | Q3321CE20004100 | 2000 |
SG-8002CE 4.800000MHz PHM | Q3321CE20004200 | 2000 |
SG-8002CE 20.000000MHz PHC | Q3321CE20004300 | 2000 |
SG-8002CE 32.000000MHz PHB | Q3321CE20004400 | 2000 |
SG-8002CE 1.000000MHz PHM | Q3321CE20004500 | 2000 |
SG-8002CE 4.000000MHz PHB | Q3321CE20004600 | 2000 |
SG-8002CE 10.000000MHz PHB | Q3321CE20004700 | 2000 |
SG-8002CE 13.000000MHz PHC | Q3321CE20004800 | 2000 |
SG-8002CE 6.000000MHz PHM | Q3321CE20004900 | 2000 |
SG-8002CE 4.915200MHz PHM | Q3321CE20005000 | 2000 |
SG-8002CE 3.072000MHz PHC | Q3321CE20005100 | 2000 |
SG-8002CE 3.072000MHz PHM | Q3321CE20005200 | 2000 |
SG-8002CE 6.144000MHz PHC | Q3321CE20005300 | 2000 |
SG-8002CE 60.000000MHz PHB | Q3321CE20005400 | 2000 |
SG-8002CE 16.000000MHz PHM | Q3321CE20005500 | 2000 |
SG-8002CE 1.024000MHz PHB | Q3321CE20005600 | 2000 |
SG-8002CE 19.660800MHz PHB | Q3321CE20005700 | 2000 |
SG-8002CE 24.576000MHz PHM | Q3321CE20005800 | 2000 |
SG-8002CE 40.000000MHz PHB | Q3321CE20005900 | 2000 |
SG-8002CE 19.660800MHz PHC | Q3321CE20006000 | 2000 |
SG-8002CE 1.880000MHz PHM | Q3321CE20006100 | 2000 |
SG-8002CE 50.000000MHz PHB | Q3321CE20006200 | 2000 |
SG-8002CE 8.000000MHz PHM | Q3321CE20006300 | 2000 |
SG-8002CE 22.579200MHz PHM | Q3321CE20006400 | 2000 |
SG-8002CE 7.159090MHz PHC | Q3321CE20006500 | 2000 |
SG-8002CE 3.200000MHz PHC | Q3321CE20007800 | 2000 |
SG-8002CE 3.000000MHz PHC | Q3321CE20007900 | 2000 |
SG-8002CE 12.288000MHz PHB | Q3321CE20008000 | 2000 |
SG-8002CE 48.000000MHz PHC | Q3321CE20008100 | 2000 |
SG-8002CE 13.560000MHz PHC | Q3321CE20008300 | 2000 |
SG-8002CE 3.100000MHz PHC | Q3321CE20008400 | 2000 |
SG-8002CE 9.830400MHz PHB | Q3321CE20008500 | 2000 |
SG-8002CE 2.000000MHz PHM | Q3321CE20008600 | 2000 |
SG-8002CE 1.024000MHz PHC | Q3321CE20008700 | 2000 |
SG-8002CE 100.000000MHz PHB | Q3321CE20008800 | 2000 |
SG-8002CE 6.000000MHz PHC | Q3321CE20008900 | 2000 |
SG-8002CE 16.000000MHz PHB | Q3321CE20009000 | 2000 |
SG-8002CE 1.075200MHz PHM | Q3321CE20009200 | 2000 |
SG-8002CE 50.000000MHz PHC | Q3321CE20009300 | 2000 |
SG-8002CE 5.000000MHz PHC | Q3321CE20009500 | 2000 |
SG-8002CE 8.128000MHz PHC | Q3321CE20009600 | 2000 |
SG-8002CE 22.118400MHz PHC | Q3321CE20009700 | 2000 |
SG-8002CE 10.000000MHz PHM | Q3321CE20009900 | 2000 |
SG-8002CE 9.984000MHz PHB | Q3321CE20010000 | 2000 |
SG-8002CE 2.500000MHz PHB | Q3321CE20010100 | 2000 |
SG-8002CE 1.228800MHz PHM | Q3321CE20010200 | 2000 |
SG-8002CE 2.457600MHz PHM | Q3321CE20010300 | 2000 |
SG-8002CE 2.764800MHz PHB | Q3321CE20010400 | 2000 |
SG-8002CE 18.432000MHz PHB | Q3321CE20010500 | 2000 |
SG-8002CE 24.000000MHz PHM | Q3321CE20010600 | 2000 |
SG-8002CE 7.600000MHz PHC | Q3321CE20010700 | 2000 |
SG-8002CE 3.200000MHz PHB | Q3321CE20010800 | 2000 |
SG-8002CE 120.000000MHz PHC | Q3321CE20010900 | 2000 |
SG-8002CE 14.745600MHz PHM | Q3321CE20011000 | 2000 |
SG-8002CE 22.118400MHz PHB | Q3321CE20011100 | 2000 |
SG-8002CE 39.321600MHz PHB | Q3321CE20011200 | 2000 |
SG-8002CE 36.000000MHz PHC | Q3321CE20011400 | 2000 |
SG-8002CE 9.216000MHz PHC | Q3321CE20011500 | 2000 |
SG-8002CE 32.514000MHz PHC | Q3321CE20011600 | 2000 |
SG-8002CE 4.910000MHz PHC | Q3321CE20011700 | 2000 |
SG-8002CE 33.330000MHz PHC | Q3321CE20011800 | 2000 |
SG-8002CE 15.360000MHz PHC | Q3321CE20011900 | 2000 |
SG-8002CE 14.284800MHz PHC | Q3321CE20012100 | 2000 |
SG-8002CE 31.334400MHz PHC | Q3321CE20012200 | 2000 |
SG-8002CE 12.000000MHz PHB | Q3321CE20012300 | 2000 |
SG-8002CE 14.745600MHz PHC | Q3321CE20012400 | 2000 |
SG-8002CE 2.457600MHz PHC | Q3321CE20012600 | 2000 |
SG-8002CE 4.000000MHz PHC | Q3321CE20012700 | 2000 |
SG-8002CE 7.372800MHz PHM | Q3321CE20012800 | 2000 |
SG-8002CE 11.702860MHz PHB | Q3321CE20013000 | 2000 |
SG-8002CE 11.702860MHz PHB | Q3321CE20013000 | 2000 |
SG-8002CE 4.000000MHz PHM | Q3321CE20013200 | 2000 |
SG-8002CE 4.096000MHz PHC | Q3321CE20013600 | 2000 |
SG-8002CE 1.089200MHz PHB | Q3321CE20013800 | 2000 |
SG-8002CE 4.194304MHz PHB | Q3321CE20013900 | 2000 |
SG-8002CE 2.304000MHz PHB | Q3321CE20014000 | 2000 |
SG-8002CE 7.168000MHz PHC | Q3321CE20014100 | 2000 |
SG-8002CE 19.922944MHz PHB | Q3321CE20014200 | 2000 |
SG-8002CE 29.491200MHz PHC | Q3321CE20014300 | 2000 |
SG-8002CE 3.103000MHz PHC | Q3321CE20014400 | 2000 |
SG-8002CE 2.216500MHz PHC | Q3321CE20014500 | 2000 |
SG-8002CE 15.974400MHz PHM | Q3321CE20014600 | 2000 |
SG-8002CE 12.500000MHz PHM | Q3321CE20014700 | 2000 |
SG-8002CE 4.194300MHz PHC | Q3321CE20014800 | 2000 |
SG-8002CE 16.384000MHz PHC | Q3321CE20014900 | 2000 |
SG-8002CE 6.600000MHz PHC | Q3321CE20015100 | 2000 |
SG-8002CE 12.000000MHz PHC | Q3321CE20015200 | 2000 |
SG-8002CE 4.096000MHz PHM | Q3321CE20015300 | 2000 |
SG-8002CE 48.000000MHz PHB | Q3321CE20015400 | 2000 |
SG-8002CE 25.000000MHz PHB | Q3321CE20015500 | 2000 |
SG-8002CE 16.025000MHz PHM | Q3321CE20015600 | 2000 |
SG-8002CE 1.843200MHz PHM | Q3321CE20015700 | 2000 |
SG-8002CE 1.690000MHz PHC | Q3321CE20015900 | 2000 |
SG-8002CE 6.780000MHz PHM | Q3321CE20016000 | 2000 |
SG-8002CE 35.000000MHz PHB | Q3321CE20016100 | 2000 |
SG-8002CE 4.194394MHz PHC | Q3321CE20016400 | 2000 |
SG-8002CE 4.194304MHz PHC | Q3321CE20016500 | 2000 |
SG-8002CE 6.780000MHz PHB | Q3321CE20016600 | 2000 |
SG-8002CE 80.000000MHz PHC | Q3321CE20016800 | 2000 |
SG-8002CE 16.777216MHz PHB | Q3321CE20016900 | 2000 |
