频率范围:12 MHz to 54 MHz

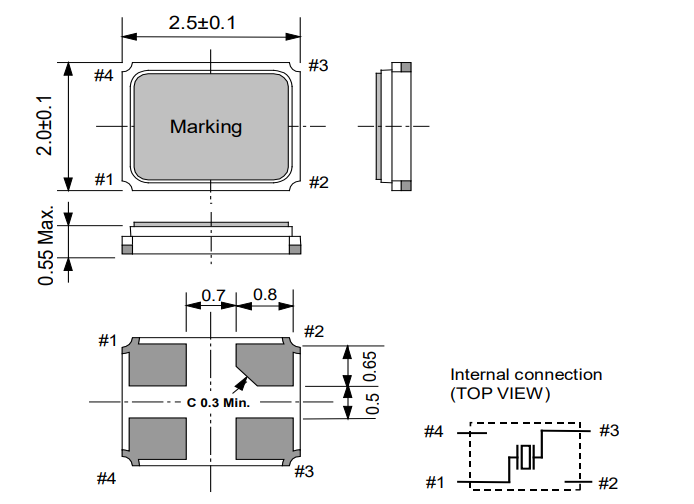

外部尺寸:2.5 × 2.0 × 0.55mm
谐波次数:基频
应用:手机、蓝牙、W-LAN、ISM波段收音机,MPU时钟
FA-20H:EPSON(爱普生) MHz范围晶体单元,超小型薄型SMD
常用参数列表如下:
型号 | 料号 | 温度范围 | MOQ(pcs) |
FA-20H 30.000000MHz 10.0 +10.0 -10.0 | Q24FA20H0033800 | -20 to +85°C | 3000 |
FA-20H 40.000000MHz 10.0 +10.0 -10.0 | Q24FA20H0006900 | -30 to +85°C | 3000 |
FA-20H 12.000000MHz 10.0 +10.0 -10.0 | Q24FA20H0068700 | -40 to +85°C | 3000 |
FA-20H 32.000000MHz 10.0 +10.0 -10.0 | Q24FA20H0021700 | -40 to +85°C | 3000 |
FA-20H 20.000000MHz 10.0 +10.0 -10.0 | Q24FA20H0076100 | -40 to +85°C | 3000 |
FA-20H 26.000000MHz 12.0 +10.0 -10.0 | Q24FA20H0031500 | -40 to +85°C | 3000 |
FA-20H 24.000000MHz 12.0 +10.0 -10.0 | Q24FA20H0024200 | -40 to +85°C | 3000 |
FA-20H 24.000000MHz 18.0 +10.0 -10.0 | Q24FA20H0033900 | -40 to +85°C | 3000 |
FA-20H 26.000000MHz 9.0 +10.0 -10.0 | Q24FA20H0028900 | -40 to +85°C | 3000 |
FA-20H 24.000000MHz | Q24FA20H0070000 | -40 to +85°C | 3000 |
FA-20H 19.200000MHz 7.0 +10.0 -10.0 | Q24FA20H0029700 | -40 to +85°C | 3000 |
FA-20H 24.000000MHz | Q24FA20H0035700 | -40 to +85°C | 3000 |
FA-20H 27.000000MHz 12.0 +10.0 -10.0 | Q24FA20H0023800 | -40 to +85°C | 3000 |
FA-20H 33.868000MHz 12.0 +20.0 -20.0 | Q24FA20H0081200 | -40 to +105°C | 3000 |
FA-20H 24.000000MHz 8.0 +30.0 -30.0 | Q24FA20H0059400 | -30 to +85°C | 3000 |
FA-20H 24.576000MHz 8.0 +10.0 -10.0 | Q24FA20H0013200 | -20 to +75°C | 3000 |
FA-20H 25.000000MHz 18.0 +30.0 -30.0 | Q24FA20H0011600 | -30 to +85°C | 3000 |
FA-20H 32.000000MHz 9.0 +10.0 -10.0 | Q24FA20H0072700 | -20 to +75°C | 3000 |
FA-20H 40.000000MHz 9.0 +10.0 -10.0 | Q24FA20H0020900 | -40 to +85°C | 3000 |
FA-20H 30.000000MHz 12.0 +10.0 -10.0 | Q24FA20H0022300 | -40 to +85°C | 3000 |
FA-20H 16.000000MHz 9.0 +10.0 -10.0 | Q24FA20H0012200 | -40 to +85°C | 3000 |
FA-20H 16.000000MHz 16.0 +10.0 -10.0 | Q24FA20H0024700 | -40 to +85°C | 3000 |
FA-20H 12.000000MHz 10.0 +30.0 -30.0 | Q24FA20H0015200 | -20 to +75°C | 3000 |
FA-20H 24.000000MHz 20.0 +30.0 -30.0 | Q24FA20H0042200 | -20 to +75°C | 3000 |
FA-20H 26.000000MHz 10.0 +10.0 -10.0 | Q24FA20H0019300 | -40 to +85°C | 3000 |
FA-20H 12.000000MHz 10.0 +20.0 -20.0 | Q24FA20H0038600 | -20 to +75°C | 3000 |
FA-20H 16.000000MHz 12.0 +20.0 -20.0 | Q24FA20H0023200 | -40 to +85°C | 3000 |
FA-20H 26.000000MHz 8.0 +10.0 -10.0 | Q24FA20H0013700 | -20 to +85°C | 3000 |
FA-20H 48.000000MHz 7.0 +50.0 -50.0 | Q24FA20H0000800 | -20 to +75°C | 3000 |
FA-20H 32.000000MHz 12.0 +10.0 -10.0 | Q24FA20H0047800 | -40 to +85°C | 3000 |
FA-20H 32.000000MHz 16.0 +10.0 -10.0 | Q24FA20H0038000 | -40 to +85°C | 3000 |
FA-20H 40.000000MHz 8.0 +10.0 -10.0 | Q24FA20H0002900 | -20 to +75°C | 3000 |
FA-20H 16.000000MHz | Q24FA20H0042600 | -40 to +85°C | 3000 |
FA-20H 40.000000MHz 8.0 +10.0 -10.0 | Q24FA20H0039600 | -40 to +85°C | 3000 |
FA-20H 40.000000MHz | Q24FA20H0068200 | -40 to +85°C | 3000 |
FA-20H 24.000000MHz 8.0 +10.0 -10.0 | Q24FA20H0067300 | -20 to +75°C | 3000 |
FA-20H 25.000000MHz 10.0 +10.0 -10.0 | Q24FA20H0011400 | -40 to +85°C | 3000 |
FA-20H 32.000000MHz 12.0 +10.0 -10.0 | Q24FA20H0010600 | -20 to +75°C | 3000 |
FA-20H 27.120000MHz 18.0 +10.0 -10.0 | Q24FA20H0011800 | -20 to +75°C | 3000 |
FA-20H 16.000000MHz 9.0 +20.0 -20.0 | Q24FA20H0005300 | -20 to +75°C | 3000 |
FA-20H 16.000000MHz 10.0 +10.0 -10.0 | Q24FA20H0061500 | -40 to +85°C | 3000 |
FA-20H 20.000000MHz | Q24FA20H0021500 | -40 to +85°C | 3000 |
FA-20H 24.000000MHz 10.0 +10.0 -10.0 | Q24FA20H0009200 | -40 to +85°C | 3000 |
· 频率范围:12 MHz to 54 MHz

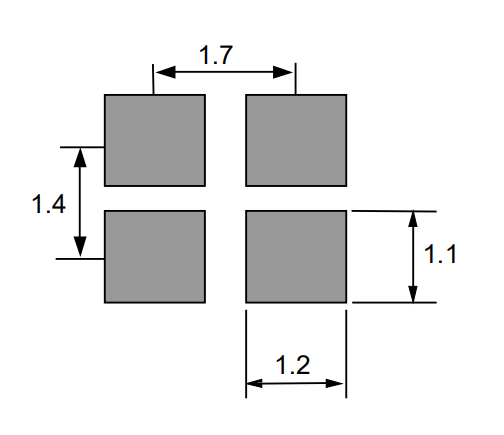

· 外部尺寸:2.5 × 2.0 × 0.55mm
· 谐波次数:基频
· 应用:
手机、蓝牙、W-LAN
ISM波段收音机,MPU时钟
l 手机、蓝牙、W-LAN
l ISM波段收音机,MPU时钟
规格 (特征)
项目 | 符号 | 规格说明 | 条件/备注 | |
For RF Reference | For Clock | |||
额定频率范围 | f_nom | 12.000MHz to 54.000MHz | Fundamental Please contact us for inquiries regarding the available frequencies. | |
储存温度 | T_stg | -40°C to +125°C | Store as bare product. | |
工作温度 | T_use | -40°C to +85°C (+105 °C) | Please contact us about +85 °C < T_use | |
激励功率 | DL | 100µW Max. | 200µW Max. | Recommended: 1µW to 100µW |
频率公差 | f_tol | ±10 × 10-6*1 | ±30 × 10-6 | +25°C Please contact us for inquiries. |
频率与温度特性 (标准) | f_tem | ±10 × 10-6*1 | ±30 × 10-6 | -20°C to +75°C Please contact us for inquiries. |
负载电容 | CL | 6pF to ∞ | Please specify. | |
串联电阻(ESR) | R1 | As per below table | -20°C to +75°C | |
频率老化 | f_age | ±1 × 10-6 to ±3 × 10-6 / year Max. *1 | +25°C, First year |
*1 Please contact us for inquiries regarding available frequency tolerance.
串联电阻 (ESR)
频率 | 串联电阻 |
12.0MHz ≤ f_nom < 16.0MHz | 150Ω Max. |
16.0MHz ≤ f_nom ≤ 25.0MHz | 80Ω Max. |
25.0MHz < f_nom ≤ 30.0MHz | 60Ω Max. |
30.0MHz < f_nom ≤ 35.0MHz | 50Ω Max. |
35.0MHz < f_nom ≤ 54.0MHz | 40Ω Max. |
产品名称 FA-20H 24.000000MHz 12.0 +10.0-10.0
(标准形式) ① ② ③ ④
①Model ②Frequency ③Load capacitance (pF) ④Frequency tolerance (×10-6, +25 °C)
产品料号
FA-20H Q22FA20H0xxxx00
① ② ③ ④ ⑤
① 晶体器件 ② 型号 ③ 环境代码(0:欧盟RoHS / 2: 无铅)
④ 详细规格 ⑤ 包装规格(00:推荐包装2K pcs/Reel)
