频率范围:12 MHz to 50 MHz

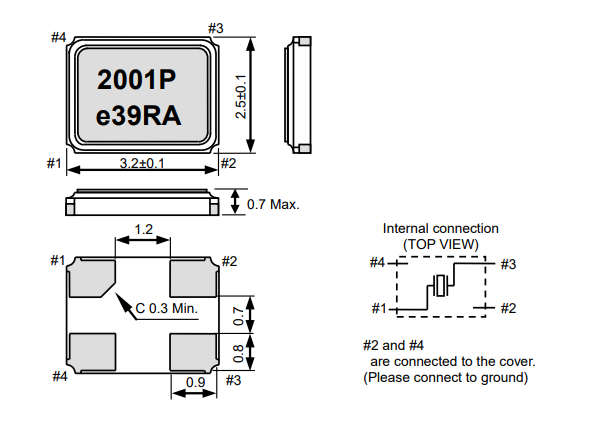

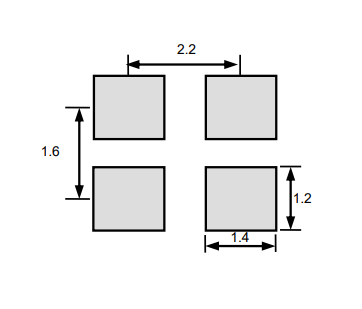

外部尺寸:3.2 × 2.5 × 0.7mm
谐波次数:基频
应用:汽车音响、ECU时钟、汽车导航系统、车载多媒体、仪表,遥控门锁
AEC-Q200 compliant

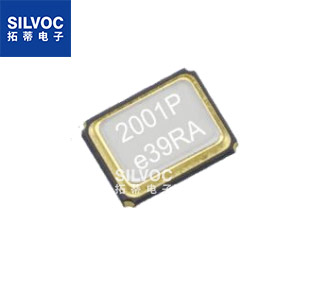

FA-238A :EPSON(爱普生) 车载用MHz范围晶体单元,超小型薄型SMD
常用参数列表如下:
规格型号 | 料号 | 温度范围 | MOQ(pcs) |
FA-238A 27.600000MHz | X1E000341034000 | -40 to +85°C | 4000 |
FA-238A 16.000000MHz | X1E000341031600 | -40 to +85°C | 4000 |
FA-238A 16.000000MHz 10.0 +20.0 -20.0 | X1E000341027300 | -30 to +85°C | 4000 |
FA-238A 24.305000MHz | X1E000341028100 | -40 to +85°C | 4000 |
FA-238A 25.000000MHz | X1E000341011600 | -40 to +85°C | 4000 |
FA-238A 27.600000MHz | X1E000341018200 | -40 to +85°C | 4000 |
FA-238A 27.000000MHz 16.0 +20.0 -20.0 | X1E000341022700 | -40 to +85°C | 4000 |
FA-238A 25.000000MHz 16.0 +10.0 -10.0 | X1E000341021700 | -40 to +85°C | 4000 |
FA-238A 18.432000MHz 16.0 +10.0 -10.0 | X1E000341022400 | -40 to +85°C | 4000 |
FA-238A 22.579200MHz 18.0 +10.0 -10.0 | X1E000341021600 | -40 to +85°C | 4000 |
FA-238A 22.579200MHz 10.0 +50.0 -50.0 | X1E000341019900 | -40 to +85°C | 4000 |
FA-238A 16.000000MHz | X1E000341007800 | -40 to +85°C | 4000 |
FA-238A 20.000000MHz 10.0 +50.0 -50.0 | X1E000341005500 | -40 to +85°C | 4000 |
FA-238A 20.000000MHz | X1E000341006600 | -40 to +85°C | 4000 |
FA-238A 16.000000MHz | X1E000341003700 | -40 to +85°C | 4000 |
FA-238A 24.000000MHz | X1E000341022300 | -40 to +85°C | 4000 |
FA-238A 62.400000MHz | X1E000341015500 | -40 to +85°C | 4000 |
FA-238A 16.000000MHz | X1E000341019800 | -40 to +85°C | 4000 |
FA-238A 27.000000MHz | X1E000341019100 | -40 to +85°C | 4000 |
FA-238A 12.000000MHz | X1E000341005900 | -40 to +85°C | 4000 |
FA-238A 20.000000MHz | X1E000341028800 | -40 to +85°C | 4000 |
· 频率范围:12 MHz to 50 MHz
· 外部尺寸:3.2 × 2.5 × 0.7mm
· 谐波次数:基频
· 应用:汽车音响、ECU时钟、汽车导航系统、车载多媒体、仪表,遥控门锁
· AEC-Q200 compliant
l 汽车音响、ECU时钟、时钟,
l 汽车导航系统,
l 仪表,遥控门锁
规格 (特征)
项目 | 符号 | 规格说明 | 条件/备注 |
额定频率范围 | f_nom | 12.000MHz to 50.000MHz | Fundamental |
储存温度 | T_stg | -40°C to +125°C | Store as single product. |
工作温度 | T_use | -40°C to +125°C | |
激励功率 | DL | 200µW Max. | Recommended: 1 to 100µW |
频率公差 | f_tol | ±15 × 10-6 to ±50 × 10-6 | +25°C |
频率与温度特性 (标准) | f_tem | ±30 × 10-6/-40°C to +70°C | Please contact us for requirements not listed in this specifications. |
负载电容 | CL | 7pF to ∞ | Please specify. |
串联电阻(ESR) | R1 | As per below table | -40°C to +125°C, DL = 100µW |
频率老化 | f_age | ±5 × 10-6 / year Max. | +25°C, First year |
串联电阻 (ESR)
频率 | 串联电阻 |
12MHz ≤ f_nom < 13MHz | 120Ω Max. |
13MHz ≤ f_nom < 20MHz | 80Ω Max. |
20MHz ≤ f_nom ≤ 25MHz | 60Ω Max. |
25MHz ≤ f_nom ≤ 50MHz | 50Ω Max. |
产品名称 FA-238A 28.636360MHz 18.0 +15.0-15.0
(标准形式) ① ② ③ ④
①Model ②Frequency ③Load capacitance (pF) ④Frequency tolerance (×10-6, +25 °C)
产品料号
FA-238A X1E000341xxxx00
① ② ③ ④ ⑤
① 晶体器件 ② 型号 ③ 环境代码(1:欧盟RoHS / 2: 无铅)
④ 详细规格 ⑤ 包装规格(00:推荐包装4K pcs/Reel)
