温补晶振TCXO:TG1612SLN;外部尺寸:1.6×1.2×0.45 mm
输出频率:13MHz to 55.2 MHz;输出:削峰正弦波(Clipped Sine Wave)
电源电压:1.8 V Typ. / 2.8 V Typ. / 3.0 V Typ. / 3.3 V Typ.
功能:TCXO-Standby、VC-TCXO、TCXO
频率、温度特性:±0.5×10-6 Max.(-40°C to +85°C);±5.0×10-6 Max.(-85°C to +105°C)
特征:105°C和待机功能
TG1612SLN:爱普生(EPSON) 温补晶振TCXO、TCXO-Standby、VC-TCXO、高稳定性
TG1612SLN常用频率列表如下:
规格型号 | 料号 | MOQ (PCS) |
TG1612SLN 26.000000MHz ECGSNM | X1G005721070116 | 3000 |
TG1612SLN 26.000000MHz CCHSNM | X1G005721080116 | 3000 |
EPSON 温补晶振TCXO:TG1612SLN
• 输出频率:13 MHz to 55.2 MHz
• 输出:削波正弦波
• 电源电压:1.8 V Typ. / 2.8 V Typ. / 3.0 V Typ. /3.3 V Typ.
• 功能:TCXO-Standby、VC-TCXO、TCXO
• 频率、温度特性:
±0.5×10-6 Max.(-40°C to +85°C)
±5.0×10-6 Max.(-85°C to +105°C)
• 外部尺寸:1.6×1.2×0.45 mm
• 应用领域:
GNSS,智能手机
无线通信设备、LPWA、LTE、WiMAX、Wi-Fi、W-LAN、IoT等)
• 特征:105°C和待机功能
l 全球导航卫星系统(GNSS)
l 智能手机
l 无线通信设备
l LPWA、LTE、WiMAX、Wi-Fi、W-LAN、IoT物联网等
TG1612SLN使用爱普生开发和制造的IC和MHz基本晶体支持105°C和待机功能。
SLN系列结合了尺寸小、高度低、耐压力和模塑密封的单密封结构优势,非常适合物联网和工业应用。
规格 (特征)
项目 | 符号 | TCXO | TCXO-Standby | 条件 / 备注 | |
输出频率范围 | f0 | 13 MHz to 55.2 MHz | |||
26 MHz | Standard frequency | ||||
电源电压 | VCC | 1.8 V ±0.1 V / 2.8 V ±5 % / 3.0 V ±5 % / 3.3 V ±5 % | Supply voltage range :1.7 V to 3.63 V | ||
储存温度 | T_stg | -40°C to +125°C | Storage as single product. | ||
工作温度 | T_use | G: -40°C to +85°C H: -40 °C to +105 °C | |||
频率稳定度 | f_tol | ±2.0 × 10-6 Max. | After reflow, +25 °C | ||
频率/温度特性 | f0-TC | C: ±0.5 × 10-6 Max. / -40 °C to +85 °C W: C and ±5.0 × 10-6 Max. / +85 °C to +105 °C (Option) | Standard stability version Customized product (Option) | ||
频率/负载系数 | f0-Load | ±0.2× 10-6 Max. | 10 kΩ // 10 pF ±10 % | ||
频率/电压系数 | f0-VCC | ±0.2 × 10-6 Max. | VCC ± 5 % | ||
频率老化 | f_age | ±1.0 × 10-6 Max. | +25 °C, First year, 13 MHz≤ f0 ≤20 MHz, 26 MHz≤ f0 ≤40 MHz | ||
±1.5 × 10-6 Max. | +25 °C ,First year, 20MHz < f0< 26 MHz, 40MHz < f0≤ 55.2 MHz | ||||
功耗 | ICC | 1.5 mA Max. | 13MHz <f0 ≤ 26 MHz (-40 to +85 °C) | ||
1.7 mA Max. | 13MHz <f0 ≤ 26 MHz (-40 to +105 °C) | ||||
2.0 mA Max. | 26MHz < f0 ≤ 38.4 MHz (-40 to +105 °C) | ||||
2.5 mA Max. | 38.4 MHz < f0 ≤ 55.2 MHz (-40 to +105 °C) | ||||
待机电流 | I_std | — | 3 μA Max. | /ST = GND | |
输入电压 | VIH | — | 80 % Vcc Min. | /ST terminal | |
VIL | — | 20 % Vcc Max. | /ST terminal | ||
占空比 | SYM | 45% to 60% | GND level (DC cut) | ||
输出电压 | VPP | 0.8 V Min. | Peak to Peak | ||
启动时间 | t_str | 2.0 ms Max. | T=0 at 90% Vcc | ||
输出负载 | Load_R | 10 kΩ | DC cut capacitor = 0.01 µF | ||
Load_C | 10 pF | ||||
TG1612SLN晶振产品名称参数:
(1) 产品名称 (标准形式)
TG1612SLN 26.000000MHz E W H S N M
① ② ③ ④ ⑤ ⑥⑦⑧⑨
① Model ② Output (S: Clipped sine wave) ③ Frequency
④ Supply voltage (Refer to symbol table)
⑤ Frequency / temperature characteristics (C: ±0.5 × 10-6 Max., F: ±2.0 × 10-6 Max., W: ±0.5 × 10-6 Max. and ±5.0 × 10-6 Max.)
⑥ Operating temperature (G: -40 °C to +85 °C, H: -40 °C to +105 °C)
⑦ Standby function (N: Non, S: Standby)
⑧ VC function (Refer to symbol table, N: Non for TCXO)
⑨ Internal identification code ("M" is default)
④ Supply voltage [VCC], ⑧ VC function [Vc] (symbol table) | ||||
④,⑧Type: Function | Suffix symbol: Voltage(Typ.) [V] | |||
④ VCC: Common | E:1.8 | B:2.8 | A:3.0 | C:3.3 |
⑧ VC: VC-TCXO Only | B:0.9 | C:1.4 | D:1.5 | E:1.65 |
(2) 产品型号/ 产品编码 (Blank section is decided by each detail specifications.)
TG1612SLN X1G005721xxxx16
① ② ③ ④ ⑤
① Crystal devices ② Model ③ Pb free code(1:EU RoHS / 2: Pb free)
④ Detail specifications ⑤ Packing(Recommended packing 16:3K pcs/Reel)
Frequency | Part number | |
[MHz] | TG1612SLN (Size: 1.6 x 1.2) ±0.5 x10-6 (-40 °C to +85 °C), ±5.0 x10-6 (+85 °C to +105 °C) Standby function | |
VCC = 1.8 V | VCC = 3.3 V | |
Suffix: EWHSNM | Suffix: CWHSNM | |
26 | X1G005721070116 | X1G005721080116 |

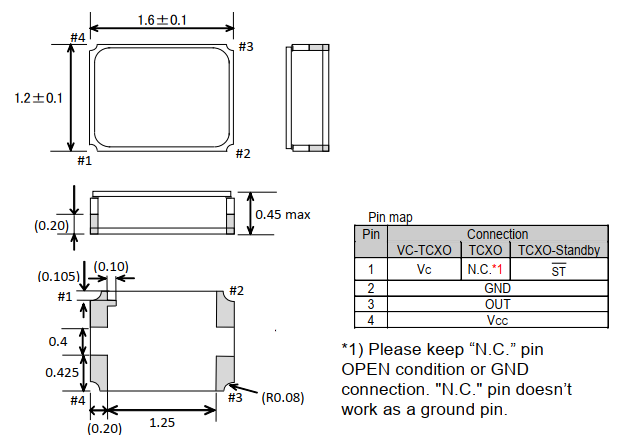

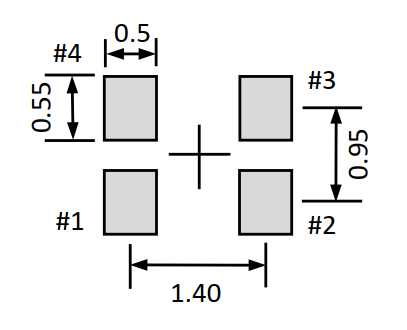

请保持“N.C.”引脚打开状态或GND连接。
“N.C.”引脚不能用作接地引脚。
为了稳定运行,请在Vcc和GND之间添加旁路电容器(0.01uF至0.1uF)。请尽可能靠近TCXO。
