频率范围:13MHz至20MHz,26MHz至40MHz
电源电压:1.8V、2.8V、3.0V、3.3V
频率/温度特性:±0.5×10-6 Max或±0.5×10-6 Max
外部尺寸:3.2×2.5×0.9mm
特点:高稳定性、低功耗(1.8V)

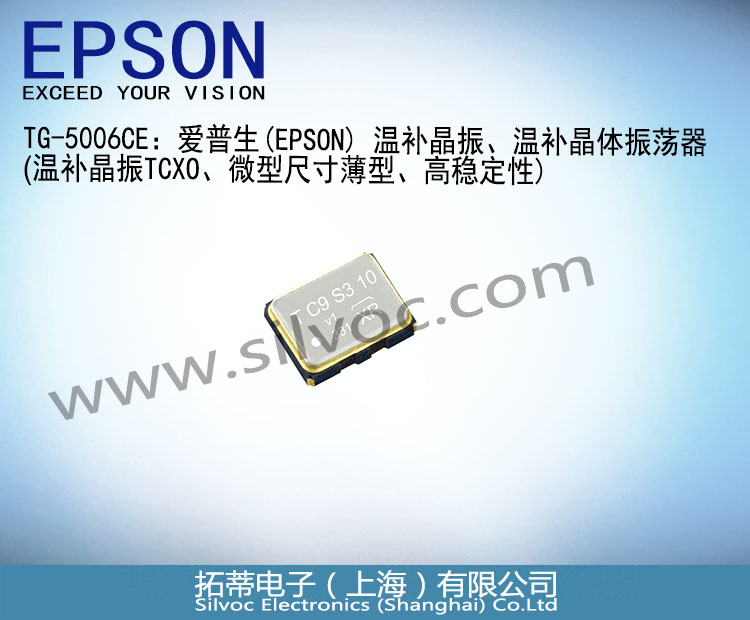

TG-5006CE:爱普生(EPSON) 温补晶振TCXO、微型尺寸薄型、高稳定性
TG-5006CE常用频率列表如下:
规格型号 | 产品编码 | MOQ (PCS) |
TG-5006CE 16.367667MHz | X1G004201000600 | 2000 |
TG-5006CE-17H 16.369000MHz | X1G004201000800 | 2000 |
TG-5006CE 19.200000MHz | X1G004201000900 | 2000 |
TG-5006CE 26.000000MHz | X1G004201001000 | 2000 |
TG-5006CE 16.367667MHz | X1G004201001300 | 2000 |
TG-5006CE-26L 26.000000MHz | X1G004201001700 | 2000 |
TG-5006CE-10V 26.000000MHz | X1G004201002000 | 2000 |
TG-5006CE 26.000000MHz | X1G004201002300 | 2000 |
TG-5006CE-39L 32.000000MHz | X1G004201002500 | 2000 |
TG-5006CE-12V 26.000000MHz | X1G004201002600 | 2000 |
TG-5006CE-40L 40.000000MHz | X1G004201002800 | 2000 |
TG-5006CE-49L 20.000000MHz | X1G004201003200 | 2000 |
TG-5006CE-52H 25.000000MHz | X1G004201003300 | 2000 |
TG-5006CE 32.000000MHz | X1G004201006200 | 2000 |
TG-5006CE-40H 40.000000MHz | X1G004201004900 | 2000 |
TG-5006CE-32V 13.000000MHz | X1G004201002100 | 2000 |
EPSON 温补晶振TCXO / VC-TCXO:TG-5006CE
•频率范围:13MHz 至 20MHz,26MHz 至 40MHz
•电源电压:1.8V / 2.8V / 3.0V / 3.3V
•频率/温度特性:±0.5×10-6 Max或±0.5×10-6 Max
•外部尺寸:3.2×2.5×0.9mm
•特点:高稳定性、低功耗(1.8V)
•应用:
GPS、无线通信设备(CDMA、WCDMA、LTE、WiMAX等)
l GPS、 RF
l 无线通信设备
l CDMA、WCDMA、LTE、WiMAX等等
规格 (特征)
项目 | 符号 | 规格 | 条件 / 备注 | |
VC-TCXO | TCXO | |||
输出频率范围 | f0 | 13.000 MHz to 20.000MHz | ||
16.367667 MHz, 16.368 MHz, 16.369 MHz, 19.2 MHz, 26 MHz and 38.4 MHz | Standard frequency | |||
电源电压 | VCC | 1.8 V ±0.1 V / 2.8 V ± 5 % / 3.0 V ± 5 % / 3.3 V ± 5 % | (Supply voltage range: 1.7V to 3.465V) | |
储存温度 | T_stg | -40°C to +90°C | Store as single product. | |
工作温度 | T_use | -30°C to +85°C | ||
频率稳定度 | f_tol | ±2.0 x 10-6 Max. | After reflow, VC=0.9V, +25°C | |
频率/温度特性 | fo-TC | ±0.5 x 10-6 Max./-30 °C to +85 °C | High stability version for GPS | |
±2.0 × 10-6 Max./-30 °C to +85 °C | Standard stability version | |||
频率/负载系数 | fo-Load | ±0.2 × 10-6 Max. | 10kΩ // 10pF ±10% | |
频率/电压系数 | fo-VCC | ±0.2 × 10-6 Max. | VCC ± 5 % | |
频率老化 | f_age | ±1.0 × 10-6 Max. | +25°C, First year | |
功耗 | ICC | 1.5mA Max. | 13 MHz≤f0≤26 MHz | |
2.0mA Max. | 26 MHz<f0≤40 MHz | |||
输入电阻 | Rin | 500kΩ Min. | - | VC- GND (DC) |
频率控制范围 | f_cont | ±5.0 × 10-6 to ±12.0 ×10-6 | - | VC=0.9V ± 0.6V (Vcc =1.8 V) or |
频率变化极性 | - | Positive polarity | - | |
占空比 | SYM | 40% to 60% | GND level (DC cut) | |
输出电压 | VPP | 0.8V Min. | Peak to peak | |
输出负载 | Load_R | 10kΩ | DC cut capacitor = 0.01µF | |
Load_C | 10pF |
*注:查询除上述规格以外的其他规格,请联系代理-拓蒂电子。
TG-5006CE晶振产品名称参数:
(1) 产品名称 (标准形式)
TG-5006CE-xxx 19.200000MHz
① ② ③ ④
① Model ② Package type ③ Spec segment (Please contact us) ④ Frequency
(2) 产品型号/ 产品编码 (Blank section is decided by each detail specifications.)
TG-5006CE-xxx 19.200000MHz X1G004201xxxx00
① ② ③ ④ ⑤
① Crystal devices ② Model ③ Pb free code(1:EU RoHS / 2: Pb free)
④ Detail specifications ⑤ Packing(Recommended packing 00:2000 pcs/Reel)

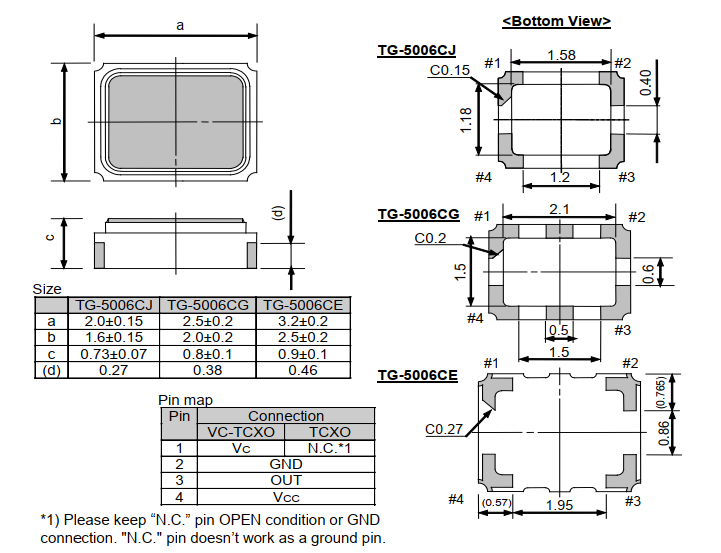

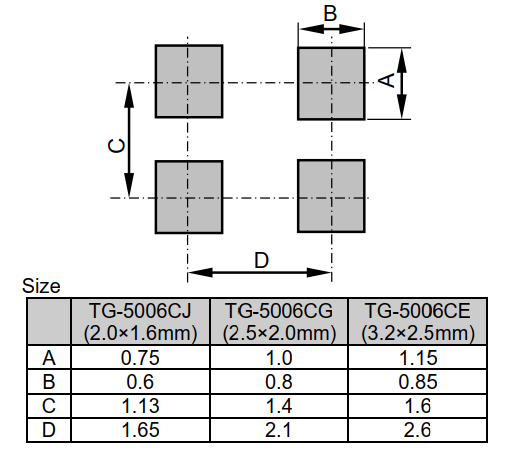

请保持“N.C.”引脚打开状态或GND连接。
“N.C.”引脚不能用作接地引脚。
为了稳定运行,请在Vcc和GND之间添加旁路电容器(0.01uF至0.1uF)。请尽可能靠近TCXO。
