输出频率: 1 MHz to 125 MHz
输出: CMOS
电压: 3.0 V / 3.3 V / 5.0V
功能: Output enable (OE) or Standby (/ST)
利用PLL技术,写入频率参数,快速交货
利用可编程工具 “SG-Writer II”写入频率参数

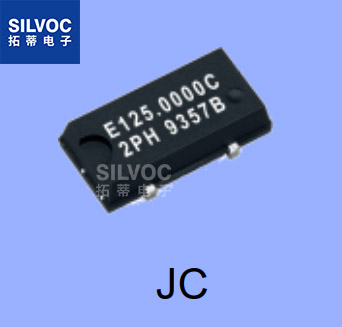

SG-8002JC(1-125MHZ):EPSON(爱普生)可编程晶振、晶体振荡器
规格型号 | 产品编码 | MOQ (PCS) |
SG-8002JC MP Blank | Q3307JC02000100 | 40PCS/TUBE |
封装和管脚都兼容 SG-636。
爱普生(EPSON)可编程晶振:SG-8002CA、SG-8002CE、SG-8002LB、SG-8002JF、SG-8002JF、SG-8002JA、SG-8002JC、SG-8002DC、SG-8002DB.
l 晶体振荡器 (可编程)
l 输出频率: 1 MHz to 125 MHz
l 输出: CMOS
l 电压: 3.0 V / 3.3 V / 5.0V
l 功能: Output enable (OE) or Standby (/ST)
l 利用PLL技术,写入频率参数,快速交货
l 利用可编程工具 “SG-Writer II”写入频率参数
l 尺寸: 3.2× 2.5 ×1.2 mm(SG-8002CE)、
7.0× 5.0 ×1.5 mm(SG-8002CA)、
5.0× 3.2 ×1.2mm(SG-8002LB)、
7.1× 5.1 × 1.5mm(SG-8002JF)
10.5× 5.8 ×2.7 mm(SG-8002JC)
14.0× 9.8 ×4.7 mm(SG-8002JA)
13.7× 6.6 ×5.3 mm(SG-8002DC)
19.8× 7.6 ×5.3mm(SG-8002DB)
l 物联网
l 仪器仪表
l 医疗、工业自动化等
l IoT
l Medical, Industrial automation
爱普生的SG-8002CA、SG-8002CE、SG-8002LB、SG-8002JF、SG-8002JF、SG-8002JA、SG-8002JC、SG-8002DC、SG-8002DB系列是具有CMOS输出的可编程晶体振荡器系列。 振荡器还可以采用以下流行的封装尺寸:3.2×2.5 mm、5.0×3.2 mm和7.0×5.0 mm。与同类产品相比,SG-8002系列振荡器可在多种环境条件下使用。这也将大大有助于加快开发周期和小批量生产。
规格 (特征)
项目 | 符号 | 规格说明 | 条件 | ||
PT / ST | PH / SH | PC / SC | |||
输出频率范围 | f0 | 1 MHz to 125 MHz | — | VCC = 4.5 V to 5.5 V (except SG-8002LB) | |
— | 1 MHz to 80 MHz | — | VCC= 4.5 V to 5.5 V (SG-8002LB only) | ||
— | — | 1 MHz to 125 MHz | VCC= 3.0 V to 3.6 V | ||
— | — | 1 MHz to 66.7MHz | VCC= 2.7 V to 3.6 V | ||
电源电压 | VCC | 4.5 V to 5.5 V | 2.7 V to 3.6 V | ||
储存温度
| T_stg | -55°C to +125 °C (SG-8002CA / JF / JA / DC / DB) | Storage as single product. | ||
-55°C to +100 °C (SG-8002JC) | |||||
-40 °C to +125 °C (SG-8002CE / LB) | |||||
工作温度 | T_use | 20°C to +70 °C / -40 °C to +85 °C | |||
频率稳定度 *1 | f_tol | B: ±50 x 10-6, C: ±100 x 10-6 | -20 °C to +70 °C | ||
M: ±100 x 10-6 | M: ±100 x 10-6 | -40°C to +85 °C (except SG-8002JC) *3 | |||
— | L: ±50 x 10-6 | L: ±50 x 10-6 | -40°C to +85°C (SG-8002LB only) *3 | ||
功耗 | ICC | 40 mA Max. (SG-8002CE) | 28 mA Max. | No load condition, Max. frequency | |
— | 30 mA Max. (SG-8002LB) | ||||
45 mA Max. (SG-8002CA / JF /JC / JA / DC / DB) | |||||
输出禁用电流 | I_dis | 30 mA Max. | 16 mA Max. | OE=GND (PT.PH,PC) (except SG-8002LB) | |
— | 25 mA Max. | 16 mA Max. | OE=GND (PH,PC) (SG-8002LB only) | ||
待机电流 | I_std | 50 µA Max. | /ST =GND (ST,SH,SC) | ||
占空比 | SYM | 40% to 60% | — | TTL load: 1.4 V, Max. load condition (except SG-8002LB) | |
— | 40% to 60% | CMOS load:50 % VCClevel, Max. load condition (except SG-8002LB) | |||
— | 40% to 60% | — | 50 % VCC, L_CMOS=15 pF,£80 MHz (SG-8002LB) | ||
— | — | 40% to 60% | 50 % VCC, L_CMOS=15 pF, VCC=3.0 V to 3.6 V, ≤125 MHz (SG-8002LB) | ||
— | — | 40% to 60% | 50 % VCC, L_CMOS=15 pF, VCC=2.7 V to 3.6 V, ≤66.7 MHz (SG-8002LB) | ||
45% to 55% | *1 | ||||
输出电压 | VOH | VCC -0.4 V Min. | IOH=-16 mA (PT,ST,PH,SH ) , -8 mA (PC,SC) | ||
VOL | 0.4 V Max. | IOL=16 mA (PT,ST,PH,SH) , 8 mA (PC,SC) | |||
输出负载条件 (TTL)*1 | L_TTL | 5 TTL Max. | Max. frequency and Max. Supply voltage (SG-8002CE / CA / JA / DC / DB) | ||
5 TTL Max. | f0≤90 MHz and Max. Supply voltage (SG-8002JF / JC ) | ||||
输出负载条件(CMOS)*1 | L_CMOS | 15 pF Max. | Max. frequency and Max. Supply voltage (SG-8002CE / JF / JC) | ||
— | 15 pF Max. | Max. frequency and Max. Supply voltage (SG-8002LB) | |||
15 pF Max. | 25 pF Max. | 15 pF Max. | Max. frequency and Max. Supply voltage (SG-8002CA / JA / DC / DB) | ||
输入电压 | VIH | 2.0 V Min. | 70 % VCC Min. | OE terminal or ST terminal | |
VIL | 0.8 V Max. | 20 % VCC Max. | |||
上升/下降时间*1 | tr/ tf | 4ns Max. | — | TTL load: 0.4 V to 2.4 V level (except SG-8002LB) | |
— | 3ns Max. | CMOS load: 20 % VCCto 80 % VCClevel | |||
启用时间 | t_str | 10ms Max. | Time at minimum supply voltage to be 0s | ||
频率老化 | f_aging | ±5 × 10-6 / year Max. | +25°C, VCC=5.0 V/ 3.3 V (PC,SC) First year |
*1有关以下信息:工作温度、可用频率、占空比、输出负载条件和上升/下降时间,请参阅“规格书”。
*2有关PLL-PLL连接和抖动规格,请参阅“抖动规格和特性表”页面。
*3关于公差“M”和“L”的可用性,请参考“规格书”。精工爱普生网站上的“频率检查”程序也可用。

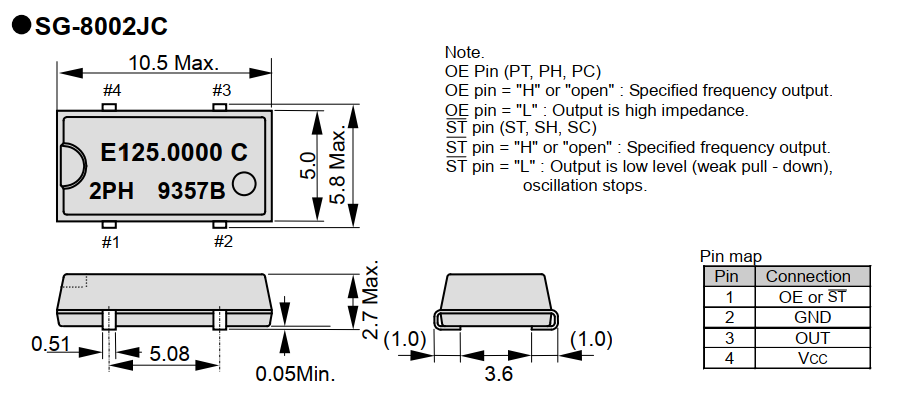

Pin | Name | I/O type | Function | |
1 | OE | Input | Output enable | 高:OUT引脚的指定频率输出 低:输出引脚低(弱下拉),只有输出驱动器被禁用。 |
ST | Input | Standby | 高:OUT引脚的指定频率输出 低:输出引脚低(弱下拉) 设备进入待机模式。电源电流降低至the least值I_std。 | |
2 | GND | Power | Ground | |
3 | OUT | Output | Clock output | |
4 | VCC | Power | Power supply |
*2请不要在打开状态下使用OE/S̅T̅终端。
SG-8002系列晶振产品名称参数:
(1) Product Name SG-8002JC 25.000000MHZ P C M
(Standard Form) ① ② ③ ④ ⑤⑥
① Model ② Size(CE:3.2*2.5) ③ Frequency ④ Function (P: Output enable, S:Standby)
⑤ Supply voltage ⑥Frequency tolerance / Operating temperature
② Size | |
CE | 3.2 mm × 2.5 mm |
LB | 5.0 mm × 3.2 mm |
CA | 7.0 mm × 5.0 mm |
JF | 7.1 mm × 1.5 mm |
JC | 10.5 mm × 5.0 mm |
JA | 14.0 mm × 9.8 mm |
DC | 13.7 mm × 6.6 mm |
DB | 19.8 mm × 6.36 mm |
⑤ Supply voltage | |
T, H | 5.0V Type |
C | 3.0 / 3.3 V Typ. |
⑥ Frequency tolerance / Operating temperature | |
B | ±50 × 10-6 / -20 °C to +70 °C |
C | ±100 × 10-6 / -20 °C to +70 °C |
L | ±50 × 10-6 / -40 °C to +85 °C |
M | ±100 × 10-6 / -40 °C to +85 °C |
(2) Product Number (Blank section is decided by each detail specifications.)
SG-8002CE Q3321CExxxxxx00
SG-8002CA Q3309CAx0xxxx00
SG-8002LB Q3323LBxxxxxx00
SG-8002JF Q3308JFx2xxxx00
SG-8002JC Q3307JCx2xxxx00
SG-8002JA Q3306JAx2xxxx00
SG-8002DC Q3204DCx2xxxx00
SG-8002DB Q3203DBx2xxxx00
① ② ③ ④⑤
① Crystal devices ② Model ③ Pb free code(1:EU RoHS / 2: Pb free)
④ Detail specifications
⑤ Packing(00:Recommended packing,
CA / JF :1K pcs/Reel, CE / LB:2K pcs/Reel, DC:35 pcs/Tube, JA:40PCS/TUBE,DB:25PCS/TUBE)
为了保持稳定运行,在尽可能靠近晶体产品电源端子的位置(VCC-GND之间)提供0.1µF旁路电容器。
规格型号 | 产品编码 | MOQ (PCS) |
SG-8002JC MP Blank | Q3307JC02000100 | 40PCS/TUBE |
SG-8002JC 1.843200MHz PHB | Q3307JC21000100 | 40PCS/TUBE |
SG-8002JC 5.000000MHz PHB | Q3307JC21000200 | 40PCS/TUBE |
SG-8002JC 7.372800MHz PHB | Q3307JC21000300 | 40PCS/TUBE |
SG-8002JC 12.000000MHz PHB | Q3307JC21000500 | 40PCS/TUBE |
SG-8002JC 12.288000MHz PHB | Q3307JC21000600 | 40PCS/TUBE |
SG-8002JC 14.745600MHz PHB | Q3307JC21000700 | 40PCS/TUBE |
SG-8002JC 16.000000MHz PHB | Q3307JC21000800 | 40PCS/TUBE |
SG-8002JC 16.384000MHz PHB | Q3307JC21000900 | 40PCS/TUBE |
SG-8002JC 18.432000MHz PHB | Q3307JC21001000 | 40PCS/TUBE |
SG-8002JC 19.660800MHz PHB | Q3307JC21001100 | 40PCS/TUBE |
SG-8002JC 20.000000MHz PHB | Q3307JC21001200 | 40PCS/TUBE |
SG-8002JC 25.000000MHz PHB | Q3307JC21001300 | 40PCS/TUBE |
SG-8002JC 32.000000MHz PHB | Q3307JC21001600 | 40PCS/TUBE |
SG-8002JC 40.000000MHz PHB | Q3307JC21001700 | 40PCS/TUBE |
SG-8002JC 56.448000MHz PHB | Q3307JC21001800 | 40PCS/TUBE |
SG-8002JC 1.000000MHz PHC | Q3307JC21002000 | 40PCS/TUBE |
SG-8002JC 3.579000MHz PHC | Q3307JC21002100 | 40PCS/TUBE |
SG-8002JC 4.096000MHz PHC | Q3307JC21002200 | 40PCS/TUBE |
SG-8002JC 4.915200MHz PHC | Q3307JC21002300 | 40PCS/TUBE |
SG-8002JC 5.000000MHz PHC | Q3307JC21002400 | 40PCS/TUBE |
SG-8002JC 6.451200MHz PHC | Q3307JC21002500 | 40PCS/TUBE |
SG-8002JC 7.372800MHz PHC | Q3307JC21002700 | 40PCS/TUBE |
SG-8002JC 8.000000MHz PHC | Q3307JC21002800 | 40PCS/TUBE |
SG-8002JC 10.000000MHz PHC | Q3307JC21003000 | 40PCS/TUBE |
SG-8002JC 10.140000MHz PHC | Q3307JC21003100 | 40PCS/TUBE |
SG-8002JC 12.000000MHz PHC | Q3307JC21003300 | 40PCS/TUBE |
SG-8002JC 14.318000MHz PHC | Q3307JC21003500 | 40PCS/TUBE |
SG-8002JC 14.318180MHz PHC | Q3307JC21003600 | 40PCS/TUBE |
SG-8002JC 14.745600MHz PHC | Q3307JC21003700 | 40PCS/TUBE |
SG-8002JC 15.359990MHz PHC | Q3307JC21003800 | 40PCS/TUBE |
SG-8002JC 16.000000MHz PHC | Q3307JC21003900 | 40PCS/TUBE |
SG-8002JC 18.000000MHz PHC | Q3307JC21004200 | 40PCS/TUBE |
SG-8002JC 19.660800MHz PHC | Q3307JC21004300 | 40PCS/TUBE |
SG-8002JC 19.958400MHz PHC | Q3307JC21004500 | 40PCS/TUBE |
SG-8002JC 24.000000MHz PHC | Q3307JC21004700 | 40PCS/TUBE |
SG-8002JC 24.576000MHz PHC | Q3307JC21004900 | 40PCS/TUBE |
SG-8002JC 25.000000MHz PHC | Q3307JC21005100 | 40PCS/TUBE |
SG-8002JC 29.000000MHz PHC | Q3307JC21005500 | 40PCS/TUBE |
SG-8002JC 29.491200MHz PHC | Q3307JC21005600 | 40PCS/TUBE |
SG-8002JC 33.000000MHz PHC | Q3307JC21006000 | 40PCS/TUBE |
SG-8002JC 33.333300MHz PHC | Q3307JC21006200 | 40PCS/TUBE |
SG-8002JC 34.200000MHz PHC | Q3307JC21006300 | 40PCS/TUBE |
SG-8002JC 36.000000MHz PHC | Q3307JC21006400 | 40PCS/TUBE |
SG-8002JC 38.997650MHz PHC | Q3307JC21006600 | 40PCS/TUBE |
SG-8002JC 39.597010MHz PHC | Q3307JC21006800 | 40PCS/TUBE |
SG-8002JC 44.035000MHz PHC | Q3307JC21007200 | 40PCS/TUBE |
SG-8002JC 48.000000MHz PHC | Q3307JC21007500 | 40PCS/TUBE |
SG-8002JC 50.000000MHz PHC | Q3307JC21007700 | 40PCS/TUBE |
SG-8002JC 56.000000MHz PHC | Q3307JC21008100 | 40PCS/TUBE |
SG-8002JC 60.000000MHz PHC | Q3307JC21008200 | 40PCS/TUBE |
SG-8002JC 66.000000MHz PHC | Q3307JC21008300 | 40PCS/TUBE |
SG-8002JC 66.666700MHz PHC | Q3307JC21008400 | 40PCS/TUBE |
SG-8002JC 77.673000MHz PHC | Q3307JC21008600 | 40PCS/TUBE |
SG-8002JC 80.000000MHz PHC | Q3307JC21008700 | 40PCS/TUBE |
SG-8002JC 19.400000MHz PHC | Q3307JC21010700 | 40PCS/TUBE |
SG-8002JC 5.529600MHz PHC | Q3307JC21011300 | 40PCS/TUBE |
SG-8002JC 45.598120MHz PHC | Q3307JC21011900 | 40PCS/TUBE |
SG-8002JC 45.607240MHz PHC | Q3307JC21012000 | 40PCS/TUBE |
SG-8002JC 40.000000MHz PHC | Q3307JC21012200 | 40PCS/TUBE |
SG-8002JC 4.000000MHz PHC | Q3307JC21012300 | 40PCS/TUBE |
SG-8002JC 6.000000MHz PHB | Q3307JC21012400 | 40PCS/TUBE |
SG-8002JC 32.500000MHz PHC | Q3307JC21012500 | 40PCS/TUBE |
SG-8002JC 6.750000MHz PHC | Q3307JC21012700 | 40PCS/TUBE |
SG-8002JC 3.579545MHz PHB | Q3307JC21012800 | 40PCS/TUBE |
SG-8002JC 4.915200MHz PHB | Q3307JC21012900 | 40PCS/TUBE |
SG-8002JC 6.144000MHz PHC | Q3307JC21013200 | 40PCS/TUBE |
SG-8002JC 9.216000MHz PHC | Q3307JC21014300 | 40PCS/TUBE |
SG-8002JC 3.686400MHz PHC | Q3307JC21014400 | 40PCS/TUBE |
SG-8002JC 2.216700MHz PHC | Q3307JC21014500 | 40PCS/TUBE |
SG-8002JC 42.720000MHz PHC | Q3307JC21014600 | 40PCS/TUBE |
SG-8002JC 50.000000MHz PHB | Q3307JC21015100 | 40PCS/TUBE |
SG-8002JC 80.000000MHz PHB | Q3307JC21015300 | 40PCS/TUBE |
SG-8002JC 60.000000MHz PHB | Q3307JC21015400 | 40PCS/TUBE |
SG-8002JC 12.288000MHz PHC | Q3307JC21015500 | 40PCS/TUBE |
SG-8002JC 30.000000MHz PHC | Q3307JC21015600 | 40PCS/TUBE |
SG-8002JC 72.000000MHz PHC | Q3307JC21015800 | 40PCS/TUBE |
SG-8002JC 25.175000MHz PHC | Q3307JC21016100 | 40PCS/TUBE |
SG-8002JC 11.289600MHz PHC | Q3307JC21016200 | 40PCS/TUBE |
SG-8002JC 9.830400MHz PHC | Q3307JC21016300 | 40PCS/TUBE |
SG-8002JC 16.384000MHz PHC | Q3307JC21016700 | 40PCS/TUBE |
SG-8002JC 7.159000MHz PHC | Q3307JC21016900 | 40PCS/TUBE |
SG-8002JC 24.575990MHz PHB | Q3307JC21017000 | 40PCS/TUBE |
SG-8002JC 3.328000MHz PHC | Q3307JC21017200 | 40PCS/TUBE |
SG-8002JC 8.000000MHz PHB | Q3307JC21017800 | 40PCS/TUBE |
SG-8002JC 48.000000MHz PHB | Q3307JC21018000 | 40PCS/TUBE |
SG-8002JC 18.432000MHz PHC | Q3307JC21018100 | 40PCS/TUBE |
SG-8002JC 29.491200MHz PHB | Q3307JC21018700 | 40PCS/TUBE |
SG-8002JC 7.000000MHz PHC | Q3307JC21018900 | 40PCS/TUBE |
SG-8002JC 37.697670MHz PHC | Q3307JC21019100 | 40PCS/TUBE |
SG-8002JC 39.321600MHz PHB | Q3307JC21019600 | 40PCS/TUBE |
SG-8002JC 15.997400MHz PHB | Q3307JC21019700 | 40PCS/TUBE |
SG-8002JC 24.576000MHz PHB | Q3307JC21019900 | 40PCS/TUBE |
SG-8002JC 22.505000MHz PHC | Q3307JC21020400 | 40PCS/TUBE |
SG-8002JC 7.175000MHz PHC | Q3307JC21020500 | 40PCS/TUBE |
SG-8002JC 3.686400MHz PHB | Q3307JC21020700 | 40PCS/TUBE |
SG-8002JC 64.000000MHz PHC | Q3307JC21020800 | 40PCS/TUBE |
SG-8002JC 37.900000MHz PHC | Q3307JC21021200 | 40PCS/TUBE |
SG-8002JC 2.457600MHz PHC | Q3307JC21021500 | 40PCS/TUBE |
SG-8002JC 15.974400MHz PHC | Q3307JC21021900 | 40PCS/TUBE |
SG-8002JC 15.000000MHz PHC | Q3307JC21022000 | 40PCS/TUBE |
SG-8002JC 28.636000MHz PHC | Q3307JC21022400 | 40PCS/TUBE |
SG-8002JC 49.152000MHz PHC | Q3307JC21022800 | 40PCS/TUBE |
SG-8002JC 46.900000MHz PHC | Q3307JC21023500 | 40PCS/TUBE |
SG-8002JC 26.800000MHz PHC | Q3307JC21023700 | 40PCS/TUBE |
SG-8002JC 1.843200MHz PHC | Q3307JC21023900 | 40PCS/TUBE |
SG-8002JC 3.579500MHz PHB | Q3307JC21024000 | 40PCS/TUBE |
SG-8002JC 10.000000MHz PHB | Q3307JC21024500 | 40PCS/TUBE |
SG-8002JC 120.000000MHz PHC | Q3307JC21024600 | 40PCS/TUBE |
SG-8002JC 18.000000MHz PHB | Q3307JC21024900 | 40PCS/TUBE |
SG-8002JC 4.192400MHz PHC | Q3307JC21025700 | 40PCS/TUBE |
SG-8002JC 8.004100MHz PHC | Q3307JC21025900 | 40PCS/TUBE |
SG-8002JC 6.000000MHz PHC | Q3307JC21026500 | 40PCS/TUBE |
SG-8002JC 7.159090MHz PHB | Q3307JC21026600 | 40PCS/TUBE |
SG-8002JC 14.318180MHz PHB | Q3307JC21026700 | 40PCS/TUBE |
SG-8002JC 22.118400MHz PHC | Q3307JC21026800 | 40PCS/TUBE |
SG-8002JC 6.758400MHz PHC | Q3307JC21027200 | 40PCS/TUBE |
SG-8002JC 33.330000MHz PHC | Q3307JC21027300 | 40PCS/TUBE |
SG-8002JC 1.000000MHz PHB | Q3307JC21027500 | 40PCS/TUBE |
SG-8002JC 17.280000MHz PHC | Q3307JC21027600 | 40PCS/TUBE |
SG-8002JC 36.864000MHz PHB | Q3307JC21027700 | 40PCS/TUBE |
SG-8002JC 24.000000MHz PHB | Q3307JC21027800 | 40PCS/TUBE |
SG-8002JC 13.560000MHz PHB | Q3307JC21028200 | 40PCS/TUBE |
SG-8002JC 36.000000MHz PHB | Q3307JC21028800 | 40PCS/TUBE |
SG-8002JC 10.240000MHz PHB | Q3307JC21029000 | 40PCS/TUBE |
SG-8002JC 6.144000MHz PHB | Q3307JC21029100 | 40PCS/TUBE |
SG-8002JC 15.360000MHz PHB | Q3307JC21029200 | 40PCS/TUBE |
SG-8002JC 19.200000MHz PHB | Q3307JC21029300 | 40PCS/TUBE |
SG-8002JC 26.800000MHz PHB | Q3307JC21029400 | 40PCS/TUBE |
SG-8002JC 32.768000MHz PHB | Q3307JC21029600 | 40PCS/TUBE |
SG-8002JC 45.864000MHz PHC | Q3307JC21029800 | 40PCS/TUBE |
SG-8002JC 2.294000MHz PHC | Q3307JC21029900 | 40PCS/TUBE |
SG-8002JC 4.000000MHz PHB | Q3307JC21030300 | 40PCS/TUBE |
SG-8002JC 36.864000MHz PHC | Q3307JC21030500 | 40PCS/TUBE |
SG-8002JC 25.804800MHz PHC | Q3307JC21030800 | 40PCS/TUBE |
SG-8002JC 3.072000MHz PHC | Q3307JC21031100 | 40PCS/TUBE |
SG-8002JC 2.000000MHz PHB | Q3307JC21031500 | 40PCS/TUBE |
SG-8002JC 12.500000MHz PHC | Q3307JC21032400 | 40PCS/TUBE |
SG-8002JC 27.000000MHz PHB | Q3307JC21033400 | 40PCS/TUBE |
SG-8002JC 33.333000MHz PHC | Q3307JC21034000 | 40PCS/TUBE |
SG-8002JC 24.545390MHz PHC | Q3307JC21034400 | 40PCS/TUBE |
SG-8002JC 49.090800MHz PHB | Q3307JC21034600 | 40PCS/TUBE |
SG-8002JC 23.000000MHz PHC | Q3307JC21035200 | 40PCS/TUBE |
SG-8002JC 1.056000MHz PHC | Q3307JC21035900 | 40PCS/TUBE |
SG-8002JC 22.000000MHz PHC | Q3307JC21036500 | 40PCS/TUBE |
SG-8002JC 16.934400MHz PHB | Q3307JC21038200 | 40PCS/TUBE |
SG-8002JC 39.321600MHz PHC | Q3307JC21038500 | 40PCS/TUBE |
SG-8002JC 15.360000MHz PHC | Q3307JC21038600 | 40PCS/TUBE |
SG-8002JC 27.648000MHz PHC | Q3307JC21038700 | 40PCS/TUBE |
SG-8002JC 6.400000MHz PHC | Q3307JC21039000 | 40PCS/TUBE |
SG-8002JC 17.734475MHz PHB | Q3307JC21039100 | 40PCS/TUBE |
SG-8002JC 45.630670MHz PHC | Q3307JC21039200 | 40PCS/TUBE |
SG-8002JC 67.737600MHz PHC | Q3307JC21039300 | 40PCS/TUBE |
SG-8002JC 7.175000MHz PHB | Q3307JC21039500 | 40PCS/TUBE |
SG-8002JC 9.830400MHz PHB | Q3307JC21040100 | 40PCS/TUBE |
SG-8002JC 42.370000MHz PHC | Q3307JC21040200 | 40PCS/TUBE |
SG-8002JC 22.579000MHz PHC | Q3307JC21040400 | 40PCS/TUBE |
SG-8002JC 79.749400MHz PHC | Q3307JC21040800 | 40PCS/TUBE |
SG-8002JC 2.875800MHz PHC | Q3307JC21040900 | 40PCS/TUBE |
SG-8002JC 7.274667MHz PHC | Q3307JC21041000 | 40PCS/TUBE |
SG-8002JC 3.615910MHz PHC | Q3307JC21041200 | 40PCS/TUBE |
SG-8002JC 65.000000MHz PHC | Q3307JC21041500 | 40PCS/TUBE |
SG-8002JC 7.159100MHz PHC | Q3307JC21041600 | 40PCS/TUBE |
SG-8002JC 11.059200MHz PHC | Q3307JC21041800 | 40PCS/TUBE |
SG-8002JC 43.333140MHz PHC | Q3307JC21042000 | 40PCS/TUBE |
SG-8002JC 12.200000MHz PHC | Q3307JC21042900 | 40PCS/TUBE |
SG-8002JC 2.000000MHz PHC | Q3307JC21043600 | 40PCS/TUBE |
SG-8002JC 64.000000MHz PHB | Q3307JC21044000 | 40PCS/TUBE |
SG-8002JC 25.641020MHz PHC | Q3307JC21044100 | 40PCS/TUBE |
SG-8002JC 49.000000MHz PHC | Q3307JC21044200 | 40PCS/TUBE |
SG-8002JC 18.486210MHz PHC | Q3307JC21045000 | 40PCS/TUBE |
SG-8002JC 15.729000MHz PHB | Q3307JC21046300 | 40PCS/TUBE |
SG-8002JC 27.600000MHz PHC | Q3307JC21046400 | 40PCS/TUBE |
SG-8002JC 6.336000MHz PHC | Q3307JC21046800 | 40PCS/TUBE |
SG-8002JC 19.998000MHz PHC | Q3307JC21047600 | 40PCS/TUBE |
SG-8002JC 2.048000MHz PHC | Q3307JC21047700 | 40PCS/TUBE |
SG-8002JC 28.000000MHz PHC | Q3307JC21048700 | 40PCS/TUBE |
SG-8002JC 14.000000MHz PHC | Q3307JC21051500 | 40PCS/TUBE |
SG-8002JC 13.516180MHz PHC | Q3307JC21051600 | 40PCS/TUBE |
SG-8002JC 22.118400MHz PHB | Q3307JC21051700 | 40PCS/TUBE |
SG-8002JC 77.700000MHz PHC | Q3307JC21052300 | 40PCS/TUBE |
SG-8002JC 17.536000MHz PHC | Q3307JC21052800 | 40PCS/TUBE |
SG-8002JC 17.792000MHz PHC | Q3307JC21053100 | 40PCS/TUBE |
SG-8002JC 3.200000MHz PHC | Q3307JC21053500 | 40PCS/TUBE |
SG-8002JC 3.456000MHz PHC | Q3307JC21053800 | 40PCS/TUBE |
SG-8002JC 66.600000MHz PHC | Q3307JC21057400 | 40PCS/TUBE |
SG-8002JC 6.758390MHz PHC | Q3307JC21058900 | 40PCS/TUBE |
SG-8002JC 1.024000MHz PHB | Q3307JC21059100 | 40PCS/TUBE |
SG-8002JC 1.228800MHz PHB | Q3307JC21059200 | 40PCS/TUBE |
SG-8002JC 45.570770MHz PHC | Q3307JC21059600 | 40PCS/TUBE |
SG-8002JC 17.340000MHz PHC | Q3307JC21060800 | 40PCS/TUBE |
SG-8002JC 3.579550MHz PHC | Q3307JC21061200 | 40PCS/TUBE |
SG-8002JC 108.985000MHz PHC | Q3307JC21062400 | 40PCS/TUBE |
SG-8002JC 55.333300MHz PHB | Q3307JC21063800 | 40PCS/TUBE |
SG-8002JC 24.545000MHz PHC | Q3307JC21064100 | 40PCS/TUBE |
SG-8002JC 9.600000MHz PHC | Q3307JC21064600 | 40PCS/TUBE |
SG-8002JC 15.500000MHz PHC | Q3307JC21064900 | 40PCS/TUBE |
SG-8002JC 31.948800MHz PHB | Q3307JC21065300 | 40PCS/TUBE |
SG-8002JC 14.967080MHz PHC | Q3307JC21066600 | 40PCS/TUBE |
SG-8002JC 15.560000MHz PHC | Q3307JC21067000 | 40PCS/TUBE |
SG-8002JC 49.090900MHz PHB | Q3307JC21067700 | 40PCS/TUBE |
SG-8002JC 10.500000MHz PHC | Q3307JC21069900 | 40PCS/TUBE |
SG-8002JC 38.060000MHz PHC | Q3307JC21070400 | 40PCS/TUBE |
SG-8002JC 11.796480MHz PHC | Q3307JC21071900 | 40PCS/TUBE |
SG-8002JC 7.159100MHz PHB | Q3307JC21073300 | 40PCS/TUBE |
SG-8002JC 3.579540MHz PHC | Q3307JC21074100 | 40PCS/TUBE |
SG-8002JC 63.720000MHz PHB | Q3307JC21074300 | 40PCS/TUBE |
SG-8002JC 62.880000MHz PHB | Q3307JC21074400 | 40PCS/TUBE |
SG-8002JC 40.544400MHz PHB | Q3307JC21074600 | 40PCS/TUBE |
SG-8002JC 31.580000MHz PHB | Q3307JC21074700 | 40PCS/TUBE |
SG-8002JC 7.000000MHz PHB | Q3307JC21075100 | 40PCS/TUBE |
SG-8002JC 11.520000MHz PHC | Q3307JC21077600 | 40PCS/TUBE |
SG-8002JC 5.500000MHz PHC | Q3307JC21079300 | 40PCS/TUBE |
SG-8002JC 70.000000MHz PHC | Q3307JC21079500 | 40PCS/TUBE |
SG-8002JC 14.360000MHz PHC | Q3307JC21079700 | 40PCS/TUBE |
SG-8002JC 11.000000MHz PHC | Q3307JC21079800 | 40PCS/TUBE |
SG-8002JC 12.500000MHz PHB | Q3307JC21080400 | 40PCS/TUBE |
SG-8002JC 5.848000MHz PHB | Q3307JC21080700 | 40PCS/TUBE |
SG-8002JC 4.915000MHz PHB | Q3307JC21080800 | 40PCS/TUBE |
SG-8002JC 19.440000MHz PHC | Q3307JC21081800 | 40PCS/TUBE |
SG-8002JC 13.107200MHz PHB | Q3307JC21084500 | 40PCS/TUBE |
SG-8002JC 81.000000MHz PHB | Q3307JC21084600 | 40PCS/TUBE |
SG-8002JC 103.000000MHz PHC | Q3307JC21084900 | 40PCS/TUBE |
SG-8002JC 15.997000MHz PHB | Q3307JC21085000 | 40PCS/TUBE |
SG-8002JC 48.335700MHz PHC | Q3307JC21085400 | 40PCS/TUBE |
SG-8002JC 21.052600MHz PHB | Q3307JC21085900 | 40PCS/TUBE |
SG-8002JC 2.457600MHz PHB | Q3307JC21087100 | 40PCS/TUBE |
SG-8002JC 10.688000MHz PHC | Q3307JC21087200 | 40PCS/TUBE |
SG-8002JC 23.332230MHz PHC | Q3307JC21087400 | 40PCS/TUBE |
SG-8002JC 23.346240MHz PHC | Q3307JC21087500 | 40PCS/TUBE |
SG-8002JC 23.350910MHz PHC | Q3307JC21087600 | 40PCS/TUBE |
SG-8002JC 6.488064MHz PHC | Q3307JC21087700 | 40PCS/TUBE |
SG-8002JC 18.888800MHz PHC | Q3307JC21088000 | 40PCS/TUBE |
SG-8002JC 23.961600MHz PHC | Q3307JC21088100 | 40PCS/TUBE |
SG-8002JC 29.952000MHz PHC | Q3307JC21088200 | 40PCS/TUBE |
SG-8002JC 16.034500MHz PHC | Q3307JC21088400 | 40PCS/TUBE |
SG-8002JC 81.911040MHz PHB | Q3307JC21088500 | 40PCS/TUBE |
SG-8002JC 19.800000MHz PHC | Q3307JC21088600 | 40PCS/TUBE |
SG-8002JC 16.254000MHz PHC | Q3307JC21088700 | 40PCS/TUBE |
SG-8002JC 3.686000MHz PHC | Q3307JC21088900 | 40PCS/TUBE |
SG-8002JC 7.168500MHz PHC | Q3307JC21089200 | 40PCS/TUBE |
SG-8002JC 4.915000MHz PHC | Q3307JC21089300 | 40PCS/TUBE |
SG-8002JC 16.034950MHz PHC | Q3307JC21089600 | 40PCS/TUBE |
SG-8002JC 8.500000MHz PHC | Q3307JC21089700 | 40PCS/TUBE |
SG-8002JC 14.756000MHz PHC | Q3307JC21089800 | 40PCS/TUBE |
SG-8002JC 6.389500MHz PHB | Q3307JC21089900 | 40PCS/TUBE |
SG-8002JC 7.980000MHz PHC | Q3307JC21090000 | 40PCS/TUBE |
SG-8002JC 16.666000MHz PHB | Q3307JC21090100 | 40PCS/TUBE |
SG-8002JC 1.280000MHz PHB | Q3307JC21090300 | 40PCS/TUBE |
SG-8002JC 11.648000MHz PHC | Q3307JC21090400 | 40PCS/TUBE |
SG-8002JC 13.696000MHz PHC | Q3307JC21090500 | 40PCS/TUBE |
SG-8002JC 1.800000MHz PHC | Q3307JC21090600 | 40PCS/TUBE |
SG-8002JC 8.320000MHz PHB | Q3307JC21090700 | 40PCS/TUBE |
SG-8002JC 15.616000MHz PHB | Q3307JC21090800 | 40PCS/TUBE |
SG-8002JC 16.670000MHz PHC | Q3307JC21090900 | 40PCS/TUBE |
SG-8002JC 1.125000MHz PHB | Q3307JC21091000 | 40PCS/TUBE |
