输出频率: 1 MHz to 125 MHz
输出: CMOS
电压: 3.0 V / 3.3 V / 5.0V
功能: Output enable (OE) or Standby (/ST)
利用PLL技术，写入频率参数，快速交货
利用可编程工具 “SG-Writer II”写入频率参数

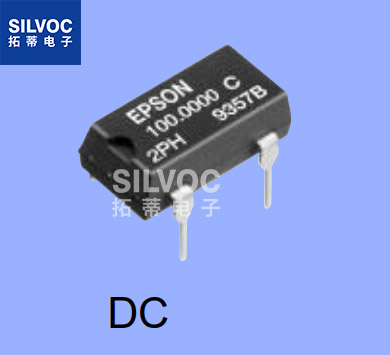

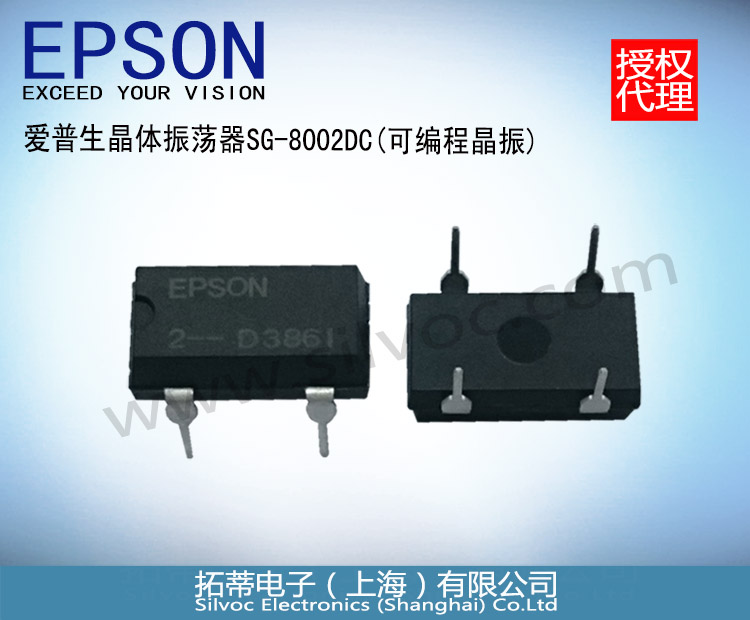

SG-8002DC (1-125MHZ)：EPSON(爱普生)可编程晶振、晶体振荡器
规格型号 | 产品编码 | MOQ (PCS) |
SG-8002DC MP Blank | Q3204DC02000100 | 35PCS/TUBE |
爱普生(EPSON)可编程晶振：SG-8002CA、SG-8002CE、SG-8002LB、SG-8002JF、SG-8002JF、SG-8002JA、SG-8002JC、SG-8002DC、SG-8002DB.
l 晶体振荡器 (可编程)
l 输出频率: 1 MHz to 125 MHz
l 输出: CMOS
l 电压: 3.0 V / 3.3 V / 5.0V
l 功能: Output enable (OE) or Standby (/ST)
l 利用PLL技术，写入频率参数，快速交货
l 利用可编程工具 “SG-Writer II”写入频率参数
l 尺寸: 3.2× 2.5 ×1.2 mm（SG-8002CE）、
7.0× 5.0 ×1.5 mm（SG-8002CA）、
5.0× 3.2 ×1.2mm（SG-8002LB）、
7.1× 5.1 × 1.5mm（SG-8002JF）
10.5× 5.8 ×2.7 mm（SG-8002JC）
14.0× 9.8 ×4.7 mm（SG-8002JA）

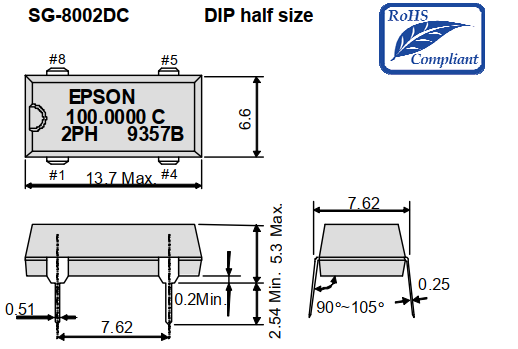

13.7× 6.6 ×5.3 mm（SG-8002DC）
19.8× 7.6 ×5.3mm（SG-8002DB）
l 物联网
l 仪器仪表
l 医疗、工业自动化等
l IoT
l Medical, Industrial automation
爱普生的SG-8002CA、SG-8002CE、SG-8002LB、SG-8002JF、SG-8002JF、SG-8002JA、SG-8002JC、SG-8002DC、SG-8002DB系列是具有CMOS输出的可编程晶体振荡器系列。 振荡器还可以采用以下流行的封装尺寸：3.2×2.5 mm、5.0×3.2 mm和7.0×5.0 mm。与同类产品相比，SG-8002系列振荡器可在多种环境条件下使用。这也将大大有助于加快开发周期和小批量生产。
规格 (特征)
项目 | 符号 | 规格说明 | 条件 | ||
PT / ST | PH / SH | PC / SC | |||
输出频率范围 | f0 | 1 MHz to 125 MHz | — | VCC = 4.5 V to 5.5 V (except SG-8002LB) | |
— | 1 MHz to 80 MHz | — | VCC= 4.5 V to 5.5 V (SG-8002LB only) | ||
— | — | 1 MHz to 125 MHz | VCC= 3.0 V to 3.6 V | ||
— | — | 1 MHz to 66.7MHz | VCC= 2.7 V to 3.6 V | ||
电源电压 | VCC | 4.5 V to 5.5 V | 2.7 V to 3.6 V | ||
储存温度
| T_stg | -55°C to +125 °C (SG-8002CA / JF / JA / DC / DB) | Storage as single product. | ||
-55°C to +100 °C (SG-8002JC) | |||||
-40 °C to +125 °C (SG-8002CE / LB) | |||||
工作温度 | T_use | 20°C to +70 °C / -40 °C to +85 °C | |||
频率稳定度 *1 | f_tol | B: ±50 x 10-6, C: ±100 x 10-6 | -20 °C to +70 °C | ||
M: ±100 x 10-6 | M: ±100 x 10-6 | -40°C to +85 °C (except SG-8002JC) *3 | |||
— | L: ±50 x 10-6 | L: ±50 x 10-6 | -40°C to +85°C (SG-8002LB only) *3 | ||
功耗 | ICC | 40 mA Max. (SG-8002CE) | 28 mA Max. | No load condition, Max. frequency | |
— | 30 mA Max. (SG-8002LB) | ||||
45 mA Max. (SG-8002CA / JF /JC / JA / DC / DB) | |||||
输出禁用电流 | I_dis | 30 mA Max. | 16 mA Max. | OE=GND (PT.PH,PC) (except SG-8002LB) | |
— | 25 mA Max. | 16 mA Max. | OE=GND (PH,PC) (SG-8002LB only) | ||
待机电流 | I_std | 50 µA Max. | /ST =GND (ST,SH,SC) | ||
占空比 | SYM | 40% to 60% | — | TTL load: 1.4 V, Max. load condition (except SG-8002LB) | |
— | 40% to 60% | CMOS load:50 % VCClevel, Max. load condition (except SG-8002LB) | |||
— | 40% to 60% | — | 50 % VCC, L_CMOS=15 pF,£80 MHz (SG-8002LB) | ||
— | — | 40% to 60% | 50 % VCC, L_CMOS=15 pF, VCC=3.0 V to 3.6 V, ≤125 MHz (SG-8002LB) | ||
— | — | 40% to 60% | 50 % VCC, L_CMOS=15 pF, VCC=2.7 V to 3.6 V, ≤66.7 MHz (SG-8002LB) | ||
45% to 55% | *1 | ||||
输出电压 | VOH | VCC -0.4 V Min. | IOH=-16 mA (PT,ST,PH,SH ) , -8 mA (PC,SC) | ||
VOL | 0.4 V Max. | IOL=16 mA (PT,ST,PH,SH) , 8 mA (PC,SC) | |||
输出负载条件 (TTL)*1 | L_TTL | 5 TTL Max. | Max. frequency and Max. Supply voltage (SG-8002CE / CA / JA / DC / DB) | ||
5 TTL Max. | f0≤90 MHz and Max. Supply voltage (SG-8002JF / JC ) | ||||
输出负载条件(CMOS)*1 | L_CMOS | 15 pF Max. | Max. frequency and Max. Supply voltage (SG-8002CE / JF / JC) | ||
— | 15 pF Max. | Max. frequency and Max. Supply voltage (SG-8002LB) | |||
15 pF Max. | 25 pF Max. | 15 pF Max. | Max. frequency and Max. Supply voltage (SG-8002CA / JA / DC / DB) | ||
输入电压 | VIH | 2.0 V Min. | 70 % VCC Min. | OE terminal or ST terminal | |
VIL | 0.8 V Max. | 20 % VCC Max. | |||
上升/下降时间*1 | tr/ tf | 4ns Max. | — | TTL load: 0.4 V to 2.4 V level (except SG-8002LB) | |
— | 3ns Max. | CMOS load: 20 % VCCto 80 % VCClevel | |||
启用时间 | t_str | 10ms Max. | Time at minimum supply voltage to be 0s | ||
频率老化 | f_aging | ±5 × 10-6 / year Max. | +25°C, VCC=5.0 V/ 3.3 V (PC,SC) First year | ||
*1有关以下信息：工作温度、可用频率、占空比、输出负载条件和上升/下降时间，请参阅“规格书”。
*2有关PLL-PLL连接和抖动规格，请参阅“抖动规格和特性表”页面。
*3关于公差“M”和“L”的可用性，请参考“规格书”。精工爱普生网站上的“频率检查”程序也可用。
Pin | Name | I/O type | Function | |
1 | OE | Input | Output enable | 高：OUT引脚的指定频率输出 低：输出引脚低（弱下拉），只有输出驱动器被禁用。 |
ST | Input | Standby | 高：OUT引脚的指定频率输出 低：输出引脚低（弱下拉） 设备进入待机模式。电源电流降低至the least值I_std。 | |
2 | GND | Power | Ground | |
3 | OUT | Output | Clock output | |
4 | VCC | Power | Power supply | |
*2请不要在打开状态下使用OE/S̅T̅终端。
SG-8002系列晶振产品名称参数：
(1) Product Name SG-8002DC 25.000000MHZ P C M
(Standard Form) ① ② ③ ④ ⑤⑥
① Model ② Size(CE:3.2*2.5) ③ Frequency ④ Function (P: Output enable, S:Standby)
⑤ Supply voltage ⑥Frequency tolerance / Operating temperature
② Size | |
CE | 3.2 mm × 2.5 mm |
LB | 5.0 mm × 3.2 mm |
CA | 7.0 mm × 5.0 mm |
JF | 7.1 mm × 1.5 mm |
JC | 10.5 mm × 5.0 mm |
JA | 14.0 mm × 9.8 mm |
DC | 13.7 mm × 6.6 mm |
DB | 19.8 mm × 6.36 mm |
⑤ Supply voltage | |
T, H | 5.0V Type |
C | 3.0 / 3.3 V Typ. |
⑥ Frequency tolerance / Operating temperature | |
B | ±50 × 10-6 / -20 °C to +70 °C |
C | ±100 × 10-6 / -20 °C to +70 °C |
L | ±50 × 10-6 / -40 °C to +85 °C |
M | ±100 × 10-6 / -40 °C to +85 °C |
(2) Product Number (Blank section is decided by each detail specifications.)
SG-8002CE Q3321CExxxxxx00
SG-8002CA Q3309CAx0xxxx00
SG-8002LB Q3323LBxxxxxx00
SG-8002JF Q3308JFx2xxxx00
SG-8002JC Q3307JCx2xxxx00
SG-8002JA Q3306JAx2xxxx00
SG-8002DC Q3204DCx2xxxx00
SG-8002DB Q3203DBx2xxxx00
① ② ③ ④⑤
① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）
④ Detail specifications
⑤ Packing（00：Recommended packing,
CA / JF :1K pcs/Reel, CE / LB:2K pcs/Reel, DC:35 pcs/Tube, JA:40PCS/TUBE））
为了保持稳定运行，在尽可能靠近晶体产品电源端子的位置（VCC-GND之间）提供0.1µF旁路电容器。
规格型号 | 产品编码 | MOQ (PCS) |
SG-8002DC MP Blank | Q3204DC02000100 | 35PCS/TUBE |
SG-8002DC 4.915200MHz PHB | Q3204DC21000100 | 35PCS/TUBE |
SG-8002DC 8.000000MHz PHB | Q3204DC21000200 | 35PCS/TUBE |
SG-8002DC 16.000000MHz PHB | Q3204DC21000300 | 35PCS/TUBE |
SG-8002DC 19.660800MHz PHB | Q3204DC21000400 | 35PCS/TUBE |
SG-8002DC 20.000000MHz PHB | Q3204DC21000500 | 35PCS/TUBE |
SG-8002DC 24.576000MHz PHB | Q3204DC21000600 | 35PCS/TUBE |
SG-8002DC 32.000000MHz PHB | Q3204DC21000700 | 35PCS/TUBE |
SG-8002DC 4.915200MHz PHC | Q3204DC21000900 | 35PCS/TUBE |
SG-8002DC 7.372800MHz PHC | Q3204DC21001000 | 35PCS/TUBE |
SG-8002DC 20.000000MHz PHC | Q3204DC21001400 | 35PCS/TUBE |
SG-8002DC 24.000000MHz PHC | Q3204DC21001500 | 35PCS/TUBE |
SG-8002DC 27.000000MHz PHC | Q3204DC21001600 | 35PCS/TUBE |
SG-8002DC 19.660800MHz PHM | Q3204DC21001800 | 35PCS/TUBE |
SG-8002DC 56.448000MHz PHC | Q3204DC21001900 | 35PCS/TUBE |
SG-8002DC 32.000000MHz PHC | Q3204DC21002500 | 35PCS/TUBE |
SG-8002DC 40.000000MHz PHC | Q3204DC21002600 | 35PCS/TUBE |
SG-8002DC 49.090800MHz PHB | Q3204DC21002700 | 35PCS/TUBE |
SG-8002DC 64.000000MHz PHC | Q3204DC21002900 | 35PCS/TUBE |
SG-8002DC 36.864000MHz PHC | Q3204DC21003000 | 35PCS/TUBE |
SG-8002DC 19.660800MHz PHC | Q3204DC21003400 | 35PCS/TUBE |
SG-8002DC 18.432000MHz PHC | Q3204DC21003500 | 35PCS/TUBE |
SG-8002DC 1.800000MHz PHC | Q3204DC21003600 | 35PCS/TUBE |
SG-8002DC 16.000000MHz PHC | Q3204DC21003700 | 35PCS/TUBE |
SG-8002DC 8.000000MHz PHC | Q3204DC21003900 | 35PCS/TUBE |
SG-8002DC 14.318180MHz PHC | Q3204DC21004000 | 35PCS/TUBE |
SG-8002DC 48.000000MHz PHC | Q3204DC21004100 | 35PCS/TUBE |
SG-8002DC 66.000000MHz PHB | Q3204DC21004300 | 35PCS/TUBE |
SG-8002DC 40.000000MHz PHB | Q3204DC21004400 | 35PCS/TUBE |
SG-8002DC 10.000000MHz PHC | Q3204DC21004800 | 35PCS/TUBE |
SG-8002DC 51.000000MHz PHC | Q3204DC21006000 | 35PCS/TUBE |
SG-8002DC 40.000000MHz PHM | Q3204DC21006100 | 35PCS/TUBE |
SG-8002DC 12.000000MHz PHC | Q3204DC21006400 | 35PCS/TUBE |
SG-8002DC 75.000000MHz PHC | Q3204DC21006600 | 35PCS/TUBE |
SG-8002DC 9.830400MHz PHC | Q3204DC21006700 | 35PCS/TUBE |
SG-8002DC 10.000000MHz PHB | Q3204DC21006800 | 35PCS/TUBE |
SG-8002DC 66.000000MHz PHC | Q3204DC21008200 | 35PCS/TUBE |
SG-8002DC 25.000000MHz PHC | Q3204DC21008300 | 35PCS/TUBE |
SG-8002DC 50.000000MHz PHC | Q3204DC21011400 | 35PCS/TUBE |
SG-8002DC 1.544000MHz PHB | Q3204DC21011500 | 35PCS/TUBE |
SG-8002DC 4.096000MHz PHB | Q3204DC21012600 | 35PCS/TUBE |
SG-8002DC 1.000000MHz PHC | Q3204DC21012700 | 35PCS/TUBE |
SG-8002DC 9.830400MHz PHB | Q3204DC21014300 | 35PCS/TUBE |
SG-8002DC 6.144000MHz PHC | Q3204DC21014600 | 35PCS/TUBE |
SG-8002DC 28.224000MHz PHC | Q3204DC21014800 | 35PCS/TUBE |
SG-8002DC 70.000000MHz PHB | Q3204DC21015100 | 35PCS/TUBE |
SG-8002DC 48.000000MHz PHB | Q3204DC21015700 | 35PCS/TUBE |
SG-8002DC 18.432000MHz PHB | Q3204DC21015900 | 35PCS/TUBE |
SG-8002DC 14.318180MHz PHB | Q3204DC21016800 | 35PCS/TUBE |
SG-8002DC 25.000000MHz PHM | Q3204DC21017200 | 35PCS/TUBE |
SG-8002DC 16.000000MHz PHM | Q3204DC21017400 | 35PCS/TUBE |
SG-8002DC 4.000000MHz PHM | Q3204DC21017700 | 35PCS/TUBE |
SG-8002DC 45.000000MHz PHB | Q3204DC21018000 | 35PCS/TUBE |
SG-8002DC 67.737600MHz PHC | Q3204DC21018300 | 35PCS/TUBE |
SG-8002DC 50.000000MHz PHM | Q3204DC21018500 | 35PCS/TUBE |
SG-8002DC 50.000000MHz PHB | Q3204DC21020200 | 35PCS/TUBE |
SG-8002DC 15.360000MHz PHB | Q3204DC21021000 | 35PCS/TUBE |
SG-8002DC 2.000000MHz PHC | Q3204DC21021300 | 35PCS/TUBE |
SG-8002DC 100.000000MHz PHC | Q3204DC21021800 | 35PCS/TUBE |
SG-8002DC 125.000000MHz PHC | Q3204DC21021900 | 35PCS/TUBE |
SG-8002DC 6.553500MHz PHM | Q3204DC21022000 | 35PCS/TUBE |
SG-8002DC 10.000000MHz PHM | Q3204DC21022300 | 35PCS/TUBE |
SG-8002DC 23.200000MHz PHC | Q3204DC21022600 | 35PCS/TUBE |
SG-8002DC 7.000000MHz PHC | Q3204DC21023500 | 35PCS/TUBE |
SG-8002DC 8.000000MHz PHM | Q3204DC21024500 | 35PCS/TUBE |
SG-8002DC 19.940000MHz PHB | Q3204DC21025000 | 35PCS/TUBE |
SG-8002DC 8.192000MHz PHB | Q3204DC21025500 | 35PCS/TUBE |
SG-8002DC 5.000000MHz PHB | Q3204DC21025900 | 35PCS/TUBE |
SG-8002DC 40.555396MHz PHC | Q3204DC21026200 | 35PCS/TUBE |
SG-8002DC 112.000000MHz PHB | Q3204DC21026300 | 35PCS/TUBE |
SG-8002DC 12.000000MHz PHB | Q3204DC21026700 | 35PCS/TUBE |
SG-8002DC 16.384000MHz PHB | Q3204DC21028100 | 35PCS/TUBE |
SG-8002DC 25.000000MHz PHB | Q3204DC21028900 | 35PCS/TUBE |
SG-8002DC 33.330000MHz PHC | Q3204DC21030800 | 35PCS/TUBE |
SG-8002DC 12.273000MHz PHC | Q3204DC21031300 | 35PCS/TUBE |
SG-8002DC 4.000000MHz PHB | Q3204DC21031500 | 35PCS/TUBE |
SG-8002DC 6.000000MHz PHB | Q3204DC21031800 | 35PCS/TUBE |
SG-8002DC 3.686400MHz PHB | Q3204DC21032400 | 35PCS/TUBE |
SG-8002DC 41.472000MHz PHC | Q3204DC21032500 | 35PCS/TUBE |
SG-8002DC 45.000000MHz PHC | Q3204DC21033500 | 35PCS/TUBE |
SG-8002DC 33.000000MHz PHB | Q3204DC21033900 | 35PCS/TUBE |
SG-8002DC 30.000000MHz PHB | Q3204DC21034000 | 35PCS/TUBE |
SG-8002DC 28.700000MHz PHC | Q3204DC21034900 | 35PCS/TUBE |
SG-8002DC 6.758400MHz PHB | Q3204DC21035300 | 35PCS/TUBE |
SG-8002DC 1.984000MHz PHB | Q3204DC21037400 | 35PCS/TUBE |
SG-8002DC 2.752000MHz PHC | Q3204DC21037600 | 35PCS/TUBE |
SG-8002DC 24.576000MHz PHC | Q3204DC21039000 | 35PCS/TUBE |
SG-8002DC 1.843200MHz PHC | Q3204DC21040600 | 35PCS/TUBE |
SG-8002DC 64.000000MHz PHB | Q3204DC21040700 | 35PCS/TUBE |
SG-8002DC 4.096000MHz PHC | Q3204DC21041600 | 35PCS/TUBE |
SG-8002DC 14.745600MHz PHC | Q3204DC21041900 | 35PCS/TUBE |
SG-8002DC 13.516800MHz PHC | Q3204DC21042400 | 35PCS/TUBE |
SG-8002DC 27.000000MHz PHB | Q3204DC21042600 | 35PCS/TUBE |
SG-8002DC 24.000000MHz PHB | Q3204DC21044200 | 35PCS/TUBE |
SG-8002DC 13.500000MHz PHC | Q3204DC21045500 | 35PCS/TUBE |
SG-8002DC 3.494400MHz PHB | Q3204DC21046200 | 35PCS/TUBE |
SG-8002DC 8.448000MHz PHM | Q3204DC21047700 | 35PCS/TUBE |
SG-8002DC 33.330000MHz PHB | Q3204DC21049700 | 35PCS/TUBE |
SG-8002DC 1.000000MHz PHB | Q3204DC21053300 | 35PCS/TUBE |
SG-8002DC 6.553675MHz PHB | Q3204DC21053600 | 35PCS/TUBE |
SG-8002DC 4.194304MHz PHB | Q3204DC21054900 | 35PCS/TUBE |
SG-8002DC 19.940001MHz PHC | Q3204DC21057100 | 35PCS/TUBE |
SG-8002DC 11.264000MHz PHB | Q3204DC21057900 | 35PCS/TUBE |
SG-8002DC 1.220000MHz PHB | Q3204DC21058700 | 35PCS/TUBE |
SG-8002DC 80.000000MHz PHB | Q3204DC21058800 | 35PCS/TUBE |
SG-8002DC 7.200000MHz PHC | Q3204DC21059100 | 35PCS/TUBE |
SG-8002DC 43.714200MHz PHC | Q3204DC21059400 | 35PCS/TUBE |
SG-8002DC 13.500000MHz PHM | Q3204DC21059500 | 35PCS/TUBE |
SG-8002DC 1.250000MHz PHM | Q3204DC21059600 | 35PCS/TUBE |
SG-8002DC 1.025000MHz PHM | Q3204DC21059700 | 35PCS/TUBE |
SG-8002DC 2.200000MHz PHM | Q3204DC21059800 | 35PCS/TUBE |
SG-8002DC 59.955200MHz PHC | Q3204DC21060000 | 35PCS/TUBE |
SG-8002DC 1.536000MHz PHB | Q3204DC21061000 | 35PCS/TUBE |
SG-8002DC 3.440000MHz PHC | Q3204DC21061100 | 35PCS/TUBE |
SG-8002DC 3.333333MHz PHC | Q3204DC21061200 | 35PCS/TUBE |
SG-8002DC 7.000000MHz PHB | Q3204DC21061300 | 35PCS/TUBE |
SG-8002DC 3.000000MHz PHB | Q3204DC21061400 | 35PCS/TUBE |
SG-8002DC 9.000000MHz PHB | Q3204DC21061500 | 35PCS/TUBE |
SG-8002DC 1.500000MHz PHB | Q3204DC21061600 | 35PCS/TUBE |
SG-8002DC 33.333000MHz PHB | Q3204DC21061700 | 35PCS/TUBE |
SG-8002DC 25.200000MHz PHC | Q3204DC21061900 | 35PCS/TUBE |
SG-8002DC 12.800000MHz PHB | Q3204DC21062100 | 35PCS/TUBE |
SG-8002DC 20.725000MHz PHC | Q3204DC21062300 | 35PCS/TUBE |
SG-8002DC 2.000000MHz PHM | Q3204DC21062500 | 35PCS/TUBE |
SG-8002DC 6.553600MHz PHB | Q3204DC21062600 | 35PCS/TUBE |
SG-8002DC 7.200000MHz PHB | Q3204DC21062700 | 35PCS/TUBE |
在线咨询
微信服务
