有源晶振，输出频率: 20种标准频率
输出: CMOS，电压: 1.60 V to 3.63 V，功能: Standby (/ST)
工作温度: -40 °C to +105 °C
外部尺寸: 2.0× 1.6 mm（SG2016CAN）、2.5× 2.0 mm（SG-210STF）、
3.2× 2.5 mm（SG3225CAN）、5.0× 3.2mm（SG5032CAN）、
7.0× 5.0 mm（SG7050CAN）

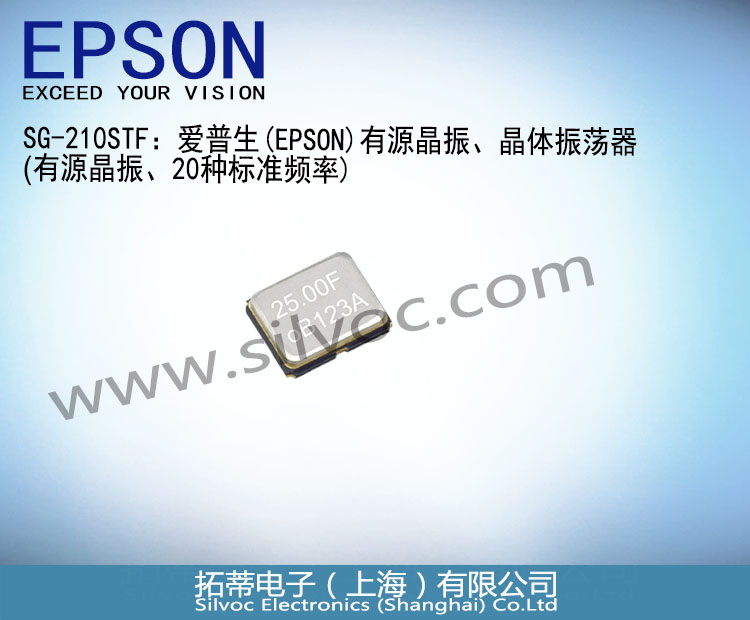

SG-210STF：爱普生 (EPSON)有源晶振
SG-210STF常用频率列表如下：
规格型号 | 产品编码 | MOQ (PCS) |
SG-210STF 4.000000MHz L | X1G004171000900 | 3000 |
SG-210STF 8.000000MHz L | X1G004171001500 | 3000 |
SG-210STF 10.000000MHz L | X1G004171001600 | 3000 |
SG-210STF 12.000000MHz L | X1G004171001800 | 3000 |
SG-210STF 12.288000MHz L | X1G004171001900 | 3000 |
SG-210STF 14.745600MHz L | X1G004171002500 | 3000 |
SG-210STF 16.000000MHz L | X1G004171002700 | 3000 |
SG-210STF 20.000000MHz L | X1G004171002900 | 3000 |
SG-210STF 24.000000MHz L | X1G004171003100 | 3000 |
SG-210STF 24.576000MHz L | X1G004171003200 | 3000 |
SG-210STF 25.000000MHz L | X1G004171003300 | 3000 |
SG-210STF 26.000000MHz L | X1G004171003400 | 3000 |
SG-210STF 27.000000MHz L | X1G004171003500 | 3000 |
SG-210STF 32.000000MHz L | X1G004171004000 | 3000 |
SG-210STF 33.330000MHz L | X1G004171011900 | 3000 |
SG-210STF 33.333300MHz L | X1G004171012000 | 3000 |
SG-210STF 40.000000MHz L | X1G004171004500 | 3000 |
SG-210STF 48.000000MHz L | X1G004171004600 | 3000 |
SG-210STF 50.000000MHz L | X1G004171004700 | 3000 |
SG-210STF 72.000000MHz L | X1G004171012400 | 3000 |
SG-210STF 4.000000MHz Y | X1G004171029900 | 3000 |
SG-210STF 8.000000MHz Y | X1G004171006900 | 3000 |
SG-210STF 10.000000MHz Y | X1G004171036500 | 3000 |
SG-210STF 12.000000MHz Y | X1G004171028000 | 3000 |
SG-210STF 12.288000MHz Y | X1G004171036600 | 3000 |
SG-210STF 14.745600MHz Y | X1G004171036700 | 3000 |
SG-210STF 16.000000MHz Y | X1G004171015400 | 3000 |
SG-210STF 20.000000MHz Y | X1G004171023800 | 3000 |
SG-210STF 24.000000MHz Y | X1G004171019700 | 3000 |
SG-210STF 24.576000MHz Y | X1G004171036800 | 3000 |
SG-210STF 25.000000MHz Y | X1G004171005900 | 3000 |
SG-210STF 26.000000MHz Y | X1G004171024400 | 3000 |
SG-210STF 27.000000MHz Y | X1G004171025000 | 3000 |
SG-210STF 32.000000MHz Y | X1G004171012700 | 3000 |
SG-210STF 33.330000MHz Y | X1G004171030000 | 3000 |
SG-210STF 33.333300MHz Y | X1G004171007500 | 3000 |
SG-210STF 40.000000MHz Y | X1G004171020600 | 3000 |
SG-210STF 48.000000MHz Y | X1G004171036900 | 3000 |
SG-210STF 50.000000MHz Y | X1G004171012600 | 3000 |
SG-210STF 72.000000MHz Y | X1G004171037100 | 3000 |
SG-210STF 12.000000MHz S | X1G004171016300 | 3000 |
SG-210STF 12.288000MHz S | X1G004171006100 | 3000 |
SG-210STF 20.000000MHz S | X1G004171021800 | 3000 |
SG-210STF 24.000000MHz S | X1G004171015600 | 3000 |
SG-210STF 25.000000MHz S | X1G004171007700 | 3000 |
SG-210STF 48.000000MHz S | X1G004171007800 | 3000 |
SG-210STF 50.000000MHz S | X1G004171007900 | 3000 |
SG-210STF 72.000000MHz S | X1G004171037000 | 3000 |
爱普生(EPSON)有源晶振: SG2016CAN、SG3225CAN、SG5032CAN、SG7050CAN、SG-210STF
l 有源晶振
l 输出频率: 20种标准频率
l 输出: CMOS
l 电压: 1.60 V to 3.63 V
l 功能: Standby (/ST)
l 工作温度: -40 °C to +105 °C

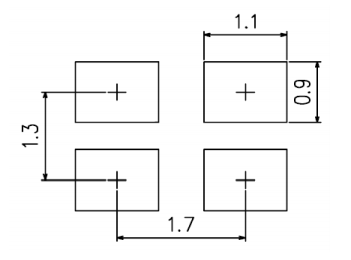

l 外部尺寸:
2.0× 1.6 mm（SG2016CAN）

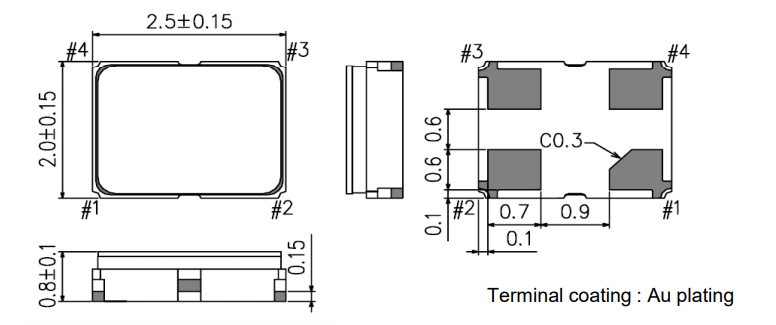

2.5× 2.0 mm（SG-210STF）、
3.2× 2.5 mm（SG3225CAN）、
5.0× 3.2mm（SG5032CAN）、
7.0× 5.0 mm（SG7050CAN）
● 物联网，可穿戴设备
● 数据中心、存储
● 医疗、工业自动化
爱普生(Epson)的SG2016CAN、SG3225CAN、SG5032CAN、SG7050CAN和SG-210STF是具有CMOS输出的简单封装晶体振荡器（SPXO）系列。这些SPXO是物联网、可穿戴设备、医疗、工业自动化等各种应用的理想选择。这些SPXO具有低电流消耗、1.6V至3.63V的宽工作电压和-40°C至85°C的宽工作温度范围，此外还可提供高达105°C的工作温度。这些SPXO有五种不同的封装尺寸，从2.0×1.6 mm到7.0×5.0 mm，并有标准引脚输出。
规格 (特征)
项目 | 符号 | 规格说明 | 条件 / 备注 | |||||||||||||||
输出频率范围 | f0 | 4 MHz, 8 MHz, 10 MHz, 12 MHz, 12.288 MHz,14.7456 MHz, 16 MHz, 20 MHz, 24 MHz, 24.576 MHz, 25 MHz, 26 MHz, 27 MHz, 32 MHz, 33.33 MHz, 33.3333 MHz, 40 MHz, 48 MHz, 50 MHz, 72 MHz | ||||||||||||||||
电源电压 | VCC | 1.60 to 3.63 V | 4MHz≤ fo ≤ 50 MHz, T_use = +105 °C Max. | Refer to Figure 1 | ||||||||||||||
1.71 to 3.63 V | f0=72 MHz, T_use = +85 °C Max | |||||||||||||||||
2.25 to 3.63 V | f0=72 MHz, T_use = +105 °C Max. | |||||||||||||||||
储存温度 | T_stg | -55°C to +125°C | SG2016CAN, SG3225CAN | |||||||||||||||
-40°C to +125°C | All others | |||||||||||||||||
工作温度 | T_use | -20 °C to +70 °C, -40 °C to +85 °C, -40 °C to +105 °C | See of figure *1 | |||||||||||||||
频率稳定度 | f_tol | ±25 × 10-6 | -20 °C to +70 °C | |||||||||||||||
±50 × 10-6 | -40 °C to +85 °C, -40 °C to +105 °C | |||||||||||||||||
功耗 | ICC | VCC=1.8V ± 10% | VCC=2.5V ± 10% | VCC=3.3V ± 10% | ||||||||||||||
1.5mA Max. | 1.6mA Max. | 1.8mA Max. | No load condition, 4 MHz≤ fo≤ 20 MHz | |||||||||||||||
1.8mA Max. | 2.0mA Max. | 2.2mA Max. | No load condition, 20 MHz < fo ≤ 40 MHz | |||||||||||||||
2.1mA Max. | 2.4mA Max. | 2.6mA Max. | No load condition, 40 MHz < fo ≤ 50 MHz | |||||||||||||||
2.4mA Max. | 2.8mA Max. | 3.0mA Max. | No load condition, fo = 72 MHz | |||||||||||||||
待机电流 | I_std | 2.1μA Max. | 2.5μA Max. | 2.7μA Max. | /ST = GND | |||||||||||||
占空比 | SYM | 45% to 55% | 50 % VCC level, L_CMOS≤15 pF | |||||||||||||||
输出电压 | VOH | 90% VCC Min. |
| |||||||||||||||
VOL | 10% VCC Max. | |||||||||||||||||
VOH-2 | VCC - 0.4 V Min. |
| ||||||||||||||||
VOL-2 | 0.4 V Max. | |||||||||||||||||
输出负载条件 | L_CMOS | 15pF Max. | ||||||||||||||||
输入电压 | VIH | 80% VCC Min. | /ST terminal | |||||||||||||||
VIL | 20% VCC Max. | |||||||||||||||||
上升/下降时间 | tr / tf | 3.0 ns Max. 3.5 ns Max. (@1.8 V±10 %) | 20% VCC to 80% VCC level, | |||||||||||||||
启动时间 | t_str | 3 ms Max. | T = 0 at 90 % VCC | |||||||||||||||
频率老化 | f_aging | ±3 × 10-6 / year Max. | +25 °C, First year | |||||||||||||||

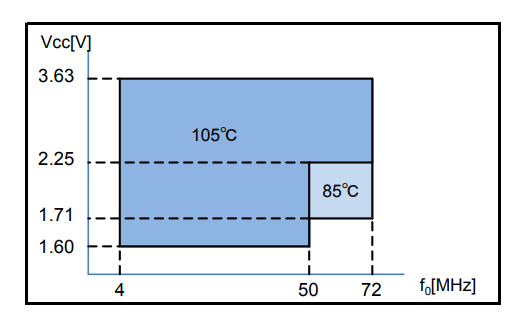

Figure 1：工作温度上限和相关条件
请注意，电源电压范围（VCC）取决于输出频率（fo）和操作温度上限（T_use Max）。
Pin | Name | I/O type | Function | |||||||||
1 | /ST | Input | /ST terminal
| |||||||||
2 | GND | Power | Ground | |||||||||
3 | OUT | Output | Clock output | |||||||||
4 | VCC | Power | Power supply |
SG7050CAN等系列晶振产品名称参数：
(1) 产品名称 (标准形式)
SG2016CAN 25.000000MHZ T J G A
SG3225CAN 25.000000MHZ T J G A
SG5032CAN 25.000000MHZ T J G A
SG7050CAN 25.000000MHZ T J G A
① ② ③ ④⑤⑥⑦
① Model ② Output(C: CMOS) ③ Frequency ④ Supply voltage
⑤ Frequency tolerance ⑥Operating temperature range
⑦ Internal identification code("A" is default)
④ Supply voltage *See Figure 1 | |
T | 1.8 V to 3.3 V Typ. |
K | 2.5 V to 3.3 V Typ. |
⑤Frequency tolerance / ⑥Operating temperature range | |
DB* | ±25 × 10-6 / -20 °C to +70 °C |
JG | ±50 × 10-6 / -40 °C to +85 °C |
JH | ±50 × 10-6 / -40 °C to +105 °C |
* Please refer to Product number list on Full Data Sheet for available frequencies
(2) 产品名称 (标准形式)
[Model : SG-210STF]
Product name SG-210STF 25.000000MHz L
(Standard form) ① ② ③ ④ ⑤
① Model ② Function(S:Standby) ③ Supply voltage ④ Frequency ⑤ Frequency tolerance
③ Supply voltage *See Figure 1 | |
T | 1.8 V to 3.3 V Typ. |
⑤Frequency tolerance / ⑥Operating temperature range | |
S* | ±25 × 10-6 / -20 °C to +70 °C |
L | ±50 × 10-6 / -40 °C to +85 °C |
Y | ±50 × 10-6 / -40 °C to +105 °C |
* Please refer to Product number list on Full Data Sheet for available frequencies
(3) 产品型号和编码规则 (Blank section is decided by each detail specifications.)
SG2016CAN X1G004801xxxx00
SG3225CAN X1G005961xxxx15
SG5032CAN X1G004451xxxx00
SG7050CAN X1G004481xxxx00
SG-210STF X1G004171xxxx00
① ② ③ ④ ⑤
① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）
④ Detail specifications
⑤ Packing（00：Recommended packing）
SG2016CAN:3000 pcs/Reel; SG3225CAN: 2000 pcs/Reel; SG5032CAN:1000 pcs/Reel; SG7050CAN: 1000 pcs/Reel; SG-210STF: 3000 pcs/Reel
(4) 产品型号 / 产品编码
(4.1) SG2016CAN产品编码
SG2016CAN Frequency [MHz] | SG2016CAN Frequency tolerance / Operating temperature | ||
DB | JG | JH | |
±25 × 10-6 -20 °C to +70 °C | ±50 × 10-6 -40 °C to +85 °C | ±50 × 10-6 -40 °C to +105 °C | |
4 | — | X1G004801003000 | X1G004801004900 |
8 | — | X1G004801004500 | X1G004801004600 |
10 | — | X1G004801002900 | X1G004801002700 |
12 | X1G004801005000 | X1G004801000700 | X1G004801005100 |
12.288 | X1G004801005200 | X1G004801004400 | X1G004801005300 |
14.7456 | — | X1G004801005400 | X1G004801005500 |
16 | — | X1G004801001400 | X1G004801005600 |
20 | X1G004801005700 | X1G004801005800 | X1G004801001800 |
24 | X1G004801005900 | X1G004801000200 | X1G004801004000 |
24.576 | — | X1G004801006000 | X1G004801003100 |
25 | X1G004801002400 | X1G004801001200 | X1G004801003500 |
26 | — | X1G004801000300 | X1G004801003900 |
27 | — | X1G004801006100 | X1G004801002100 |
32 | — | X1G004801006200 | X1G004801006300 |
33.33 | — | X1G004801006400 | X1G004801006500 |
33.3333 | — | X1G004801002600 | X1G004801006600 |
40 | — | X1G004801006700 | X1G004801003600 |
48 | X1G004801006800 | X1G004801002000 | X1G004801006900 |
50 | X1G004801007000 | X1G004801001300 | X1G004801002800 |
72 | X1G004801007100 | X1G004801007200 | X1G004801007300 |
(4.2) SG3225CAN产品编码
SG3225CAN Frequency [MHz] | SG3225CAN Frequency tolerance / Operating temperature | ||
DB | JG | JH | |
±25 × 10-6 -20 °C to +70 °C | ±50 × 10-6 -40 °C to +85 °C | ±50 × 10-6 -40 °C to +105 °C | |
4 | — | X1G005961001115 | X1G005961001215 |
8 | — | X1G005961000415 | X1G005961001315 |
10 | — | X1G005961000515 | X1G005961001415 |
12 | X1G005961001515 | X1G005961000615 | X1G005961001516 |
12.288 | X1G005961001715 | X1G005961001815 | X1G005961001915 |
14.7456 | — | X1G005961002015 | X1G005961002115 |
16 | — | X1G005961002215 | X1G005961002315 |
20 | X1G005961002415 | X1G005961000715 | X1G005961002515 |
24 | X1G005961002615 | X1G005961000115 | X1G005961002715 |
24.576 | — | X1G005961000815 | X1G005961002815 |
25 | X1G005961002915 | X1G005961000215 | X1G005961003015 |
26 | — | X1G005961003115 | X1G005961003215 |
27 | — | X1G005961003315 | X1G005961003415 |
32 | — | X1G005961003515 | X1G005961003615 |
33.33 | — | X1G005961003715 | X1G005961003815 |
33.3333 | — | X1G005961003915 | X1G005961004015 |
40 | — | X1G005961000915 | X1G005961004115 |
48 | X1G005961004215 | X1G005961000315 | X1G005961004315 |
50 | X1G005961004415 | X1G005961001015 | X1G005961004515 |
72 | X1G005961004615 | X1G005961004715 | X1G005961004815 |
(4.3) SG5032CAN产品编码
SG5032CAN Frequency [MHz] | SG5032CAN Frequency tolerance / Operating temperature | ||
DB | JG | JH | |
±25 × 10-6 -20 °C to +70 °C | ±50 × 10-6 -40 °C to +85 °C | ±50 × 10-6 -40 °C to +105 °C | |
4 | — | X1G004451003400 | X1G004451019600 |
8 | — | X1G004451002100 | X1G004451019700 |
10 | — | X1G004451001300 | X1G004451017800 |
12 | X1G004451019800 | X1G004451002800 | X1G004451019900 |
12.288 | X1G004451020000 | X1G004451000100 | X1G004451020100 |
14.7456 | — | X1G004451001900 | X1G004451020200 |
16 | — | X1G004451000200 | X1G004451020300 |
20 | X1G004451020400 | X1G004451001100 | X1G004451020500 |
24 | X1G004451017200 | X1G004451000300 | X1G004451020600 |
24.576 | — | X1G004451002900 | X1G004451020700 |
25 | X1G004451009700 | X1G004451000400 | X1G004451020800 |
26 | — | X1G004451008200 | X1G004451020900 |
27 | — | X1G004451000500 | X1G004451021000 |
32 | — | X1G004451001400 | X1G004451021100 |
33.33 | — | X1G004451021200 | X1G004451021300 |
33.3333 | — | X1G004451016700 | X1G004451021400 |
40 | — | X1G004451001200 | X1G004451021500 |
48 | X1G004451014900 | X1G004451000700 | X1G004451011200 |
50 | X1G004451011500 | X1G004451000800 | X1G004451003600 |
72 | X1G004451021600 | X1G004451021700 | X1G004451021800 |
(4.4) SG7050CAN产品编码
SG7050CAN Frequency [MHz] | SG7050CAN Frequency tolerance / Operating temperature | ||
DB | JG | JH | |
±25 × 10-6 -20 °C to +70 °C | ±50 × 10-6 -40 °C to +85 °C | ±50 × 10-6 -40 °C to +105 °C | |
4 | — | X1G004481005100 | X1G004481025200 |
8 | — | X1G004481001400 | X1G004481025300 |
10 | — | X1G004481000500 | X1G004481025400 |
12 | X1G004481025500 | X1G004481000600 | X1G004481025600 |
12.288 | X1G004481025700 | X1G004481000100 | X1G004481025800 |
14.7456 | — | X1G004481002500 | X1G004481025900 |
16 | — | X1G004481000700 | X1G004481026000 |
20 | X1G004481012800 | X1G004481000800 | X1G004481026100 |
24 | X1G004481002200 | X1G004481000200 | X1G004481026200 |
24.576 | — | X1G004481001600 | X1G004481026300 |
25 | X1G004481011600 | X1G004481000300 | X1G004481026400 |
26 | — | X1G004481003500 | X1G004481026500 |
27 | — | X1G004481000400 | X1G004481026600 |
32 | — | X1G004481000900 | X1G004481026700 |
33.33 | — | X1G004481017900 | X1G004481026800 |
33.3333 | — | X1G004481003300 | X1G004481026900 |
40 | — | X1G004481001500 | X1G004481027000 |
48 | X1G004481022600 | X1G004481001100 | X1G004481017100 |
50 | X1G004481011200 | X1G004481001200 | X1G004481016000 |
72 | X1G004481027200 | X1G004481018300 | X1G004481027300 |
(4.5) SG-210STF 产品编码
SG-210STF Frequency [MHz] | SG-210STF Frequency tolerance / Operating temperature | ||
S | L | Y | |
±25 × 10-6 -20 °C to +70 °C | ±50 × 10-6 -40 °C to +85 °C | ±50 × 10-6 -40 °C to +105 °C | |
4 | — | X1G004171000900 | X1G004171029900 |
8 | — | X1G004171001500 | X1G004171006900 |
10 | — | X1G004171001600 | X1G004171036500 |
12 | X1G004171016300 | X1G004171001800 | X1G004171028000 |
12.288 | X1G004171006100 | X1G004171001900 | X1G004171036600 |
14.7456 | — | X1G004171002500 | X1G004171036700 |
16 | — | X1G004171002700 | X1G004171015400 |
20 | X1G004171021800 | X1G004171002900 | X1G004171023800 |
24 | X1G004171015600 | X1G004171003100 | X1G004171019700 |
24.576 | — | X1G004171003200 | X1G004171036800 |
25 | X1G004171007700 | X1G004171003300 | X1G004171005900 |
26 | — | X1G004171003400 | X1G004171024400 |
27 | — | X1G004171003500 | X1G004171025000 |
32 | — | X1G004171004000 | X1G004171012700 |
33.33 | — | X1G004171011900 | X1G004171030000 |
33.3333 | — | X1G004171012000 | X1G004171007500 |
40 | — | X1G004171004500 | X1G004171020600 |
48 | X1G004171007800 | X1G004171004600 | X1G004171036900 |
50 | X1G004171007900 | X1G004171004700 | X1G004171012600 |
72 | X1G004171037000 | X1G004171012400 | X1G004171037100 |
为了保持稳定运行，在尽可能靠近晶体产品电源端子的位置（VCC-GND之间）提供0.01µF to 0.1µF去耦电容。
在线咨询
微信服务
