SG3225VAN：爱普生 (EPSON)有源差分晶振，输出LVDS，低相位抖动

有源差分晶振，输出频率: 73.5MHz to 700MHz
输出：LVDS，电源电压：2.5 V Typ. / 3.3 V Typ.
频率稳定度: ±20 × 10^-6, ±30 × 10^-6, ±50 × 10^-6；功能: Output enable(OE)
通过PLL技术和晶体单元的基波实现宽频率范围
工作温度: -20 °C to +70 °C, -40 °C to +85 °C
低相位抖动：60 fs typ. ( f₀ = 156.25 MHz )，外部尺寸: 3.2 ×2.5 ×1.05 mm

规格参数

SG3225VAN：爱普生 (EPSON)有源差分晶振，输出LVDS，低相位抖动

SG3225VAN常用频率列表如下：

规格型号	产品编码	MOQ (PCS)
SG3225VAN	X1G004241xxxx00	2000
SG3225VAN 125.000000MHz KJGA	X1G004241000100	2000
SG3225VAN 125.006250MHz KJGA	X1G004241000200	2000
SG3225VAN 100.000000MHz KJGA	X1G004241000400	2000
SG3225VAN 200.000000MHz KJGA	X1G004241000500	2000
SG3225VAN 400.000000MHz KJGA	X1G004241000600	2000
SG3225VAN 106.250000MHz KJGA	X1G004241000700	2000
SG3225VAN 212.500000MHz KJGA	X1G004241000800	2000
SG3225VAN 74.250000MHz KJGA	X1G004241000900	2000
SG3225VAN 148.500000MHz KJGA	X1G004241001000	2000
SG3225VAN 75.000000MHz KJGA	X1G004241001100	2000
SG3225VAN 150.000000MHz KJGA	X1G004241001200	2000
SG3225VAN 156.250000MHz KJGA	X1G004241001400	2000
SG3225VAN 312.500000MHz KJGA	X1G004241001500	2000
SG3225VAN 312.515625MHz KJGA	X1G004241001600	2000
SG3225VAN 161.132800MHz KJGA	X1G004241001700	2000
SG3225VAN 125.000000MHz KEGA	X1G004241002000	2000
SG3225VAN 125.006250MHz KEGA	X1G004241002100	2000
SG3225VAN 100.000000MHz KEGA	X1G004241002300	2000
SG3225VAN 200.000000MHz KEGA	X1G004241002400	2000
SG3225VAN 400.000000MHz KEGA	X1G004241002500	2000
SG3225VAN 106.250000MHz KEGA	X1G004241002600	2000
SG3225VAN 212.500000MHz KEGA	X1G004241002700	2000
SG3225VAN 74.250000MHz KEGA	X1G004241002800	2000
SG3225VAN 148.500000MHz KEGA	X1G004241002900	2000
SG3225VAN 75.000000MHz KEGA	X1G004241003000	2000
SG3225VAN 150.000000MHz KEGA	X1G004241003100	2000
SG3225VAN 156.250000MHz KEGA	X1G004241003300	2000
SG3225VAN 312.500000MHz KEGA	X1G004241003400	2000
SG3225VAN 312.515625MHz KEGA	X1G004241003500	2000
SG3225VAN 161.132800MHz KEGA	X1G004241003600	2000
SG3225VAN 125.000000MHz KJBA	X1G004241003900	2000
SG3225VAN 125.006250MHz KJBA	X1G004241004000	2000
SG3225VAN 100.000000MHz KJBA	X1G004241004200	2000
SG3225VAN 200.000000MHz KJBA	X1G004241004300	2000
SG3225VAN 400.000000MHz KJBA	X1G004241004400	2000
SG3225VAN 106.250000MHz KJBA	X1G004241004500	2000
SG3225VAN 212.500000MHz KJBA	X1G004241004600	2000
SG3225VAN 74.250000MHz KJBA	X1G004241004700	2000
SG3225VAN 148.500000MHz KJBA	X1G004241004800	2000
SG3225VAN 75.000000MHz KJBA	X1G004241004900	2000
SG3225VAN 150.000000MHz KJBA	X1G004241005000	2000
SG3225VAN 156.250000MHz KJBA	X1G004241005200	2000
SG3225VAN 312.500000MHz KJBA	X1G004241005300	2000
SG3225VAN 312.515625MHz KJBA	X1G004241005400	2000
SG3225VAN 161.132800MHz KJBA	X1G004241005500	2000
SG3225VAN 125.000000MHz KCBA	X1G004241005800	2000
SG3225VAN 125.006250MHz KCBA	X1G004241005900	2000
SG3225VAN 100.000000MHz KCBA	X1G004241006100	2000
SG3225VAN 200.000000MHz KCBA	X1G004241006200	2000
SG3225VAN 400.000000MHz KCBA	X1G004241006300	2000
SG3225VAN 106.250000MHz KCBA	X1G004241006400	2000
SG3225VAN 212.500000MHz KCBA	X1G004241006500	2000
SG3225VAN 74.250000MHz KCBA	X1G004241006600	2000
SG3225VAN 148.500000MHz KCBA	X1G004241006700	2000
SG3225VAN 75.000000MHz KCBA	X1G004241006800	2000
SG3225VAN 150.000000MHz KCBA	X1G004241006900	2000
SG3225VAN 156.250000MHz KCBA	X1G004241007100	2000
SG3225VAN 312.500000MHz KCBA	X1G004241007200	2000
SG3225VAN 312.515625MHz KCBA	X1G004241007300	2000
SG3225VAN 161.132800MHz KCBA	X1G004241007400	2000
SG3225VAN 50.000000MHz KJGA	X1G004241007900	2000
SG3225VAN 68.750000MHz KJGA	X1G004241008000	2000
SG3225VAN 50.000000MHz KEGA	X1G004241008300	2000
SG3225VAN 68.750000MHz KEGA	X1G004241008400	2000
SG3225VAN 50.000000MHz KJBA	X1G004241008700	2000
SG3225VAN 68.750000MHz KJBA	X1G004241008800	2000
SG3225VAN 68.750000MHz KCBA	X1G004241009200	2000
SG3225VAN 133.333333MHz KJBA	X1G004241010000	2000
SG3225VAN 148.350000MHz KJGA	X1G004241010100	2000
SG3225VAN 114.285000MHz KEGA	X1G004241010200	2000
SG3225VAN 250.000000MHz KEGA	X1G004241010300	2000
SG3225VAN 350.000000MHz KEGA	X1G004241010400	2000
SG3225VAN 80.000000MHz KEGA	X1G004241010500	2000
SG3225VAN 98.304000MHz KEGA	X1G004241010600	2000
SG3225VAN 297.000000MHz KJGA	X1G004241010800	2000
SG3225VAN 135.000000MHz KJGA	X1G004241012400	2000
SG3225VAN 480.00000MHz KEGA	X1G004241014400	2000
SG3225VAN 322.265625MHz KEGA	X1G004241014900	2000
SG5032VAN 78.1250000 MHz KJGA	X1G004261011400	1000
SG5032VAN 135.000000MHz KEGA	X1G004261012900	1000
SG5032VAN 322.265625 MHz KEGA	X1G004261013100	1000
SG5032VAN 245.00000 MHz KEGA	X1G004261013200	1000
SG7050EAN 250.000000MHz KEGA	X1G004291011000	1000
SG7050EAN 350.000000MHz KEGA	X1G004291011100	1000
SG7050EAN 80.000000MHz KEGA	X1G004291011200	1000
SG7050EAN 98.304000MHz KEGA	X1G004291011300	1000
SG7050EAN 156.253800MHz KCBA	X1G004291011400	1000
SG7050EAN 156.257812MHz KJGA	X1G004291011500	1000
SG7050EAN 114.625000MHz KJGA	X1G004291011600	1000
SG7050EAN 300.000000MHz KJGA	X1G004291011700	1000
SG7050EAN 480.000000MHz KJGA	X1G004291011800	1000
SG7050EAN 212.000000MHz KJGA	X1G004291011900	1000
SG7050EAN 350.000000MHz KJGA	X1G004291012000	1000
SG7050EAN 176.000000MHz KJGA	X1G004291012100	1000
SG7050EAN 500.000000MHz KJGA	X1G004291012200	1000
SG7050EAN 622.080000MHz KJGA	X1G004291012300	1000
SG7050EAN 156.253906MHz KJGA	X1G004291012400	1000
SG7050EAN 156.253906MHz KJGA	X1G004291012500	1000
SG7050EAN 156.255468MHz KJGA	X1G004291012600	1000
SG7050EAN 320.000000MHz KJGA	X1G004291012700	1000
SG7050EAN 125.003700MHz KJGA	X1G004291012800	1000
SG7050EAN 301.386000MHz KJGA	X1G004291012900	1000
SG7050EAN 233.372000MHz KJGA	X1G004291013000	1000

特征

爱普生(EPSON)有源差分晶振: SG3225VAN、SG5032VAN、SG7050VAN

l 有源差分晶振

l 输出频率: 73.5MHz to 700MHz

l 输出：LVDS

l 电源电压：2.5 V Typ. / 3.3 V Typ.

l 频率稳定度: ±25 × 10^-6, ±30 × 10^-6, ±50 × 10^-6

l 功能: Output enable(OE)

l 通过PLL技术和晶体单元的基波实现宽频率范围

l 工作温度: -20 °C to +70 °C, -40 °C to +85 °C

l 低相位抖动：60 fs typ. ( f₀ = 156.25 MHz )

l 外部尺寸: 3.2 ×2.5 ×1.05 mm

概述

5G将使通信流量成倍增长。5G通信网络需要高速和宽带，同时将噪声水平保持在最低水平。这可以通过通信设备的高频低抖动参考时钟来实现。使用上述XO，客户可以从基本模式晶体输入具有极低相位抖动和功率的高频参考（高达500MHz），以实现优异的相位噪声。

规格 (特征)

项目	符号	规格说明		条件 / 备注
		LV-PECL	LVDS
		SG3225EAN SG5032EAN SG7050EAN	SG3225VAN SG5032VAN SG7050VAN
输出频率范围	f₀	73.5 MHz to 700 MHz		Please contact us about available frequencies.
电源电压	V_CC	K: 2.5 V ± 5 %		V_CC = ±10 %
储存温度	T_stg	-40°C to +125°C		Store as bare product.
工作温度	T_use	B: -20 °C to +70 °C, G: -40 °C to +85 °C
频率稳定度	f_tol	C: ±20 × 10^-6 D: ±30 × 10^-6 J: ±50 × 10^-6
功耗	I_CC	65 mA Max.	30 mA Max.	OE = VCC, L_ECL = 50 Ω or L_LVDS = 100 Ω f₀ = 700 MHz
禁用电流	I_dis	20 mA Max.		OE = GND
占空比	SYM	45% to 55%		At output crossing point
输出电压 (LV-PECL)	V_OH	V_CC- 1.0 V to V_CC- 0.8 V	—	DC characteristics
	V_OL	V_CC- 1.78 V to V_CC-1.62 V	—
输出电压 (LVDS)	V_OD	—	250 mV to 450 mV	Differential output voltage, V_OD1, V_OD2	DC characteristics
	dV_OD	—	50 mV Max.	dV_OD = \| V_OD1 - V_OD2 \|
	V_OS	—	1.15 V to 1.35 V	Offset voltage, V_OS1, V_OS2
	dV_OS	—	150 mV Max.	dV_OS = \| V_OS1- V_OS2\|
输出负载条件	L_ECL	50 Ω	—	Terminated to V_CC - 2.0 V
	L_LVDS	—	100 Ω	Connected between OUT and /OUT
输入电压	V_IH	70% V_CC Min.		OE terminal
	V_IL	30% V_CC Max.
上升/下降时间	tr / tf	0.35 ns Max.	—	Between 20 % and 80 % of (V_OH - V_OL)
		—	0.30 ns Max.	Between 20 % and 80 %of Differential Output peak to peak voltage.
启动时间	t_str	3 ms Max.		Time at minimum supply voltage to be 0 s
相位抖动	t_PJ	60 fs Max. *1		Offset frequency : 12 kHz to 20 MHz
频率老化	f_aging	±5 × 10^-6 / year Max.		+25 °C , V_CC= 2.5 V or 3.3 V First year.

LV-PECL (Low Voltage Positive Emitter-Couple Logic)：低压正发射极耦合逻辑

LVDS(Low Voltage Differential Signaling)：低压差分信号

*1. f₀ = 243 MHz to 250 MHz , 486 MHz to 500 MHz are 0.9ps Max.

相位抖动

Product Name

100 MHz

125MHz

156.25 MHz

200 MHz

312.5 MHz

491.52 MHz

Conditions

SG3225EAN

SG5032EAN

SG7050EAN

75 fs Typ.

60 fs Typ.

50 fs Typ.

40 fs Typ.

30 fs Typ.

20 fs Typ.

Offset frequency:

12 kHz to 20 MHz

SG3225VAN

SG5032VAN

SG7050VAN

90 fs Typ.

70 fs Typ.

60 fs Typ.

50 fs Typ.

40 fs Typ.

30 fs Typ.

Pin description

Pin #

Connection

Function

OE terminal / active high

OE function

Oscillator circuit

Output

HIGH or "open"

Oscillation

Specified frequency: Enable

LOW

OE: Oscillation

S̅ T̅: Oscillation stop

High impedance: Disable

—

GND

GND terminal

OUT

Output terminal (Positive)

O̅U̅T

Output terminal (Negative)

V_CC

V_CC terminal

产品命名规则

SG3225VAN等系列晶振产品名称参数：

(1) 产品名称 (标准形式)

SG3225VAN 156.250000MHZ K J G A

SG5032VAN 156.250000MHZ K J G A

SG7050VAN 156.250000MHZ K J G A

① ② ③ ④⑤⑥⑦

① Model ② Output (E: LV-PECL, V: LVDS) ③ Frequency ④ Supply voltage

⑤ Frequency tolerance ⑥ Operating temperature range

⑦ Internal identification code (A: default)

④ Supply voltage
K	2.5 V to 3.3 V Typ.

⑤ Frequency tolerance
J	±50 × 10^-6
E	±30 × 10^-6
C	±20 × 10^-6

⑥ Operating temperature range
B	-20 °C to +70 °C
G	-40 °C to +85 °C

(2) 产品型号 / 产品编码 (空白部分由每个详细规范决定。)

SG3225EAN X1G004251xxxx00

SG3225VAN X1G004241xxxx00

SG5032EAN X1G004271xxxx00

SG5032VAN X1G004261xxxx00

SG7050EAN X1G004291xxxx00

SG7050VAN X1G004281xxxx00

① ② ③ ④ ⑤

① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）

④ Detail specifications

⑤ Packing（00：Recommended packing 3225:2000 pcs/Reel; 5032,7050: 1000 pcs/Reel）

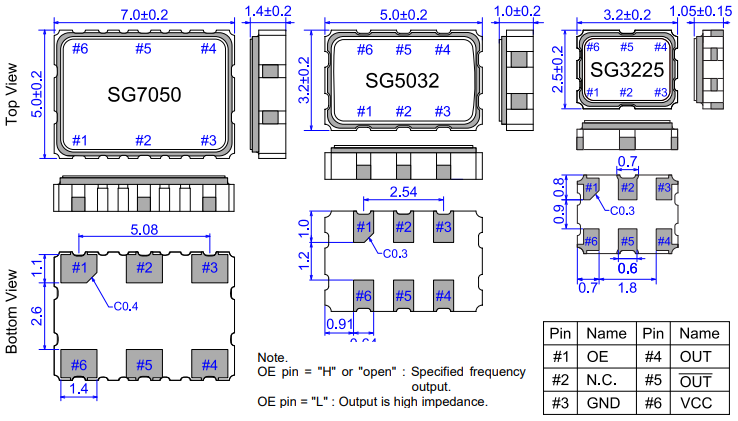

External dimensions (Unit: mm)

SG3225 5032 7050EAN VAN External dimensions.png

为了保持稳定运行，在尽可能靠近晶体产品电源端子的位置（VCC-GND之间）提供0.01µF to 0.1µF去耦电容。

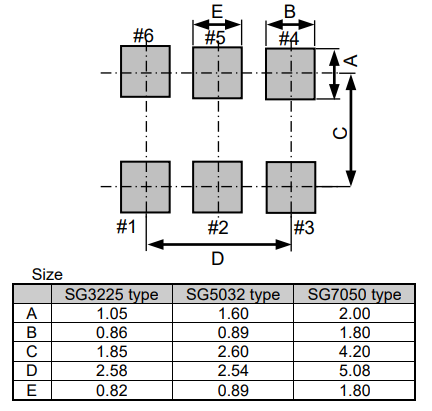

Footprint (Recommended) (Unit: mm)

SG3225 5032 7050EAN VAN footprint.png
