压控晶振(VCXO),输出频率: 85MHz to 170MHz;
输出:LV-PECL,功能: Output enable(OE) , Active High
电源电压: 3.3 V Typ.;
绝对频率控制范围(Absolute Pull Range): ± 50 × 10-6 Min.
工作温度: -40 °C to +85 °C, -40 °C to +105 °C

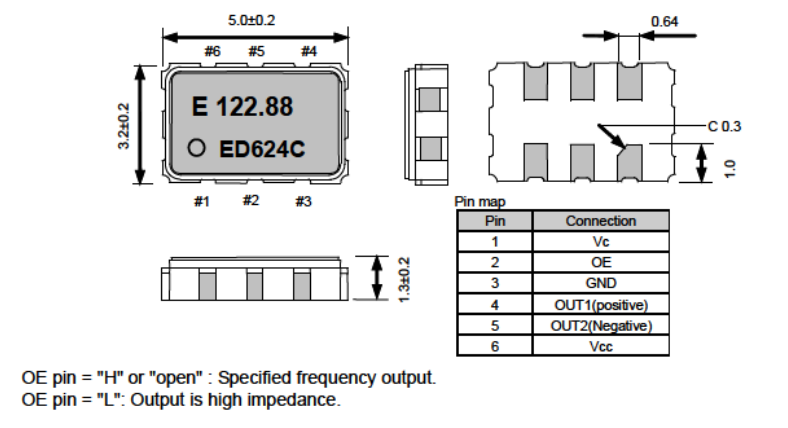

外部尺寸: 5.0 ×3.2 ×1.3 mm

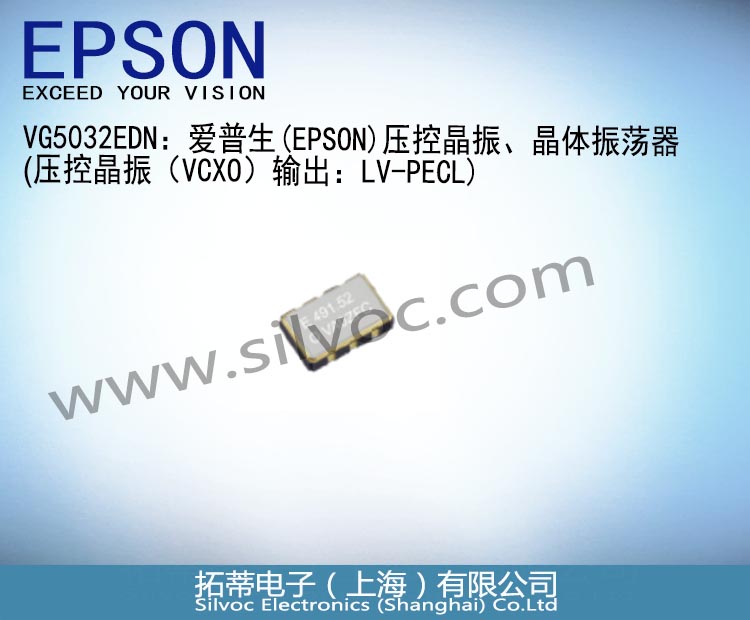

VG5032EDN:爱普生 (EPSON)压控晶振、晶体振荡器(VCXO),输出LV-PECL
VG5032EDN常用频率列表如下:
规格型号 | 产品编码 | MOQ (PCS) |
VG5032EDN | X1G004911xxxx00 | 1000 |
VG5032EDN 122.880000MHz CJGHBA | X1G004911xxxx00 | 1000 |
VG5032EDN 122.880000MHz CJHHBA | X1G004911000100 | 1000 |
VG5032EDN 245.760000MHz CJGHBA | X1G004911xxxx00 | 1000 |
VG5032EDN 245.760000MHz CJHHBA | X1G004911xxxx00 | 1000 |
VG5032EDN 491.520000MHz CJGHBA | X1G004911xxxx00 | 1000 |
VG5032EDN 491.520000MHz CJHHBA | X1G004911xxxx00 | 1000 |
爱普生(EPSON)压控晶振(VCXO): VG5032EDN
l 压控晶振 (VCXO)
l 输出频率: 85MHz to 170MHz
l 输出:LV-PECL
l 功能: Output enable(OE) , Active High
l 电源电压: 3.3 V Typ.
l 绝对频率控制范围(Absolute Pull Range): ± 50 × 10-6 Min.
l 工作温度: -40 °C to +85 °C, -40 °C to +105 °C
l 外部尺寸: 5.0 ×3.2 ×1.3 mm
· 通信机
· 移动电话
· 寻呼机
· 全球定位系统(GPS)
规格 (特征)
项目 | 符号 | 规格说明 | 条件 / 备注 | ||
LV-PECL | LVDS | ||||
VG5032EDN | VG5032VDN | ||||
输出频率范围 | f0 | 85 MHz to 170 MHz | Please contact us for inquiries regarding available frequencies. | ||
电源电压 | VCC | C: 3.3 V ± 5 % | |||
控制电压 | VC | 1.65 V ±1.65 V | |||
储存温度 | T_stg | -55°C to +125°C | |||
工作温度 | T_use | G: -40 °C to +85 °C, H: -40 °C to +105 °C | |||
频率稳定度 | f_tol | J: ±50 × 10-6 Max | Includes initial frequency tolerance, temperature variation, supply voltage change and 10 years aging (+25 °C) at Vc = 1.65 V | ||
绝对频率控制范围*1 | APR | B: ±50 × 10-6 Min. | VC= 1.65V ±1.65V | ||
输入电阻 | Rin | 10 MΩ Min. | DC level | ||
功耗 | ICC | 60 mA Max. | 30 mA Max. | OE = VCC, L_ECL = 50 Ω or L_LVDS = 100 Ω | |
占空比 | SYM | 45% to 55% | LV-PECL: at Vcc-1.30 V, VC=1/2Vcc | ||
输出电压 (LV-PECL) | VOH | VCC - 1.1 V Min. | — | DC characteristics | |
VOL | VCC - 1.5 V Max. | — | |||
输出电压 (LVDS) | VOD | — | 250 mV to 450 mV | Differential output voltage, VOD1, VOD2 | DC characteristics |
VOS | — | 1.15 V to 1.35 V | Offset voltage, VOS1, VOS2 | ||
输出负载条件 | L_ECL | 50 Ω | — | Terminated to VCC - 2.0 V | |
L_LVDS | — | 100 Ω | Connected between OUT1 and OUT2 | ||
输入电压 | VIH | 70% VCC Min. | OE terminal | ||
VIL | 30% VCC Max. | ||||
上升/下降时间 | tr / tf | 0.50 ns Max. | 0.30 ns Max. | LV-PECL: Between 20 % and 80 % of (VOH - VOL) LVDS: Between 20 % and 80 % of Differential Output peak to peak voltage | |
启动时间 | t_str | 10 ms Max. | Time at minimum supply voltage to be 0 s | ||
相位抖动 | tPJ | 300 fs Max. | Offset Frequency 12 kHz to 20 MHz |
*1绝对频率控制范围(Absolute Pull Range)=频率控制范围-频率公差。
*接通VCC电源时,请保持VC引脚开路或接地。
LV-PECL (Low Voltage Positive Emitter-Couple Logic):低压正发射极耦合逻辑
LVDS(Low Voltage Differential Signaling):低压差分信号
VG5032EDN等系列晶振产品名称参数:
(1) 产品名称 (标准形式)
VG5032EDN 122.880000MHZ C J G H B A
VG5032VDN 122.880000MHZ C J G H B A
① ② ③ ④⑤⑥⑦⑧⑨
① Model ② Output (E: LV-PECL, V: LVDS) ③ Frequency
④ Supply voltage (C: 3.3 V Typ.) ⑤ Frequency tolerance ⑥ Operating temperature range
⑦ OE Function ⑧ Absolute Pull Range ⑨ Output Standby Type (A: High-Z)
⑤ Frequency tolerance | |
J | ±50 × 10-6 |
⑥ Operating temperature range | |
G | -40 °C to +85 °C |
H | -40 °C to +105 °C |
⑦ OE Function | |
H | Active High |
⑧ Absolute Pull Range | |
B | ±50 × 10-6 |
(2) 产品型号 / 产品编码 (空白部分由每个详细规范决定。)
VG5032EDN X1G004911xxxx00
VG5032VDN X1G004951xxxx00
① ② ③ ④ ⑤
① Crystal devices ② Model ③ Pb free code(1:EU RoHS / 2: Pb free)
④ Detail specifications
⑤ Packing(00:Recommended packing 5032: 1000 pcs/Reel)

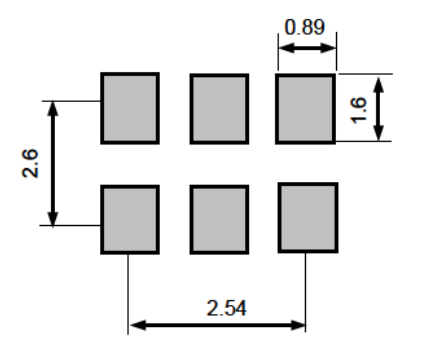

为了实现较佳抖动性能,建议在VCC和GND之间连接0.1µF和10µF去耦电容,并尽可能靠近VCC引脚。
