TA2904AA5113:SAW滤波器 (SAW Filter)
TA2904AA5113:232.5MHz
TA2904AA5113:SMD 5.0×5.0 mm
TA2904AA5113:BW=3.4MHz
TA2904AA5113 :TST/嘉硕滤波器 232.5MHz SMD5.0x5.0 (BW=3.4MHz)
SAW Filter 232.5 MHz
MODEL NO.: TA2904AA5113 Rev. No.:1
A. MAXIMUM RATING:
1. Input Power Level: 10 dBm
2. DC voltage: 5 V
3. Operating Temperature: -20°C to +65°C
4. Storage Temperature: -40°C to +85°C
5. Moisture Sensitivity Level: Level 1(MSL1)
B. ELECTRICAL SPECIFICATION:
Item | Unit | min | type | Max |
Center Frequency Fc | MHz | 232.5 | ||
Insertion Loss 230.8~234.2MHz | dB | 2 | 3 | |
Amplitude Ripple 230.8~234.2MHz | dB | 1.5 | 2 | |
VSWR 230.8~234.2MHz | MHz | 2.1 | 2.5 | |
Attenuation (Reference level from 0dB) | ||||
252.4~255.3 MHz | dB | 45 | 58 | |
462~467.8 MHz | dB | 48 | 52 | |
693~703.75 MHz | dB | 35 | 47 | |
Temperature Coefficient of Frequency | ppm/°C | -36typ |

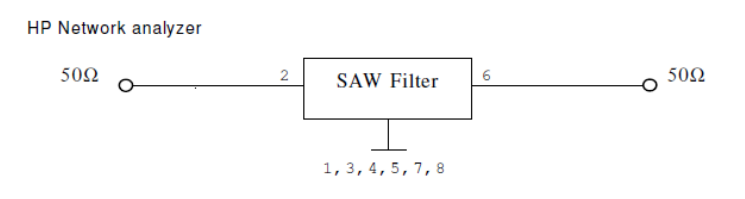

C. MEASUREMENT CIRCUIT :

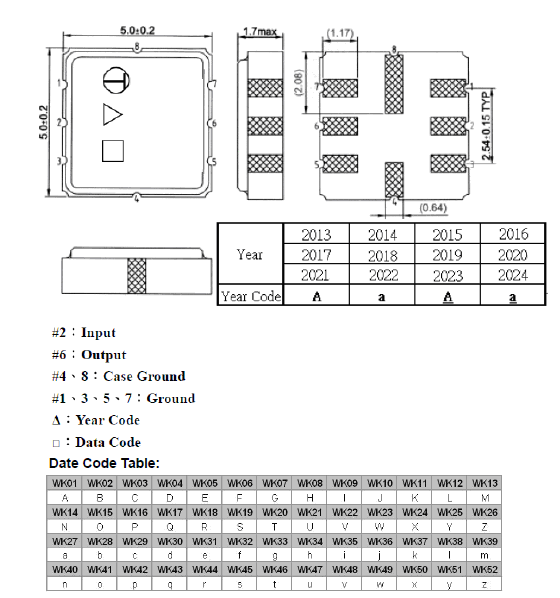

D. OUTLINE DRAWING:
Pin 1~8 plating Material
Ni: 1.27~8.89um & Au: 0.3~1.0um
E. PCB Footprint:
Temperature of the soldering iron tip 400C ,5Sec Max
如需要该产品详细规格书,请联系TST(TAISAW,嘉硕)代理—拓蒂电子。
