TA0544A:SAW滤波器 (SAW Filter)
TA0544A:290MHz
TA0544A:DIP
TA0544A :TST (TAISAW、嘉硕) 滤波器 290MHz
SAW Filter 290 MHz
MODEL NO.: TA0544A Rev. No.:1
A. MAXIMUM RATING:
1. Input Power Level: 5 dBm
2. DC voltage: 3 V
3. Operating Temperature: -10°C to +50°C
4. Storage Temperature: -40°C to +85°C
B. ELECTRICAL CHARACTERISTICS:
Item | Unit | min | typical | Max |
Center Frequency Fc | MHz | - | 290 | |
I.L. (Within FC± 3.5MHz) IL | dB | - | 2.7 | 4.5 |
Ripple (Within FC ± 3.5MHz) | dB | - | 0.7 | 2.0 |
Attenuation (Reference level from 0dB) | ||||
FC - 100MHz to -37.5MHz | dB | 40 | 54 | - |
FC +37.5MHz to + 100MHz | dB | 40 | 64 | - |

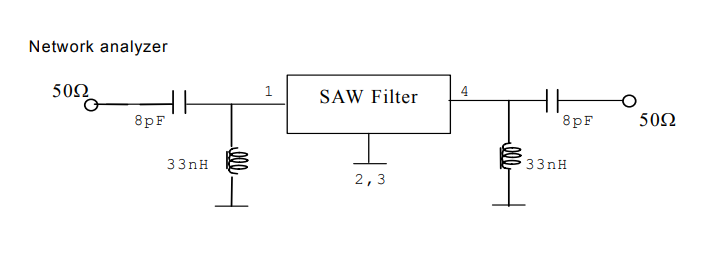

C. MEASUREMENT CIRCUIT :

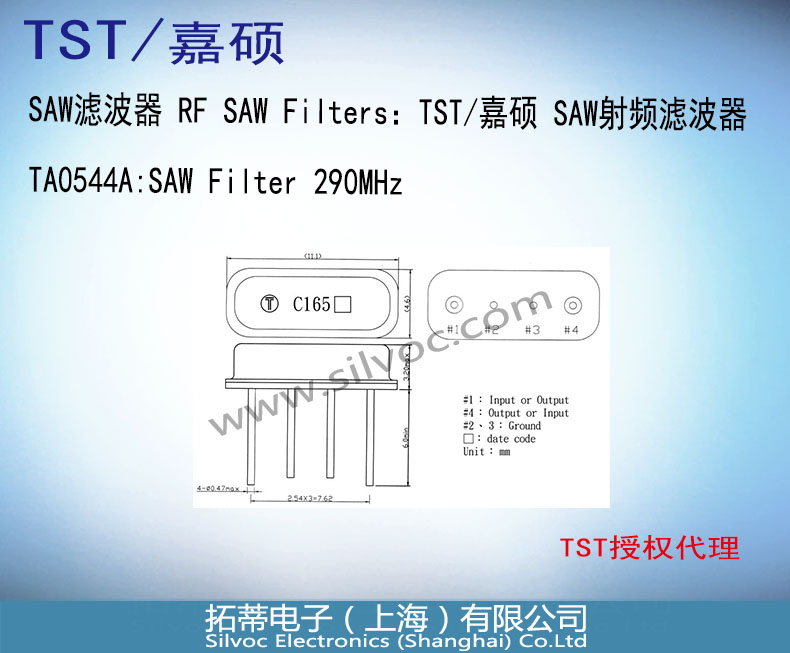

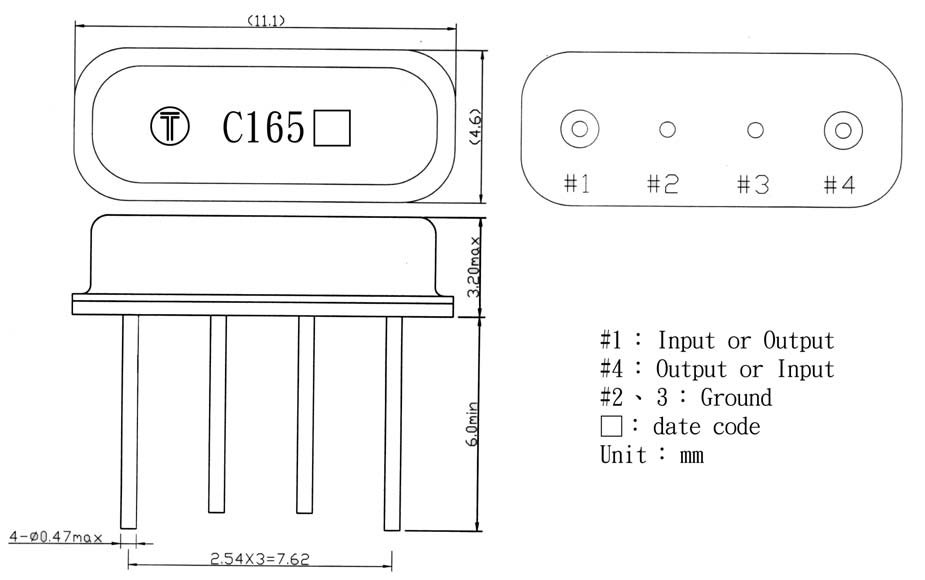

D. OUTLINE DRAWING:
Unit: mm
如需要该产品详细规格书,请联系TST(TAISAW,嘉硕)代理—拓蒂电子。
