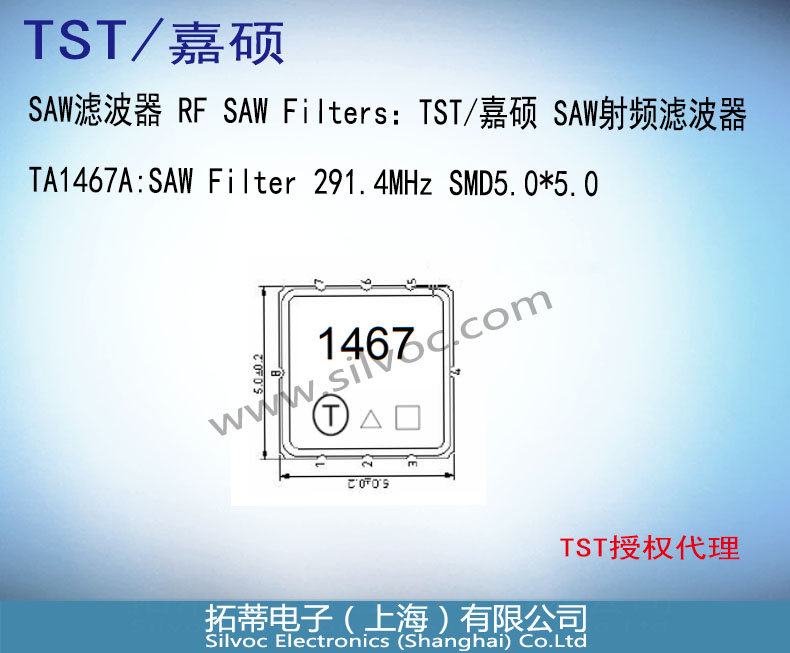

TA1467A :TST (TAISAW、嘉硕) 滤波器 291.4MHz SMD5.0*5.0

  • TA1467A:SAW滤波器 (SAW Filter)

  • TA1467A:291.4MHz

  • TA1467A:SMD5.0*5.0

  • TA1467A:BW=7 MHz


规格参数

TA1467A :TST (TAISAW、嘉硕) 滤波器 291.4MHz SMD5.0*5.0



SAW Filter 291.4 MHz

MODEL NO.: TA1467A   Rev. No.:1



A. MAXIMUM RATING:

1. Input Power Level: 5 dBm

2. DC voltage: 3 V

3. Operating Temperature: -10°C to +50°C

4. Storage Temperature: -40°C to +85°C



B. ELECTRICAL CHARACTERISTICS:



Item

Unit

min

typical

Max

Center Frequency                   Fc

MHz

­-

291.4


Insertion Loss (Fc± 3.5MHz)          IL

dB

-

3

4.5

Amplitude Ripple  (Fc ± 3.5MHz)

dB

-

0.85

2.0

Attenuation (Reference level from 0dB)

FC - 100MHz to -37.5MHz

dB

40

55

-

FC +37.5MHz to + 100MHz

dB

40

65

-

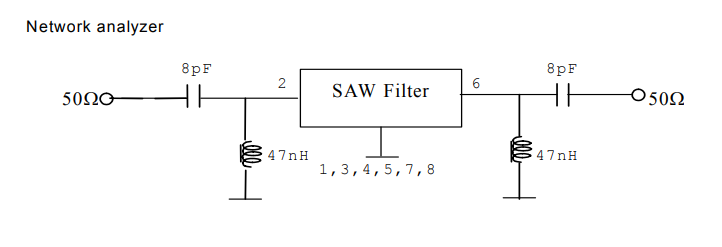

C. MEASUREMENT CIRCUIT :








D. MEASUREMENT CIRCUIT :






Unit: mm

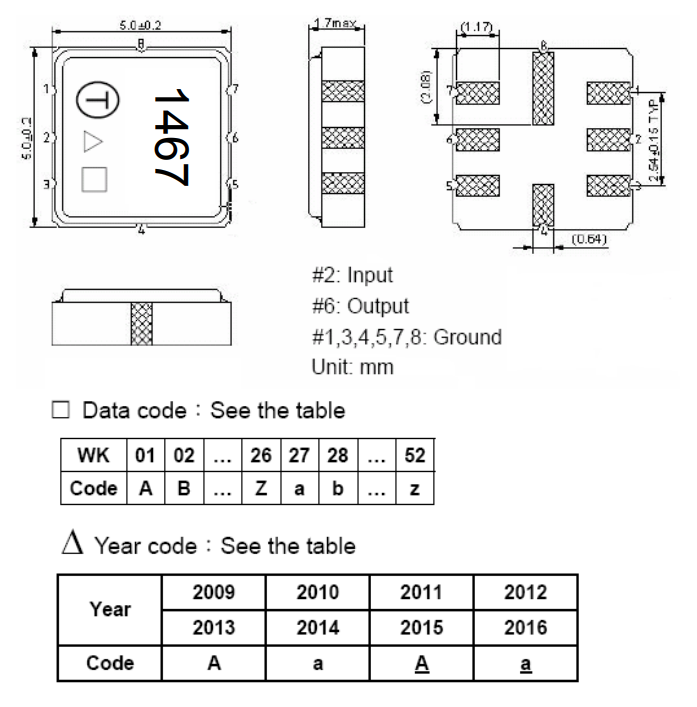

E. OUTLINE DRAWING:






如需要该产品详细规格书,请联系TST(TAISAW,嘉硕)代理—拓蒂电子。
