TA1976A:SAW滤波器 (SAW Filter)
TA1976A:300MHz
TA1976A:SMD3.0*3.0
TA1976A:BW=2 MHz
TA1976A :TST (TAISAW、嘉硕) 滤波器 300MHz SMD3.0*3.0
SAW Filter 300 MHz
MODEL NO.: TA1976A Rev. No.:1
A. MAXIMUM RATING:
1. Input Power Level: 10 dBm
2. DC voltage: 3 V
3. Operating Temperature: -40°C to +85°C
4. Storage Temperature: -40°C to +85°C
B. ELECTRICAL CHARACTERISTICS:
Item | Unit | min | typical | Max |
Center Frequency Fc | MHz | - | 300 | |
Insertion Loss at Fc IL | dB | - | 1.4 | 2 |
Bandwidth @ -2dB | MHz | 2 | 5 | 2.0 |
Attenuation (Reference level from 0dB) | ||||
250MHz to 280MHz | dB | 50 | 64 | - |
280MHz to 290MHz | dB | 40 | 45 | - |
320MHz to 350MHz | dB | 40 | 47 | - |
Temperature coefficient of frequency | ppm/k | - | -36 | - |
C. MEASUREMENT CIRCUIT :
Unit: mm

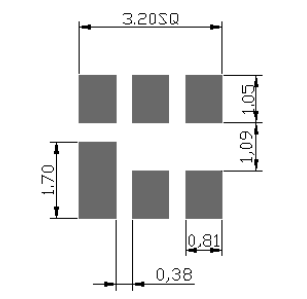

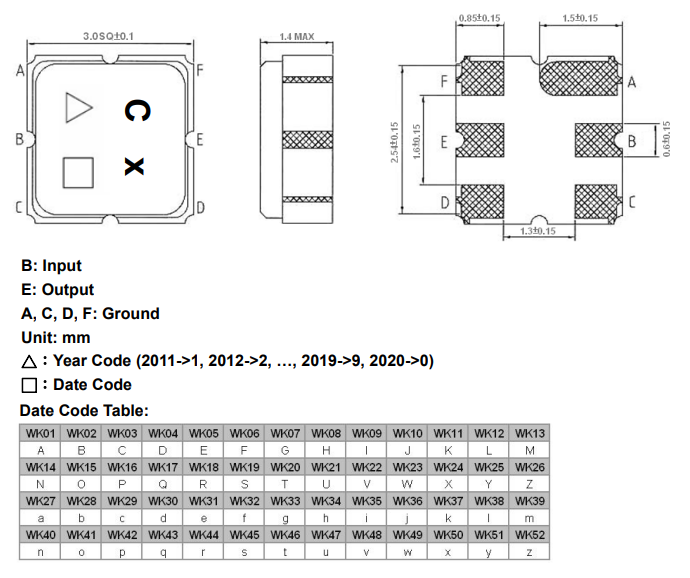

E. OUTLINE DRAWING:
如需要该产品详细规格书,请联系TST(TAISAW,嘉硕)代理—拓蒂电子。
