TA1637A:SAW滤波器 (SAW Filter)
TA1637A:309MHz
TA1637A:SMD5.0*5.0
TA1637A:BW=10.06 MHz

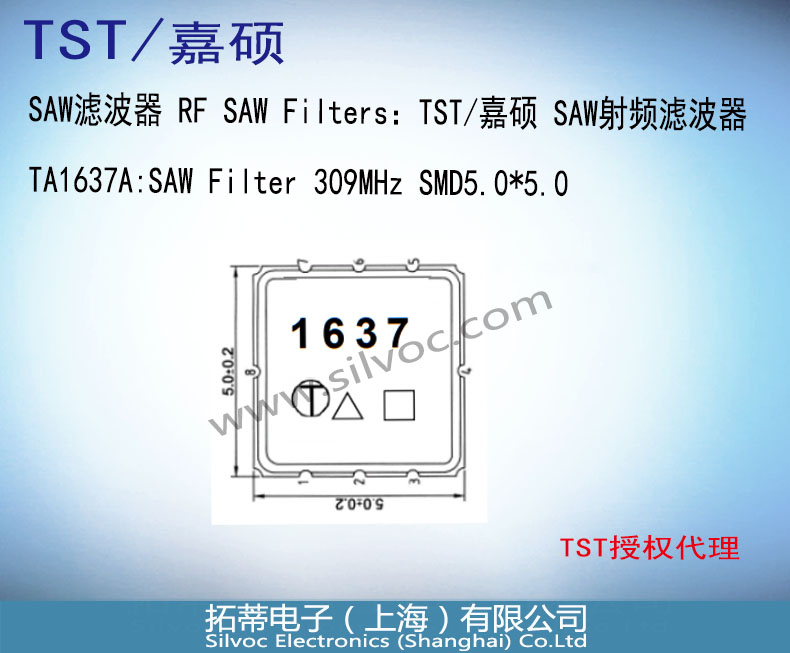

TA1637A :TST (TAISAW、嘉硕) 滤波器 309MHz SMD5.0*5.0
SAW Filter 309 MHz
MODEL NO.: TA1637A Rev. No.:1
A. MAXIMUM RATING:
1. Input Power Level: 10 dBm
2. DC voltage: 5 V
3. Operating Temperature: -40°C to +85°C
4. Storage Temperature: -40°C to +85°C
B. ELECTRICAL CHARACTERISTICS:
Item | Unit | min | typical | Max |
Center Frequency Fc | MHz | - | 309 | |
Insertion Loss (304.225~314.285 MHz) IL | dB | - | 1.9 | 3.0 |
Amplitude Ripple (304.225~314.285 MHz) | dB | - | 0.8 | 2.0 |
Attenuation (Reference level from 0dB) | ||||
50MHz to 280MHz | dB | 40 | 45 | - |
350MHz to 700MHz | dB | 30 | 34 | - |
Temperature coefficient of frequency | ppm/k | - | -36 | - |

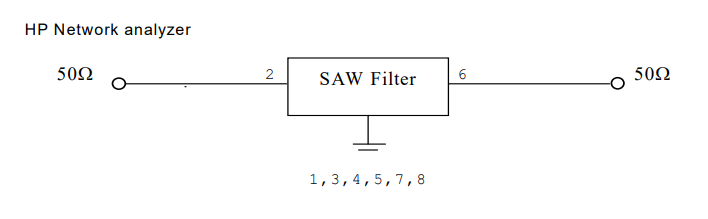

C. MEASUREMENT CIRCUIT :
D. MEASUREMENT CIRCUIT :
Unit: mm

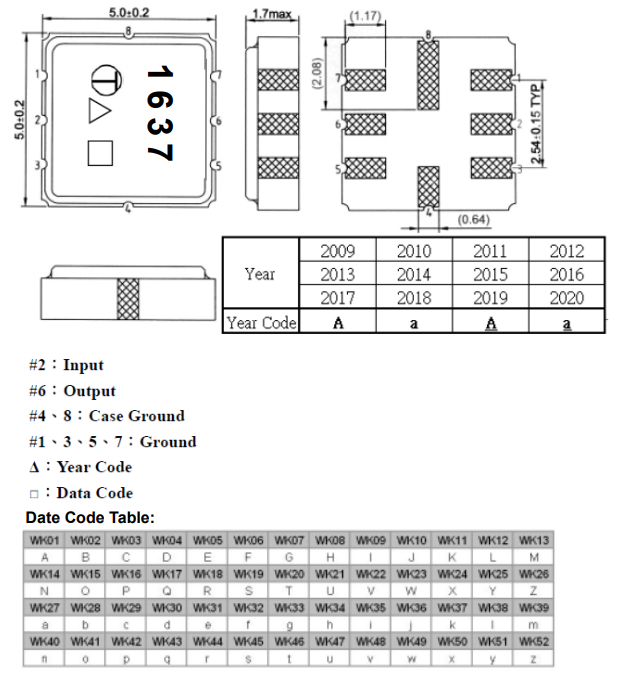

E. OUTLINE DRAWING:
如需要该产品详细规格书,请联系TST(TAISAW,嘉硕)代理—拓蒂电子。
