用于5G/6G WiFi 产品上的TST( TAI-SAW,嘉硕科技)滤波器和晶振产品介绍
(5G/6G WiFi BAW DR LTCC filter &Crystal)
1、5G/6G WiFi解决方案-单BAW滤波器(5G /6G WiFi solution- Single BAW Filter)
![WiFi图片1.jpg](/../../upload/image/20240608/6385346926966437584647824.jpg)
在5G/6G WiFi解决方案中,TST( TAI-SAW,嘉硕科技)的单BAW滤波器型号和参数列表如下:
型号 | 中心频率 (MHz) | BW (MHz) | 插入损耗 (dB) | 尺寸 (mm) | 备注 |
Part Number | Center Freq. (MHz) | BW (MHz) | Insertion Loss (dB) | Package Size (mm) | Note |
TA2580ABAWA | 5250 | 160 | 1.8 | 2.5x2.0 | 5.2G WiFi U-NII 1 to 2A |
TA2586ABAWA | 5665 | 345 | 2.3 | 2.5x2.0 | 5.6G WiFi U-NII 2C to 3 |
TA2589ABAWA | 5775 | 100 | 2.5 | 2.5x2.0 | 5.7G WiFi |
TK0009AA2862 | 5250 | 160 | 1.8 | 2.5x2.0 | 5.2G WiFi U-NII 1 to 2A |
TK0010AA2862 | 5665 | 345 | 2.3 | 2.5x2.0 | 5.6G WiFi U-NII 2C to 3 |
TK0037AA0062 | 5250 | 160 | 1.3 | 1.8x1.4 | 5.2G WiFi U-NII 1 to 2A, Small PKG |
TK0038AA0062 | 5665 | 345 | 1.8 | 1.8x1.4 | 5.6G WiFi U-NII 2C to 3, Small PKG |
TK0016AA0060 | 5502.5 | 665 | 1.7 | 1.8x1.6 | 5.5 GHz WiFi U-NII 1 to 3 |
TK0040AA1362 | 5502.5 | 665 | 1.8 | 1.8x1.6 | 5.5 GHz WiFi U-NII 1 to 3 |
TK0018AA1360 | 5532.5 | 725 | 2.2 | 1.4x1.1 | 5.5 GHz WiFi U-NII 1 to 4 |
TK0029AA0060 | 6535 | 1180 | 1.7 | 1.8x1.6 | WiFi 6E & 7 U-NII 5 to 8 |
TK0039AA0062 | 6535 | 1180 | 2.5 | 1.8x1.6 | WiFi 6E & 7 U-NII 5 to 8 |
![WiFi图片3.jpg](/../../upload/image/20240608/6385346935940081187466115.jpg)
2、5G/6G WiFi解决方案-介质滤波器和陶瓷滤波器
(5G /6G WiFi solution- DR and LTCC Filter)
在5G/6G WiFi解决方案中,TST( TAI-SAW,嘉硕科技)的介质滤波器和陶瓷滤波器型号和参数列表如下:
型号 | 中心频率 (MHz) | BW (MHz) | 插入损耗 (dB) | 尺寸(mm) | 备注 |
Part Number | Center Freq. (MHz) | BW (MHz) | Insertion Loss (dB) | Package Size (mm) | Note |
TR0010A | 5250 | 160 | 2.5Max | 8.6x4.05 | DR filter 5.2G WiFi U-NII 1 to 2A |
TR0142AA0092 | 5662.5 | 345 | 3.5 Max | 9.35x4.5 | DR filter 5.6G WiFi U-NII 2C to 3 |
TR0143AA0092 | 5492.5 | 685 | 3.7 Max | 9.36x4.48 | DR filter 5.5 GHz WiFi U-NII 1 to 3 |
TR0141AA0092 | 6525 | 1200 | 4.5 Max | 9.36x3.89 | DR filter WiFi 6E & 7 U-NII 5 to 8 |
TL0054AA0093 | 6012.5 | 2225 | 1.1Max | 1.6x0.8 | LTCC filter U-NII 1 to 8 |
TL0046AA0092 | 5550 | 800 | 1.05Max | 1.6x0.8 | LTCC filter U-NII 1 to 4 |
TL1006AA0090 | 5537.5 | 775 | 1.5Max | 1.6x0.8 | LTCC filter U-NII 1 to 4 |
TL1007AA0090 | 5537.5 | 775 | 1.2Max | 1.6x0.8 | LTCC filter U-NII 1 to 4 |
TL0017B | 2450/5500 | 100/700 | 0.6Max/1.5Max | 1.6X0.8 | LTCC filter WiF6 |
TL0057AA1692 | 2450/6140 | 100/1980 | 0.7max/1.1max | 1.6x0.8 | LTCC filter WiF7 |

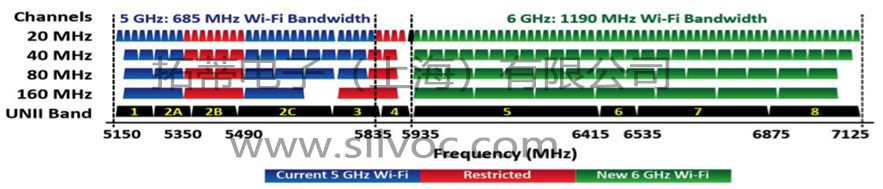

![WiFi图片3.jpg](/../../upload/image/20240608/6385347024512472057707840.jpg)
3、2.4G/5G /6G 解决方案-DR滤波器介绍(2.4G/5G /6G WiFi solution- DR Filter)
以下为2.4G/5G /6G 解决方案-DR滤波器型号和参数列表:
型号 | 频率范围 (MHz) | 描述 | 尺寸 (mm) | 备注 |
Part Number | Frequency Range (MHz) | Description | W Size (mm) | Remark |
WiFi7 DR filter | SJ5537A(ES) | 5150~5925 | +UNii4 | 9.36 | Qualcomm Pebble |
SJ6585A(ES) | 6045~7125 | clips 100MHz UNiS | 9.36 | Qualcomm Pebble |
SJ5492A | 5150~5835 | NO UNii4 | 9.36 | MTK Eagle, STD Full Band |
SJ6525A | 5925~7125 |
| 9.36 | MTK Eagle, STD Full Band |
SJ6535B | 5945-7125 |
| 9.36 | 55dB at 5835 |
SJ5532A | 5170~5895 | +UNii4 | 9.36 |
|
SJ6615A | 6105-7125 | clips 160MHz UNiS | 9.36 |
|
| 6095-7125 | 60dB at 5895 |
|
|
SJ5522C | 5150~5895 | +UNii4 (65dB@6095) | 9.36 | Netgear |
SJ6610A | 6095-7125 | clips 160MHz UNii5 (65dB@5895 | 9.36 | Netgear |
SJ5522B(ES) | 5150~5895 | +UNi4 (34dB@5955 | 9.36 | Cambium |
SJ6540B(ES) | 5955-7125 |
| 9.36 | Cambium |
SJ5522A(ES) | 5150~5895 | +UNi4 (48-50dB@5955) | 12.8 |
|
SJ6535A(ES) | 5945-7125 |
| 12.8 |
|
SJ5437A | 5150~5725 | -UNii3 -UNii4 | 9.36 | CE Band |
SJ6450A | 5925~6975 | -UNii8 | 9.36 | CE band |
Penta-Band 5G Hi/ Lo and 6G Hi/Lo DR | SJ5250A | 5170-5330 | 5GHz Lo Band | 9.36 |
|
SJ5662A | 5490~5815 | 5GHz Hi Band | 9.36 | BPF |
SJ5692A | 5490~5895 | 5GHz Hi Band | 9.36 | BPF |
SJ6185A | 5945~6525 | 6GHz Lo Band | 9.36 | BPF |
SJ6855A | 6585-7125 | 6GHz Hi Band | 9.36 |
|
WiFi 7 BAW | S5502D | 5170~5835 | No UNii4 | 1.8x1.6 | BAW, STD Full Band |
S6535D | 5495-7125 |
| 1.8x1.6 | BAW, STD Full Band |
2.4GHz BAW | S2442E | 2402.5~2481.5 | 2.4GHz Coexistence | 1.1x0.9 | BAW |
4、WiFi6、WiFi7等产品中用到的晶振介绍
在5G/6G WiFi解决方案中,TST( TAI-SAW,嘉硕科技)的晶振型号和参数列表如下:
MTK和Boracom方案中可能用到的TST( TAI-SAW,嘉硕科技)的晶振型号和参数列表:
| MTK | Boracom |
| Wi-Fi 6 | Wi-Fi 6e | Wi-Fi 7 | Wi-Fi 6 | Wi-Fi 6e | Wi-Fi 7 |
XO | - | - | - | - | - | - |
TCXO | - | - | - | - | - | - |
晶振 | TZ0356E TZ3451D | TZ0356E TZ3451D | TZ0356E TZ3451D TZ3071DAAA42 TZ3190BAAA42 | TZ3990AAAB42 | TZ3990AAAB42 | - |
QuaIcomm(高通)和Realtek方案中可能用到的TST( TAI-SAW,嘉硕科技)的晶振型号和参数列表:
| QuaIcomm | Realtek |
| Wi-Fi 6 | W-Fi 6e | Wi-Fi 7 | Wi-Fi 6 | Wi-Fi 6e | Wi-Fi 7 |
XO | - | - | - | - | - | - |
TCXO | - | - | - | - | - | TX1060BAAK72 |
晶振 | TZ3071B TZ3088A TZ3770AAAI82 | - | - | TZ3405D | TZ3405D | TZ4104CAAK42 |
TST( TAI-SAW,嘉硕科技)的晶振型号和参数列表如下:
型号 | 类别 | 中心频率 (MHz) | 负载电容 (PF) | 频率公差 工作温度 | 封装尺寸 (mm) | 应用领域 |
P/N | Type | Center Frequency (MHz) | Load Capacitance CL(PF) | Fo/T°C/ T°C Range | Package (mm) | Application |
TZ0356E | 晶振 | 40 | 11 | 7ppm/20ppm -20°C~+100°C | 3.2x2.5x0.7 | WiFi |
TZ3451D | 晶振 | 40 | 10 | 7ppm/15ppm -40°C~+105°C | 3.2x2.5x0.7 | WiFi |
TZ3071DAAA42 | 晶振 | 80 | 8 | 7ppm/20ppm -40°C~+105°C | 2.0x1.6x0.4 | Networking |
TZ3190BAAA42 | 晶振 |
|
| 7ppm/20ppm -40°C~+105°C | 2.0x1.6x0.4 | WiFi |
TZ3990AAAB42 | 晶振 |
|
| 7ppm/20ppm -40°C~+105°C | 2.0x1.6x0.4 | WiFi |
TZ3071B | 晶振 |
|
| 7ppm/20ppm -40°C~+105°C | 2.0x1.6x0.4 | WiFi |
TZ3088A | 晶振 | 96 | 9.9 | -30+/-12ppm/16ppm -40°C~+105°C | 2.0x1.6x0.4 | WiFi |
TZ3405D | 晶振 | 40 | 12 | 10ppm/20ppm -30°C~+105°C | 2.0x1.6x0.4 | WiFi |
TX1060BAAK72 | TCXO |
|
| 7ppm/20ppm -40°C~+105°C | 2.0x1.6x0.4 | WiFi |
5、WiFi标准情况介绍
| WiFi7 | WiFi 6E | WiFi 6 | WiFi5 |
发布日期 | 2024(预计) | 2021 | 2019 | 2013 |
IEEE标准 | 802.11be | 802.11ax | 802.11ax | 802.11ac |
最大数据速度 | 46Gbps | 9.6Gbps | 9.6 Gbps | 3.5Gbps |
频段 | 2.4GHz, 5GHz, 6GHz | 2.4GHz, 5GHz, 6GHz | 24GHz, 5GHz | 5GHz |
频道宽度 | 高达320MHz | 20, 40, 80, 80+80, 160MHz | 20, 40, 80, 80+80, 160MHz | 20, 40, 80, 80+80,160MHz |
调变 | 4096-QAM OFDMA(扩展) | 1024-QAM sOFDMA | 1024-QAM OFDMA | 256-QAM OFDM |
MIMO | 16x16UL/DL MU-MINO | 8x8 UL/DL M-MIMO | 8x8 UL/DL MU-MIMO | 4x4 MIMO DL MIMO |
RU | Multi-RUs | RU | RU |
|
MAC | MLO | / | / | / |
如需TST( TAI-SAW,嘉硕科技)以上滤波器和晶振相关产品规格书或者样品,请随时联系TST ( TAI-SAW,嘉硕科技)代理商-拓蒂电子,Tel: 021-52600150, 黄经理:13501997132(微信同号)。
